- Page 1 Versal AI Edge/Prime SOM Development Platform iW-RainboW-G57D Quick Start Guide...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any Product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent...
- Page 3 Introduction Quick Start Guide (QSG) This Quick Start Guide (QSG) is designed for users to quickly understand the iW-RainboW-G57D-Versal AI Edge/Prime SOM Development Platform and start the evaluation. It provides the instructions for setting-up the Development Platform from the packed box.
-
Page 4: Environmental Compliance
Safety Environmental Compliance i W - R a i n b o W - G 5 7 D - V e r s a l A I Edge/Prime SOM Development Platform is designed by using RoHS and REACH compliant components and manufactured on lead free production process. -
Page 5: Quick Start Steps
Quick Start Steps Step 1 - Unpacking Remove the Development platform from anti-static cover and place it above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Don't touch inside surface of the circuit board. Avoid using board in extreme dust, humidity and temperature conditions. -
Page 6: Step 2 - What's Inside The Box
Step 2 - What's Inside The Box ? Step 2 - What's Inside The Box ? Step 2 - What's Inside The Box ? Step 2 - What's Inside The Box ? Make sure that, below deliverables are received without any Make sure that, below deliverables are received without any Make sure that, below deliverables are received without any Make sure that, below deliverables are received without any... - Page 7 Step 3 - Download FTP Contents All the technical resources of iW-RainboW-G57D Versal AI Edge/Prime SOM Development platform is available in iWave FTP server. FTP Folder Structure iW-RainboW-G30D iW-RainboW-G57D Hardware Hardware Software+FPGA Datasheet VERSAL Name QuickStartGuide SOM Part Number SOM-Datasheet...
- Page 8 Step 4 - Read Documents Before moving to next step, one must go through all the documents including Hardware User Guides and get familiar about iW-RainboW-G57D Versal AI Edge/Prime SOM Development platform. Development Platform Documents: ■ Quick Start Guide (This document) ■...
-
Page 9: Top View

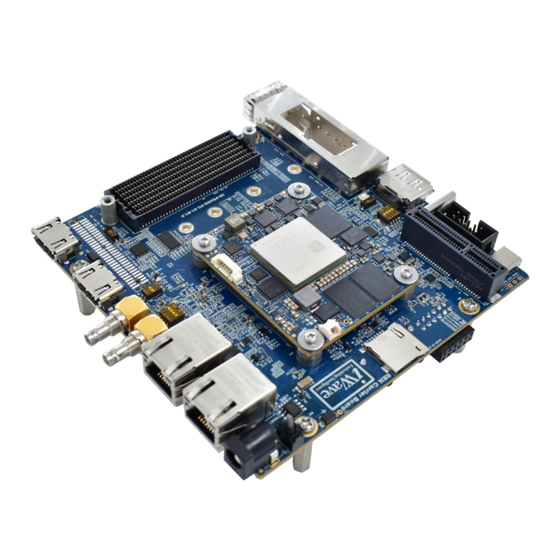

Step 5 -Quick View-SOM TOP View 1. Versal AI Edge/Prime SoC 2. 5V FAN Header 3. PMIC Programing Header 4. Board to Board connector 1 BOTTOM View 5. Board to Board connector 2... - Page 10 Step 6 - Quick View-Carrier Board TOP View 01. Board to Board Connector 1 02. Micro SD Connector 03. Board to Board Connector 2 04. Power ON/OFF Switch 05. Power IN Connector 06. GEM0 Ethernet MagJack 07. GEM1 Ethernet MagJack 08.
-
Page 11: Step 8 - Debug Port Setting
Step 8 - Debug Port Setting Connect TypeA end of USB cable to PC and Type-C end of USB cable to Development platform's Debug USB Type-C Port (J8) as shown below. Install the driver for Debug Port in Host PC/Laptop using the below link. - Page 12 1. Do not try to connect any other power supply other than supplied along with the Development platform. 2. Do not plug or remove the Versal AI Edge/Prime SOM from carrier board with live power. 3. Contact iWave if any LEDs are not glowing or SOM Error Out LEDs glowing.
- Page 13 Step 9 - Test Environment setup Once power is applied to the Development Platform as explained in the previous section, boot messages being displayed in the debug terminal of the PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots.
- Page 14 Heat Sink Heat Sink Integration iW-RainboW-G57D Versal AI Edge/Prime SOM Development platform comes with Heat Sink mounted on SOM. Makesure to power up the platform only with Heatsink attached. Below is the Heatsink integration procedure for reference. Heatsink Fix the heatsink in to SOM...
-
Page 15: Jtag Connection
JTAG Connection iW-RainboW-57D Versal AI Edge/Prime SOM Development Platform Support Single Type-C Connector (J8) for both JTAG programing and Debugging. Example JTAG Programming through Type-C Cable which is tested with this Platform is mentioned below. - Page 16 (11/17/19-EG) SOM Processor: Xilinx’s Zynq US+ MPSoC (11/17/19-EG) RAM: 4GB PS DDR4* 4GB Dual PL DDR4* Application: Video Surveillance, Cloud Computing, Artificial Intelligence/Machine Learning, 5G Wireless, High Precision Test Instrument. RAM size is expandable. Contact iWave team for further details...
-
Page 17: Need More Help
Contact iWave to enable Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For Warranty terms & Registration, scan the QR code or go to : https://www.iwavesystems.com/support/... - Page 18 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave USA 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
