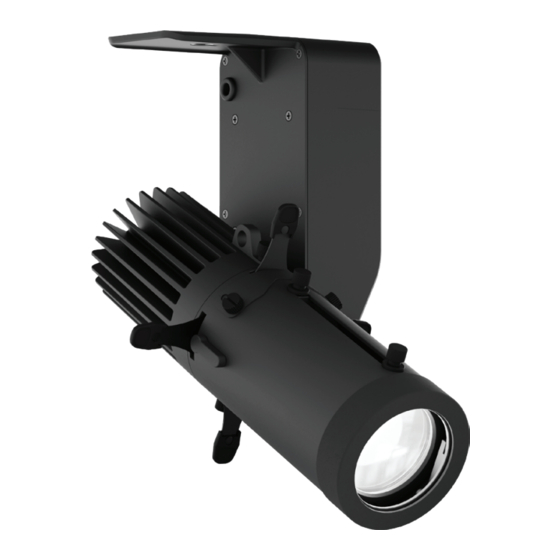

ProLights EclDisplay UN User Manual

ProLights EclDisplay UN User Manual

25w white led gallery light

Advertisement

Quick Links

EclDisplay UN
EclDisplay DAT
25W White LED Gallery light
USER MANUAL
English version
REV.01-02/21

Advertisement

Table of Contents
loading

Summary of Contents for ProLights EclDisplay UN

  • Page 1 EclDisplay UN EclDisplay DAT 25W White LED Gallery light USER MANUAL English version REV.01-02/21...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY...
  • Page 3 HALF SNOOT, FULL SNOOT (CODES ECLDISPHSNOOT, ECLDISPFSNOOT - OPTIONAL) ........................24 CEILING ADAPTER KIT (CODES ECLDISPCEILKIT, ECLDISPCEILFLG - OPTIONAL) ..25 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............28 VISUAL CHECK OF PRODUCT HOUSING ..............28 TROUBLESHOOTING ..................... 29 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD); • 2014/30/EU - Electromagnetic Compatibility (EMC); • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 7: Package Content

    • NASPW12SK315M: global Pulse Track clip wire suspension set 1.5m, 150N, white; • NASPW12SK35M: global Pulse Track clip wire suspension set 5m, 150N, white; • NASKB122/3: global Pulse Track Mounting Clamp for Rod and Wire, 200N, black/white. PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 8: Technical Drawing

    ECLDISPLAYUN with ECLDISPWASHL2550 184 mm [7.2 in] 268 mm [10.6 in] 160 mm [6.3 in] Weight: 2.18 kg - 4.80 lbs ECLDISPLAYUN with ECLDISPPRZL2040 Dimensions are in mm / in - Fig. 01 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 9 ECLDISPLAYDAT with ECLDISPWASHL2550 177 mm [7.0 in] 269 mm [10.6 in] 160 mm [6.3 in] Weight: 1.95 kg - 4.29 lbs ECLDISPLAYDAT with ECLDISPPRZL2040 Dimensions are in mm / in - Fig. 02 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 10: Tilt Range

    4 - TILT RANGE Fig. 03 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 11: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 clamp RSR Steel security cable Track system 37 [1.5] 87 [3.4] 4 [0.2] Ø14 [Ø0.5] 4 [0.2] Dimensions are in mm / in - Fig. 04 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 12: Connection To The Mains Supply

    ECLDISPLAYUN DMX- / DALI2 DMX+ / DALI1 SWITCH DALI DIMMER POWER / SIGNAL Press the top and bottom sides of the cage at the indicated point (1). Then remove it (2). Fig. 05 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 13 ECLDISPLAYDAT POWER SIGNAL DIMMER DALI GND DMX- DMX+ DALI2 DALI1 Press down on the sides of the cage (1). Then remove it (2). PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 14 Loosen and remove the marked four screws (2). Then remove the arm housing (3). Fig. 06 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 15: Product Overview

    4. OPTIC (accessory not included, in the figure ECLDISPWASHL1530); 5. RUBBER RING (accessory included in the optic box); 6. PLASTIC CAP for access to connections; 7. KNOB dimming; 8. LOCK TILT; 9. PLASTIC ARM COVER. Fig. 07 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 16 The control with higher priority defines the maximum dimming level of the successive inputs. There is an dip switch to rapidly change between DALI or DMX (though DMX is set as default). Phase-Cut Dimming (UN) Knob Dimming DMX / DALI Fig. 08 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 17: Rdm Functions

    0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 SOFTWARE_VERSION_LABEL 0x00C0 DMX512 DMX_PERSONALITY* 0x00E0 Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS* 0x00F0 Dimmer DIMMER_INFO 0x0340 Settings CURVE* 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME* 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY* 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 18 POWER CONSUMPTION:AC~220V 0x82DE MAINTENANCE TIME:ALERT PERIOD 0x82DF MAINTENANCE TIME:ELAPSED TIME 0x82E0 CLEAN ALL DATA 0:NO,1:YES 0x82C8 NOTE: for the functions marked with a final asterisk (*) refer to the tables on the following page. PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 19 (ALERT PERIOD:10 ÷ 300) MAINTENANCE TIME To set maintenance time alert period MAINTENANCE TIME (ELAPSED TIME:00-ALERT PERIOD) Shows elapsed tiime to alert period. 0:NO 10 CLEAN ALL DATA Complete reset of the fixture. 1:YES PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 20: Dmx Charts

    034 ÷ 035 DMX FAULT HOLD 036 ÷ 037 DMX FAULT BLACKOUT 038 ÷ 039 DMX FAULT STAND ALONE 040 ÷ 041 Reserved 042 ÷ 253 FACTORY DEFAULT OF CONTROL 254 ÷ 255 FUNCTIONS PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 21: Accessories Installation

    Loosen the two marked knob of the ECLDISPLAY. Insert the optic (2-A) and rotate it (2-B) so the marked grooves (3) of the optic coincides with the four marked flaps of the unit (4). PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 22 The marked lever in position A allows the locking of the blades. Rotating the lever to position B or C allows the release of the blades. This operation must be repeated for both levers on the frame system. Fig. 09 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 23 (3). Insert the holder from above throught the track Move the marked rod down (6). (4). Then insert the barn door (5). Fig. 10 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 24 ANTI-GLARE LOUVRE (CODE ECLDISPLOUVRE - OPTIONAL) Anti-glare louvre Rubber ring Insert the anti-glare louvre into the rubber ring. Mount the anti-glare louvre with the rubber ring on the optic. Fig. 11 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 25 GOBO HOLDER (CODE ECLDISPGOBOHIND - OPTIONAL) Loosen the two marked knob of the optic (1). Then move the cap (2). Insert the gobo holder into the slot provided on the optic. Fig. 12 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 26 Loosen the three marked knob. Insert the half snoot on the optic and tighten the knobs in the egraved ring. Loosen the three marked knob. Insert the full snoot on the optic and tighten the knobs in the egraved ring. Fig. 13 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 27 100 mm 35 mm [1.4 in] [3.9 in] [9.1 in] [3.9 in] [1.4 in] 110 mm [4.3 in] Ø200 mm [7.9 in] Measurements for cuts on the panels (1) and of the ECLDISPCEILFLG (2). PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 28 Mount the marked ceiling adapter kit on the ceiling by tightening the screws in the marked points (4). Fit the M6 screw to fix the projector (placed upside down) in the holes provided in the back housing (see detail). Fit the M4 screw to lock rotation. PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 29 (6). Tighten the M4 screw (6) to lock the vertical movement of the plate. Mount the flange tightening the two marked screws (7) to complete the ceiling adapter kit. Fig. 14 PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 30: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
  • Page 31: Troubleshooting

    • Dirty or damaged filters • Install lens assembly properly. Contact an authorized service center in case of technical problems or not reported in the table can not be resolved by the procedure given in the table. PROLIGHTS - EclDisplay UN - EclDisplay DAT...
  • Page 32 Note...
  • Page 33 Note...
  • Page 34 Note...
  • Page 36 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
