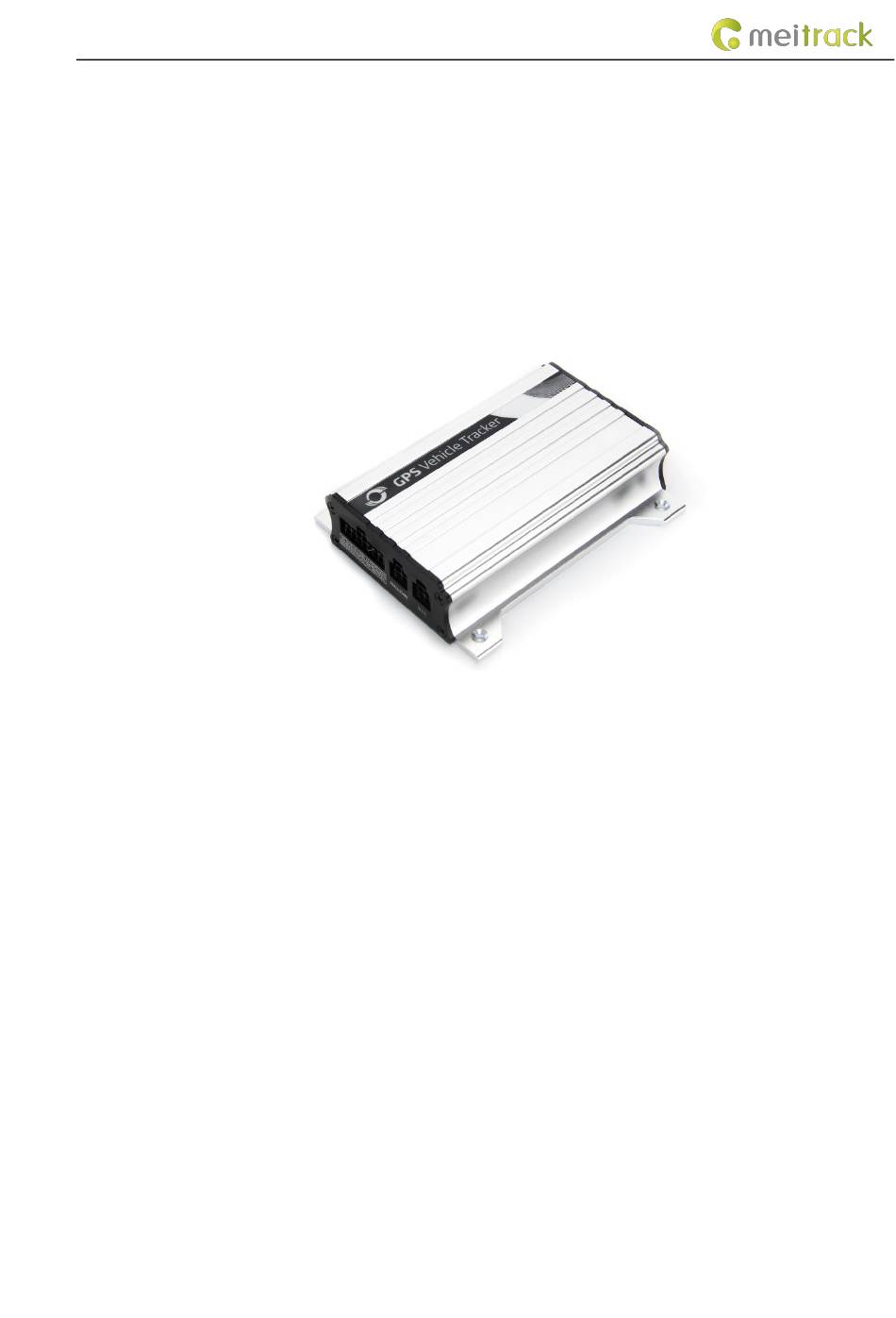

- Page 1 MEITRACK T622 Series User Guide MEITRACK T622 Series User Guide...
- Page 2 MEITRACK T622 Series User Guide Change History File Name MEITRACK T622 Series User Guide Project T622/T622G/T622E Creation Date 2015-09-30 Update Date 2021-02-03 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2021 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
3.1 Installing the SIM Card ..............................- 12 - 3.2 Charging the Device ................................- 12 - 3.3 Configuring Device Parameters by Meitrack Manager .....................- 12 - 3.4 Installing GPS and GSM Antennas .............................- 13 - 3.5 Device Connection Diagram..............................- 14 - 3.6 Mounting the Tracker ...............................- 15 -... -
Page 4: Copyright And Disclaimer
2.1 Product Overview The T622 series includes 3 device models: T622, T622G, T622E, distinguishing 2G, 3G, LTE CAT M1 & CAT NB1 network versions. With CANBUS function that supports FMS (Fleet Management System) protocol, and can support accessories such as: iButton, Garmin navigation screen and LLS fuel sensor. -
Page 5: Monitoring
After the device is connected to a Garmin navigator, the GPS navigation, information dispatching, and location query functions become available. The device can connect to the Garmin navigator which supports FMI protocol V2.5 or later, and you must Copyright © 2021 Meitrack Group All rights reserved. - 5 -... -
Page 6: Harsh Acceleration/Braking Alarm
Note: The alarm results vary according to the device installation, vehicle model, vehicle weight, and driving behaviors. After the device has been installed properly, you can use the Meitrack Manager software to adjust the harsh acceleration and braking alarm values by every 10 mG. You can also use the D78 command to set the values. -
Page 7: Gps Data Filtering
The GPS data filtering function can ensure GPS data accuracy and eliminate static drift. You can set the following parameters by Meitrack Manager: GPS speed range, GPS positioning accuracy, and Number of GPS satellites. When the GPS data filtering function is enabled, if all conditions are met, GPS data will be updated. Otherwise, GPS data will be invalid. -
Page 8: Specifications
3 digital inputs (1 negative trigger, 1 positive trigger, and 1 positive/negative selectable trigger) 2 analog detection inputs 2 outputs 1 RS232 EXT port 1 RS232/485 port 1 USB port 1 digital sensor port 1 CAN bus interface Copyright © 2021 Meitrack Group All rights reserved. - 8 -... -
Page 9: Tracker And Accessories

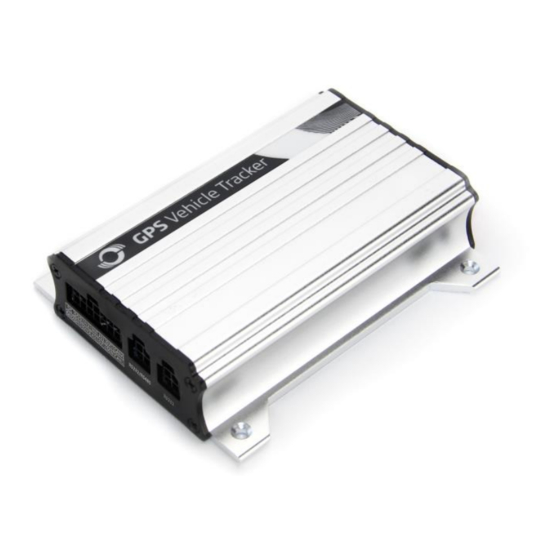

A52 digital temperature sensor + A61 sensor box ⚫ RFID reader ⚫ navigator Garmin ⚫ Camera ⚫ A76 ultrasonic fuel level sensor ⚫ Liquid level sensor (LLS) sensor 2.6 About the T622 device 2.6.1 Appearance Copyright © 2021 Meitrack Group All rights reserved. - 9 -... -
Page 10: Led Indicator
Digital input 1, negative trigger (SOS button by default) 4 (GND) Black Ground wire, connected to input 1 (SOS button) 5 (Input 2) White Digital input 2. Positive trigger by default. You can switch to negative trigger. Copyright © 2021 Meitrack Group All rights reserved. - 10 -... - Page 11 Otherwise, the device may be damaged. 13 (CANH) Orange and white Used to connect a CAN bus peripheral. 14 (CANL) Orange Used to connect a CAN bus peripheral. Copyright © 2021 Meitrack Group All rights reserved. - 11 -...
-
Page 12: First Use
The device can be installed on a vehicle only after it is configured and tested. 3.3 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Procedure: Copyright © 2021 Meitrack Group All rights reserved. -
Page 13: Installing Gps And Gsm Antennas
Connect the device to a computer by using the USB-to-serial cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. -
Page 14: Device Connection Diagram
MEITRACK T622 Series User Guide 3.5 Device Connection Diagram Copyright © 2021 Meitrack Group All rights reserved. - 14 -... -
Page 15: Mounting The Tracker
Click the SMS link. The device's location will be displayed on Google Maps on your mobile phone. Note: Ensure that the device's SIM card number has subscribed the caller ID service. Otherwise, the tracking function by mobile phone will be unavailable. Copyright © 2021 Meitrack Group All rights reserved. - 15 -... - Page 16 GPRS reaches the normal level. 0Km/h Indicates the speed. Unit: km/h Indicates the remaining battery power. None http://maps.meigps.co Indicates the map link. None m/?lat=22.513781&lng Latitude: 22.513781 =114.057183 Longitude: 114.057183 Copyright © 2021 Meitrack Group All rights reserved. - 16 -...
-
Page 17: Common Sms Commands
Note: In any condition, you can use an SMS command to disable the sleep mode, and then the tracker exits the sleep mode and returns back to the normal working mode. Copyright © 2021 Meitrack Group All rights reserved. - 17 -... -
Page 18: Setting Gps Data Filtering - D71
Configure output triggering according to your requirements. The low level is output by default. The PWM duty cycle and period are available for PWM wave output only. Example: Sending: 0000,D72,1,0,0 Reply: 353358017784062,D72,OK 3.8.5 Allocating GPRS Cache and GPS Log Storage Space – D73 SMS sending: 0000,D73,X,Y Copyright © 2021 Meitrack Group All rights reserved. - 18 -... -
Page 19: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").
