Summary of Contents for MeiTrack Mobileye T622

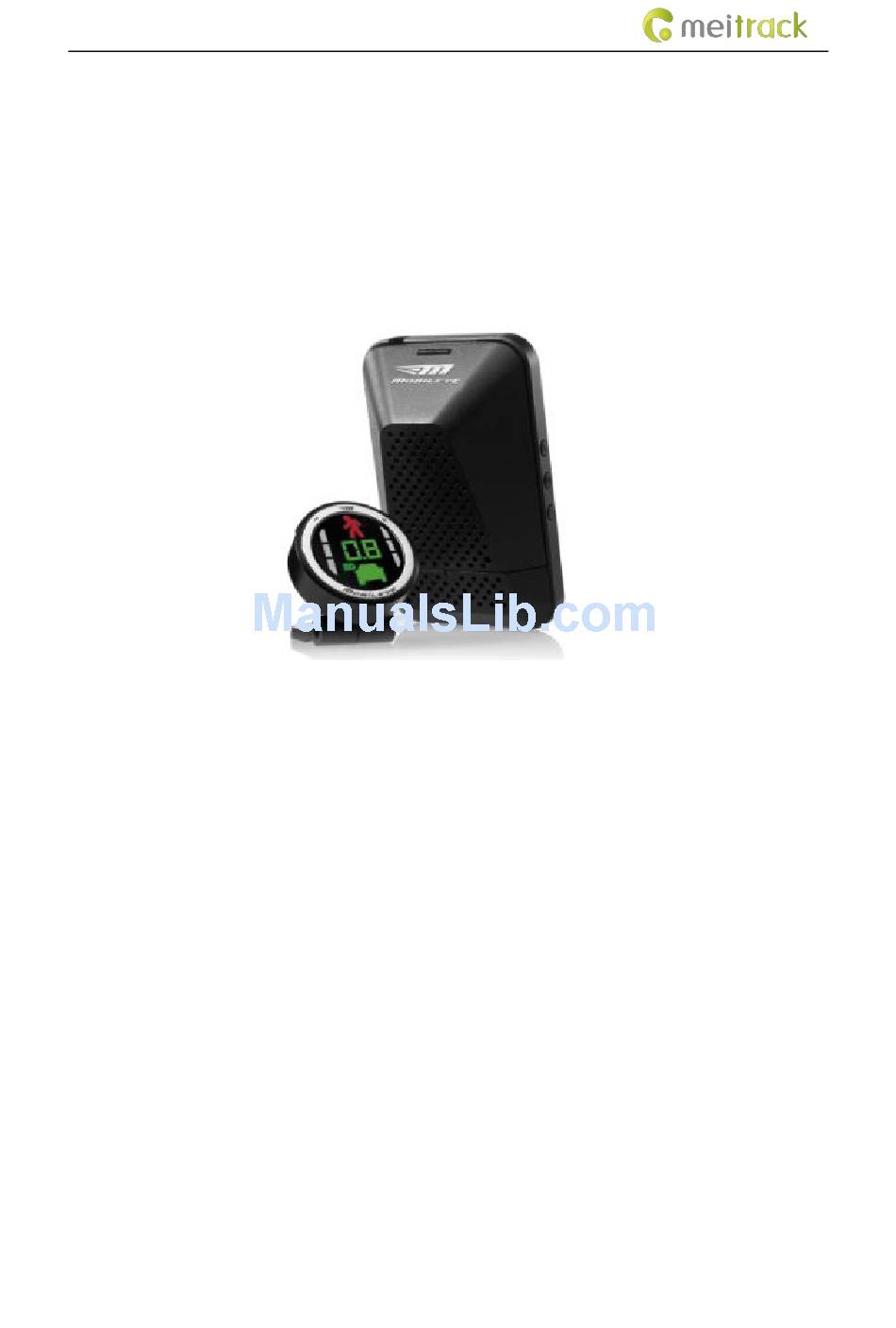

  • Page 1 Mobileye User Guide Mobileye User Guide Applicable Model: T622/T622G...
  • Page 2 Change History File Name Mobileye User Guide Created By Paco Zeng Project T622/T622G Creation Date 2016-09-23 Update Date 2018-01-04 Subproject Accessory User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -...
  • Page 3 5.3.1.3 Alert Event Statistics Pie Chart ....................- 10 - 5.3.1.4 Alert Event Statistics per 100 km/h ..................- 11 - 5.3.2 Driving Risk Assessment Report ......................- 11 - Copyright © 2018 Meitrack Group All rights reserved. - 3 -...
  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
  • Page 5 2. The SLI is functional when the vehicle's speed exceeds the posted speed limit sign. Copyright © 2018 Meitrack Group All rights reserved. - 5 -...
  • Page 6: Main Device And Accessories

    Mobileye User Guide 3 Main Device and Accessories Windscreen-mounted vision sensor EyeWatch display E-BOX CAN sensor E-BOX I/O cable E-BOX connection cable Copyright © 2018 Meitrack Group All rights reserved. - 6 -...
  • Page 7: Installation

    Function Orange Vehicle speed signal White High beam signal Purple Braking signal Green Left turn signal Yellow/Black Output 1 Grey Windscreen wiper Orange/Black Output 2 Yellow Right turn signal Copyright © 2018 Meitrack Group All rights reserved. - 7 -...
  • Page 8: Actual Product Connection Figure

    On the MS03 tracking platform, there are 5 types of Mobileye alert events: sharp turn to the left/right, speeding, collision with a vehicle, collision with a pedestrian and headway too close. Copyright © 2018 Meitrack Group All rights reserved. - 8 -...
  • Page 9: How To View Mobileye Reports

    5.3.1 Driving Risk Report The driving risk report includes:  Raw data report  Fleet driving risk comparison report  Alert event statistics pie chart  Alert event statistics per 100 km/h Copyright © 2018 Meitrack Group All rights reserved. - 9 -...
  • Page 10: Raw Data Report

    This report shows the percentage of alert events for a specific driver during a specific time period. From the following figure, the percentage of speeding alerts is the highest. Copyright © 2018 Meitrack Group All rights reserved. - 10 -...
  • Page 11: Alert Event Statistics Per 100 Km/H

    There are 3 types of driving risk assessment: risk higher than fleet average level, risk equal to fleet average level and risk lower than fleet average level. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2018 Meitrack Group All rights reserved.
