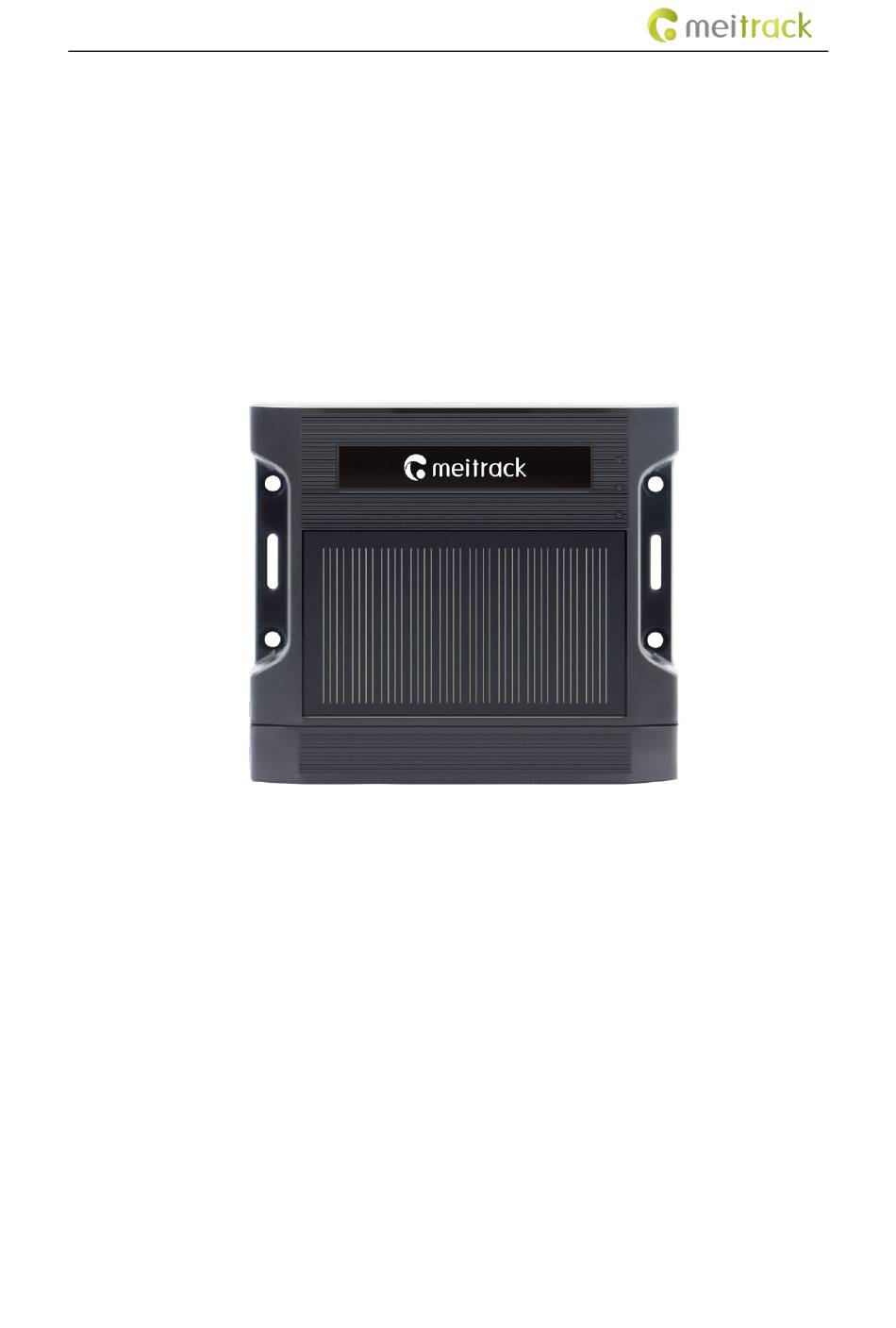

- Page 1 MEITRACK TA255 series Solar Asset Tracker User Guide MEITRACK TA255 series Solar Asset Tracker User Guide...
- Page 2 The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
-
Page 3: Table Of Contents
7.3 Turning on TA255L ............................- 15 - 7.4 Configuring Device Parameters ........................- 16 - 7.4.1 Configuring Device Parameters by Using Meitrack Manager ............. - 16 - 7.4.2 Configuring by Bluetooth Configuration Tool-MT Manager+ ............. - 18 - 7.4.3 Configuring Device Parameters by Using SMS ................... - 20 - 7.4.4 Configuring Device Parameters by Using FOTA Manager Platform ............ -
Page 4: Product Introduction
1 Product Introduction The TA255 series of products is a new solar asset tracker developed in 2022 by Meitrack. It is mainly used to track goods, valuables, equipment, and other assets. You can attach the tracker to a shelf or the body of a truck with magnets. If the tracker drops, a drop alert is generated. - Page 5 MEITRACK TA255 series of products Solar Asset Tracker User Guide GNSS Supports GPS,BD, and Glonass；supports dual-mode combination GPS mode configuration. Support LBS+WIFI assisted positioning. Positioning accuracy 2.5M Tracking sensitivity -162dBm GSM/GPS antenna GSM(Internal FPC antenna) ,GPS(Internal ceramic antenna). Bluetooth Specification Compliant with Bluetooth 5.0/4.2 specification.
-
Page 6: Main Device And Accessories
MEITRACK TA255 series of products Solar Asset Tracker User Guide Harsh cornering detection. Harsh acceleration and braking detection. Real-time location query, tracking by time interval, or tracking by distance .Time Synchronization GNSS , NITZ firmware u pdate FOTA, USB upgraded... -
Page 7: Product Kit 3
MEITRACK TA255 series of products Solar Asset Tracker User Guide 3.1.2 Product Kit 2 Product Kit 2 Specifications TA255L tracker (excluding batteries) Tracker + Battery box 1+ Magnetic suction charging cover (3,200 mAh x 4 = 12,800 mAh) Magnetic charging cable Magnetic suction charging cover 165.1 mm ×... - Page 8 MEITRACK TA255 series of products Solar Asset Tracker User Guide Product Kit 3 Specifications TA255L tracker (excluding batteries) Tracker + Battery box 2+ Magnetic suction charging cover (3,200 mAh x 7= 22,400 mAh) Magnetic charging cable Magnetic suction charging cover 246.9 mm ×...
-
Page 9: Optional Accessory
MEITRACK TA255 series of products Solar Asset Tracker User Guide 3.1.5 Product Kit 5 Product Kit 5 Specifications TA255L tracker (excluding batteries) Tracker + Battery box 1 + power cover (3,200 mAh x 4 = 12,800 mAh) I/O cable 0.5 meters power cover Battery box 1 170.2 mm ×... - Page 10 MEITRACK TA255 series of products Solar Asset Tracker User Guide TA255 magnet kit TA255 magnet installation kit Screws are included. A TA255 magnet kit includes four Magnets are excluded. A TA255 magnet installation magnets, four screws, four nuts, and a piece of EVA kit includes four screws, four nuts, and a piece of foam.
-
Page 11: Product Panel
MEITRACK TA255 series of products Solar Asset Tracker User Guide 4 Product Panel LED indicator Drop detection solar panel （(Front of the tracker)） (Rear of the tracker)） Charging LED indicator (Rear of the battery box) 5 Charging mode and charging time... -
Page 12: Charging Mode And Charging Time Led Indicator
MEITRACK TA255 series of products Solar Asset Tracker User Guide charging time Charging time of the tracker: 6–7 hours Charging time of the tracker and battery box 1: 13–15 hours Charging time of the tracker and battery box 2: 13–15 hours Note: If the battery power is low, it may affect positioning and data transmission of the tracker. -
Page 13: First Use
MEITRACK TA255 series of products Solar Asset Tracker User Guide Blink slowly (1 second on and 2 The GPS is invalid. seconds off) Blink fast (0.1 seconds on and 2.9 A GPS signal is received. seconds off) Network status LED indicator (green) Description Blink fast (once every 0.1 seconds) -
Page 14: Installing Product Kit
MEITRACK TA255 series of products Solar Asset Tracker User Guide 7.2 Installing Product Kit In this section, the product kit "Tracker + Battery box 1 + Magnetic suction charging cover " is used as an example. Fasten the battery box to the tracker 1.Align the battery box with the tracker and fasten the... -
Page 15: Turning On Ta255L
MEITRACK TA255 series of products Solar Asset Tracker User Guide Install magnets. 1. Align magnets with the battery box, as shown in the figure on the right. 2. Align screws with nuts and fasten the screws, as shown in the figure on the right. -
Page 16: Configuring Device Parameters
USB cable provided by Meitrack. 2.Installing the USB Driver Before you use Meitrack Manager, install the USB driver and Meitrack Manager first. (If the operating system of your computer is Windows 10/11, the USB driver maybe already exists.) Right-click My Computer, select Manage, and view Device Manager. - Page 17 Turn on the device, and connect it to the computer by using the USB cable. c) If Get device setting succeed! is displayed in the lower left corner of the window, Meitrack Manager is run successfully.
-
Page 18: Configuring By Bluetooth Configuration Tool-Mt Manager
MEITRACK TA255 series of products Solar Asset Tracker User Guide 5.Configuring GPRS Parameters Please follow the following steps to set: ① Click "Tracking" to open GPRS Tracking setting parameters. ② GPRS: Select TCP. ③ IP/Domain: Select (U.S.A): 67.203.15.7. ④ The Meitrack server port is 10003. - Page 19 MEITRACK TA255 series of products Solar Asset Tracker User Guide below, click the “Bluetooth connection” to enter device list. Note: If TA255L cannot be found through search, please make sure that the device is powered on and broadcasting mode is set.
-
Page 20: Configuring Device Parameters By Using Sms
FOTA is enabled. (You can use your MS03 account to log in to the FOTA Manager platform, or you apply to Meitrack for a login account.) For more information about the FOTA Manager platform, see the MEITRACK FOTA Manager User Guide. Copyright © Meitrack Group 2023. All rights reserved. -
Page 21: Ms03 Platform
MEITRACK TA255 series of products Solar Asset Tracker User Guide 8 MS03 Platform 1.Visit http://ms03.trackingmate.com , enter the 2.On the main interface, choose Management. Select Account & Tracker from Use Normal. user name and password, and log in to the MS03. -
Page 22: Installing The Tracker
MEITRACK TA255 series of products Solar Asset Tracker User Guide 5.Check the device online The icon turns green. TA255 is online successfully. Note: The MS03 platform supports the following functions. Track by time interval or distance. Query historical trips. -
Page 23: I/O Cable Installation(Only Applicable To Product Kit 4/5)
MEITRACK TA255 series of products Solar Asset Tracker User Guide fingers, as shown in the following figure. The following figure shows how to install the tracker onto a truck: 9.2 I/O Cable Installation(Only applicable to Product Kit 4/5) Power Input 1... - Page 24 MEITRACK TA255 series of products Solar Asset Tracker User Guide Positive charge of the power input. Connect to the positive charge of the 1 (Power +) vehicle battery. Input voltage: 11.4–60 V. 12 V or 24 V is recommended. Ground wire. Connect to the negative charge of the vehicle battery or to...
-
Page 25: Wiring
Incompatible accessories may result in equipment damage or personal injury. Operate and handle the battery and charger carefully. Only batteries and chargers specified by Meitrack can be used. Incompatible batteries and chargers may result in equipment damage or severe personal injury.
