- Page 1 MEITRACK T633G User Guide MEITRACK T633G User Guide...
- Page 2 MEITRACK T633G User Guide Project T633G Creation Date 2019-01-10 Update Date 2019-05-06 Subproject User Guide Total Pages Hardware V1.2 Software version V202 or later version Version V1.0 Confidential External Documentation Copyright © 2019 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.2 Charging the Device ............................- 9 - 6.3 LED Indicator ..............................- 9 - 6.4 Configuring Device Parameters by Meitrack Manager ................. - 9 - 6.5 Tracking by Mobile Phone ..........................- 9 - 6.6 Common SMS Commands .......................... - 11 - 6.6.1 Setting the Speeding Alert –... -
Page 4: Copyright And Disclaimer

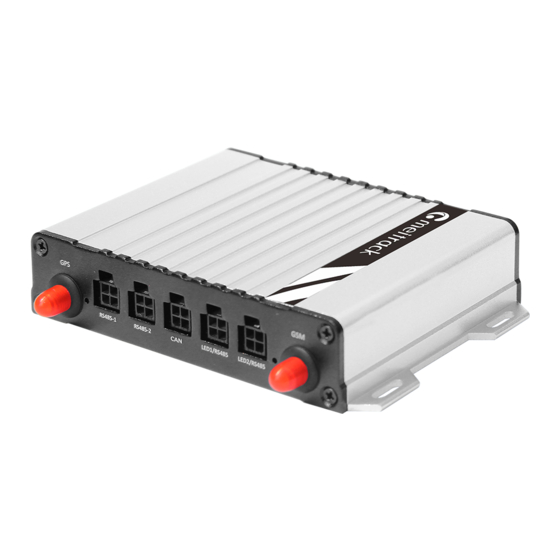

2 Product Introduction The T633G is a brand new 3G vehicle tracker specially designed for Thailand DLT project. This unit can connect to multiple accessories: magnetic card reader, camera and LED display. In addition, it supports driving behavior analysis, fuel level monitoring and temperature monitoring and its performance has been significantly improved. -
Page 5: Product Functions And Specifications
Built-in 8 MB buffer for recording driving routes (Store 4,096 GPRS cache records, 256 SMS cache records, and 65,536 GPS logs) Mileage report Low power alert for internal battery Build-in 3-axis accelerometer Over-the-Air (OTA) update Copyright © 2019 Meitrack Group All rights reserved. - 5 -... -
Page 6: Functions Of Optional Accessories
3-axis accelerometer (used to wake the device up by vibration and detect towing alerts) Frequency band T633G-E: UMTS/HSDPA: 900/2100 MHz GSM/GPRS: 900/1800 MHz T633G-A: UMTS/HSDPA: 850/1900 MHz GSM/GPRS: 850/900/1800/1900 MHz T633G-T: UMTS/HSDPA: 850/2100 MHz GSM: 850/900/1800/1900 MHz Copyright © 2019 Meitrack Group All rights reserved. - 6 -... -
Page 7: T633G And Accessories
A52 digital temperature sensor RFID reader Magnetic card reader Buzzer Camera LED display Digital LED display Speaker and microphone A21 LCD display Copyright © 2019 Meitrack Group All rights reserved. - 7 -... -
Page 8: Appearance
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to call the device. Copyright © 2019 Meitrack Group All rights reserved. - 8 -... -
Page 9: Charging The Device
No base station signal is received. 6.4 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager (version 6.0.0.11 or later) to configure the device on a computer. Procedure: Install the USB driver and Meitrack Manager. - Page 10 If the value is greater than 12, GPRS reaches the normal level. 0Km/h Indicates the speed. Unit: km/h Indicates the remaining battery power. None http://maps.meigps.c Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 Copyright © 2019 Meitrack Group All rights reserved. - 10 -...
-
Page 11: Common Sms Commands
If you want to read idling parameters, send 0000,B14. Example: Sending: 0000,B14,180,5,120 Reply: 353358017784062,B14,OK 6.6.3 Setting Fatigue Driving – B15 SMS sending: 0000,B15,Consecutive driving time,Alert time,ACC off time SMS reply: IMEI,B15,OK Copyright © 2019 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting The Driving License Type - C50
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 13: Installing The T633G
Send commands in batches. Support OTA updates. For details, see the MEITRACK GPS Tracking System MS03 User Guide. 8 Installing the T633G 8.1 Installing GPS and 3G Antennas Connect the 3G antenna to the connector which is labeled "GSM". The 3G antenna is non-directional, so you can hide it in any place of a vehicle. - Page 14 The port can be set to positive or negative input 7. 11 (Output 2) Yellow Output 2 & Valid: low level (0 V) brown Invalid: open collector Copyright © 2019 Meitrack Group All rights reserved. - 14 -...
-
Page 15: Power Cable/Ground Wire (Pin 1/2)
ON. If input 3 is connected to the "Start" position, after the engine is started, the platform will read it as OFF-ON-OFF. If installed correctly, after the engine is started, the platform will read it as OFF-ON. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2019 Meitrack Group All rights reserved.
