T200 User's Manual
SECTION 3: WIRING AND INSTALLATION
3.13.3 T200-610 and T200-710 External Regeneration Resistor Connection
MOOG offers four different regen options for the T200-610/710- Figures 3.28 ...3.31 show the different options. Table
3.6 outlines the external resistor' s Moog part numbers and wire gauge to be used when connecting these resistors.
The user need to calculate the application dependent regen power and select one of the options accordingly. Options 1..3
are available in the US option 4 is available in Europe. In case of option 4 only one regen resistor can be used if the max.
continuous regen power do not exceed 1kW.

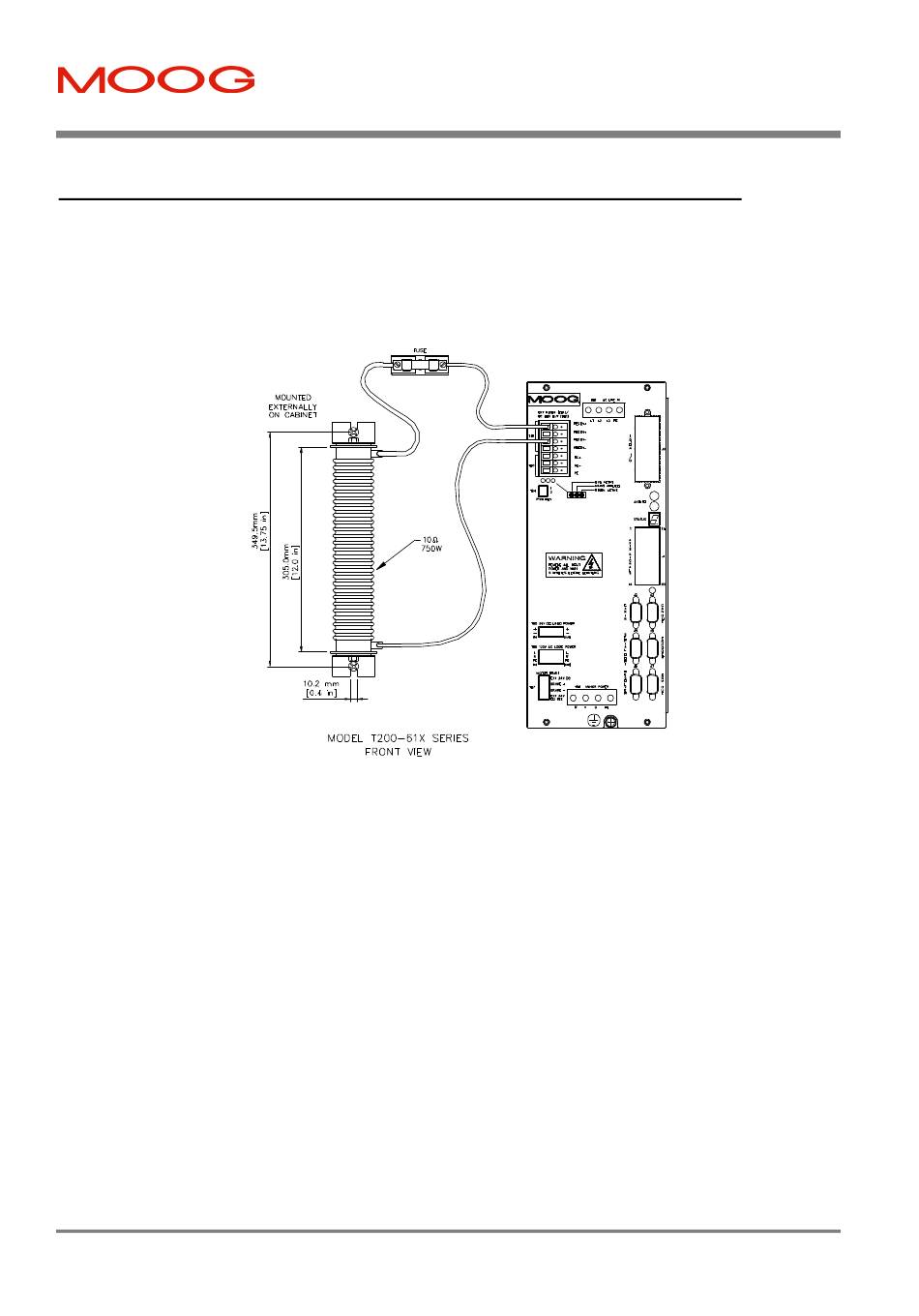

Figure 3.28:- T200-610 and T200-710: 600W Regeneration Resistor Option 1 – C22654-007 (Mounting and
Connection)
PAGE 3-52
