Install the Access Point
2. Align the circular holes on one end of the KT-150173-01 extension arm against the large holes on the
1-axis tilt part.

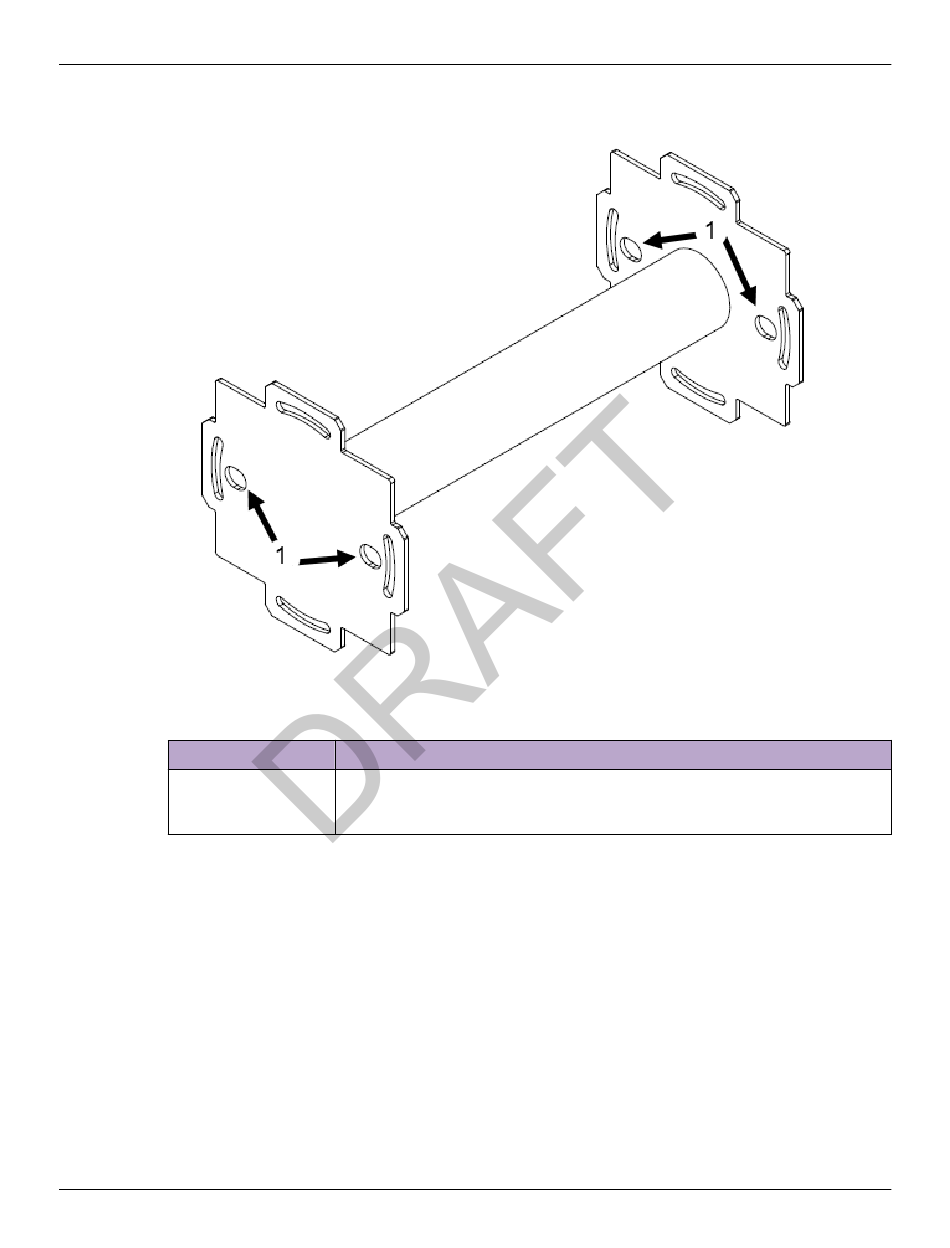

Figure 15: Circular holes on the KT-150173-01 extension arm
Callout
1
3. Attach the KT-150173-01 extension arm to the 1-axis tilt part by using two hex-head M12 stainless-
steel screws and two hex-head M12 stainless-steel nuts.
4. Attach the KT-147407-02 pole part to the other end of the KT-150173-01 extension arm using two
M12 screws and M12 hex-nuts.
5. Insert the 0.5 in. (12.7 mm) wide stainless-steel cable clamps through the long slots on the sides of
the KT-147407-02 pole part.
6. Position and insert the ends of the cable clamps around the pole.
7. Tighten the clamp screws to a torque of 11 in-lbs.
Description
Circular holes on the KT-150173-01 extension arm that is used to attach to the
KT-147407-02 1-axis tilt part, to attach to the wall, and to KT-147407-02 pole
part.
Attach the Access Point to a Pole Using the
KT-147407-02 Bracket Parts and the KT-150173-01
ExtremeWireless™ AP360i/e Access Points
Extension Arm
