Install the Access Point on a Flat Surface Using the
MBO-ART02 Articulating Mounting Bracket
Procedure
1. Using the shorter end of the MBO-ART02 bracket end as a template, mark and drill four holes on the
wall.

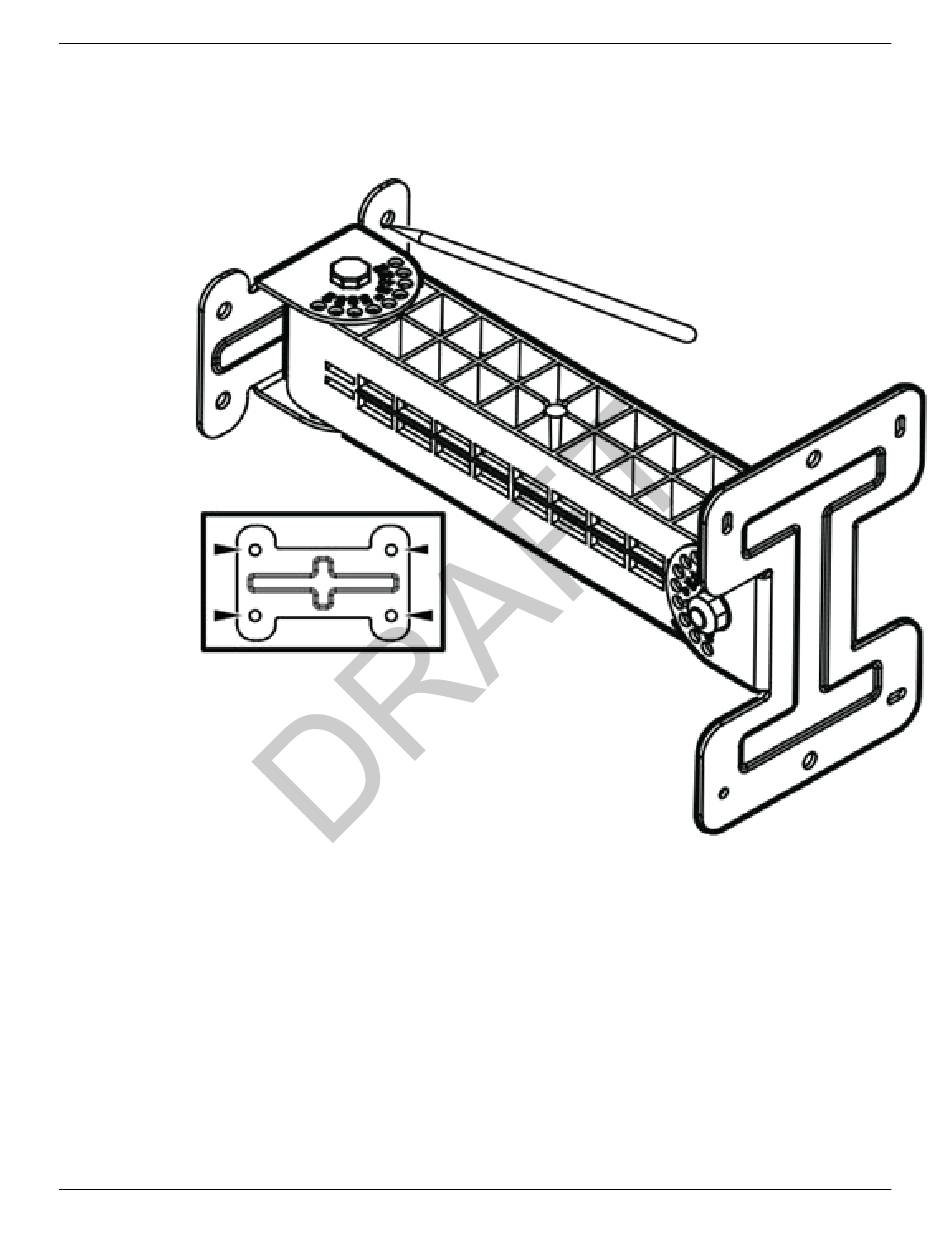

Figure 7: MBO-ART02 articulating mounting bracket template for wall attachment
holes
2. Using two M6 hex-head screws, attach the MBO-ART02 articulating mounting bracket to the access
point.
3. Align the MBO-ART02 articulating mounting bracket holes against the wall attachment holes and
attach the bracket using four M6 hex-head screws.
