9 Packaging

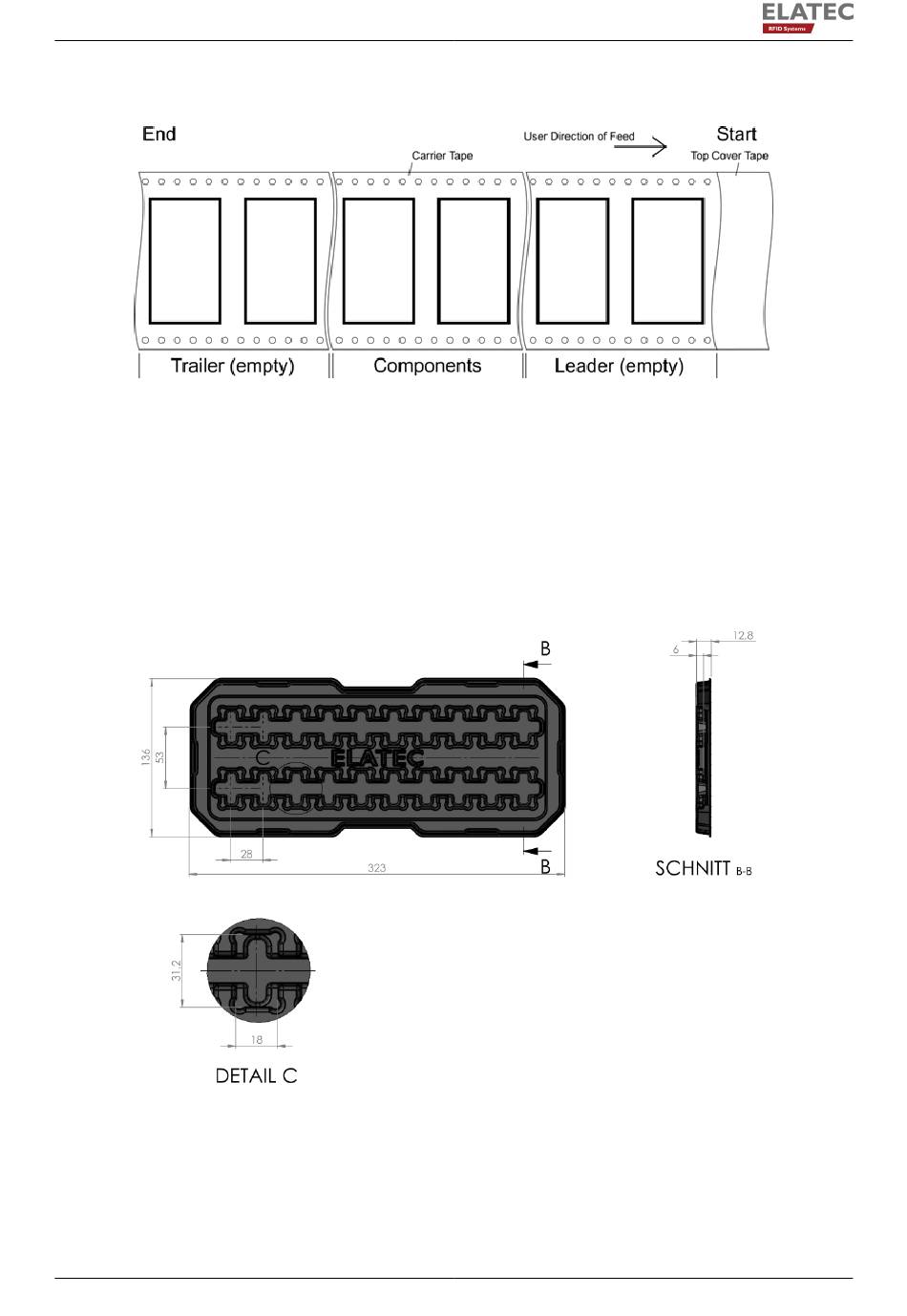

9.1.1 Dimensions of Tape Leader & Trailer
• Start: Top Cover Tape 1x circumference plus 100mm (minimum 300mm)
• Leader: 10 pitch (minimum 100mm)
• Components: area with packed modules
• Trailer: 1 x circumference (minimum 160mm)
9.2 Tray
9.3 Package
A moisture barrier bag (MBB) is used to pack the reel or tray (size of MBB according to reel / tray dimen-
sion)
Page 26 of 30
