8 Additional Hardware Requirements

8.3.3 Connection to the BGM Module

8.3.3.1 Debug Connector of Development Kit

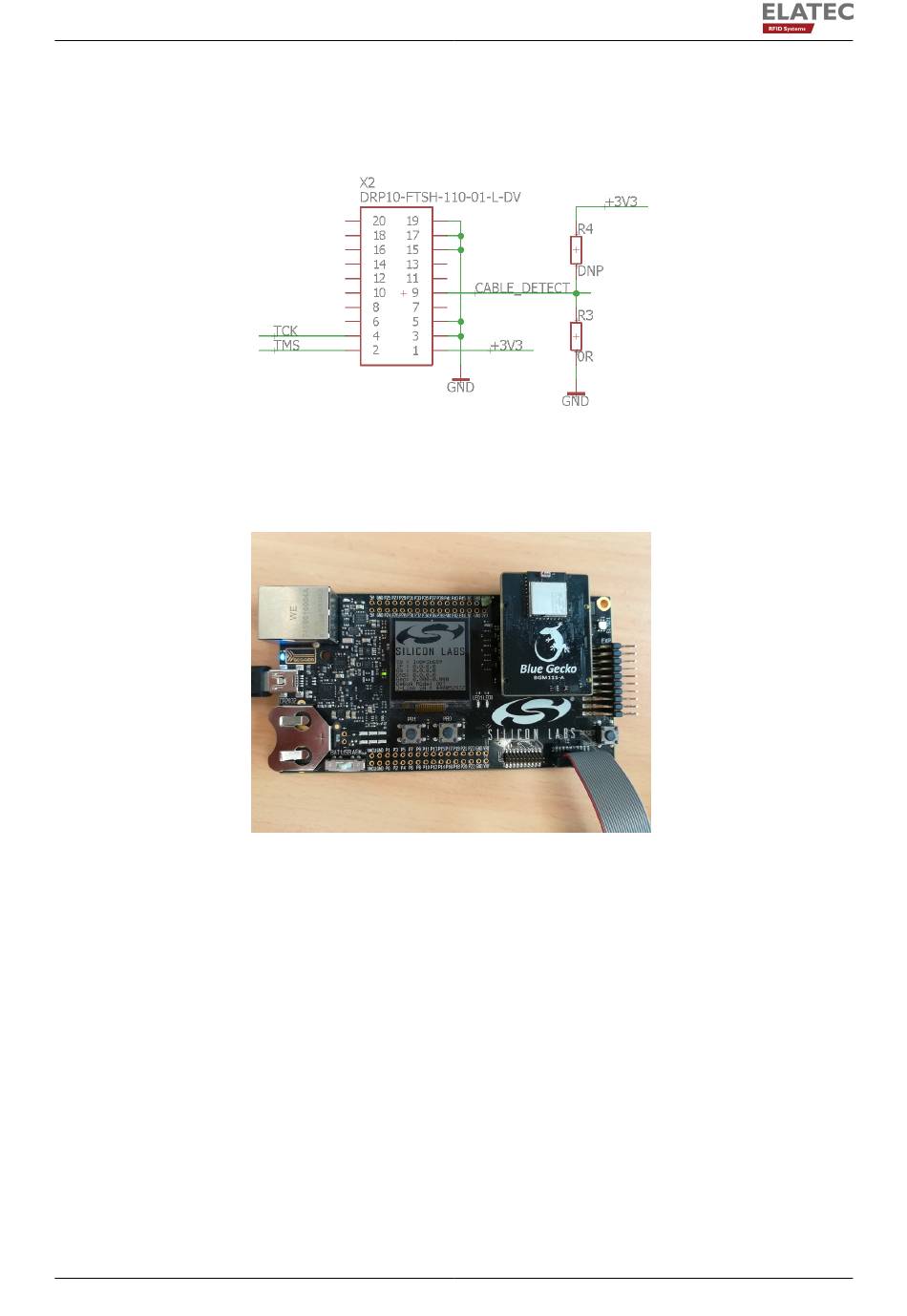

The BGM Module must be connected to the Starter Kit SLWSTK6101C: Connect GND, TMS and TCK to
the BGM Module. Note: Pin 9 of the connector is used for cable detection. In case of a high level (3.3V),
the plugged in module is signaled to the programming adapter. In case of low level no module is detected.
Figure 8.1: Silicon Labs Development Kit
Page 21 of 30
