8 Additional Hardware Requirements
Procedure for initial programming of BGM module
• Insert BGM module (e.g. BGM111) to Development Kit
• Connect the Development Kit SLWSTK6101C via USB to PC
• Connect target BGM module to the debug connector of the Development Kit
• Power on the target BGM module with 3.3V
• Start the software "Simplicity Studio" and the tool "Flash Programmer" (see screenshots above)
• Select file type bin and load binary file. The current version of this file can be requested from Elatec
Support support-rfid@elatec.com
• Press button "Program" to program the BGM Module.

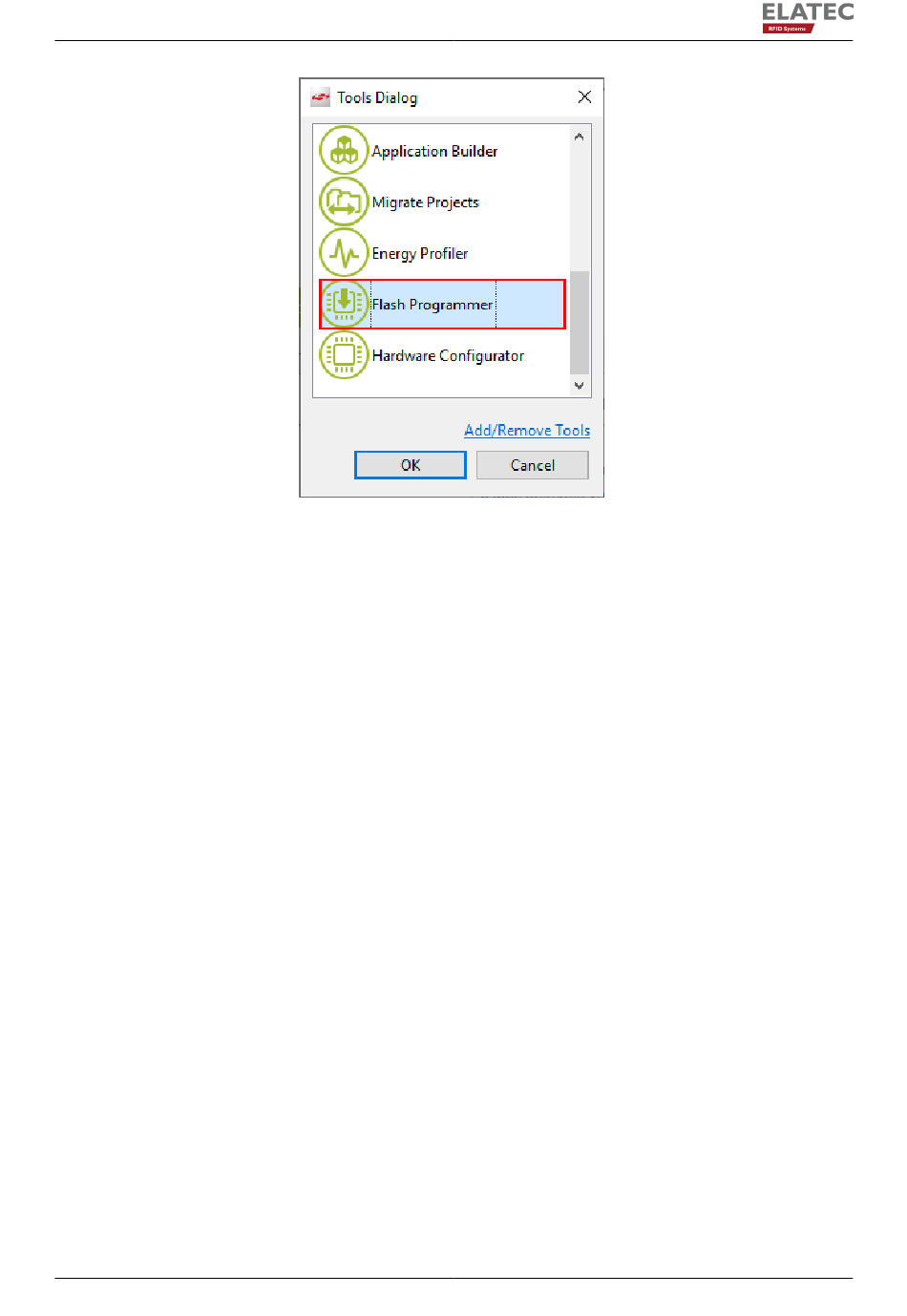

Figure 8.3: Silicon Labs Simplicity Studio Tools Dialog
Page 23 of 30
