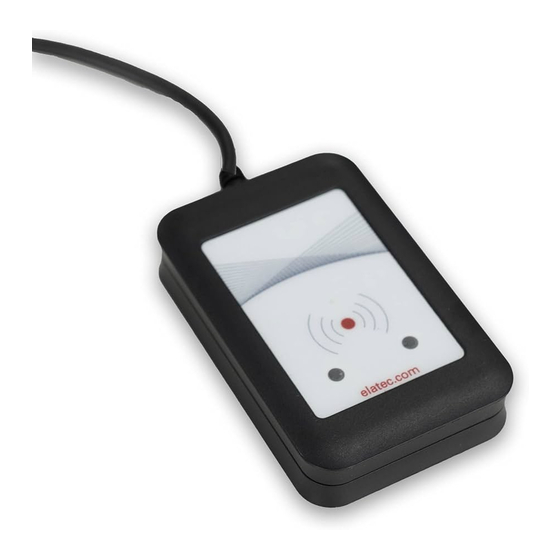

TWN4 MultiTech 2
TWN4 MultiTech 2 HF
TWN4 MultiTech 2 HF PCSC
TWN4 MultiTech 2 LEGIC
TWN4 MultiTech 2 LEGIC LF HF
TWN4 MultiTech 2 LEGIC M
TWN4 MultiTech 2 LEGIC M LF HF
TWN4 MultiTech 2 LF
TWN4 MultiTech 2 LF HF
TWN4 MultiTech 2 M
TWN4 MultiTech 2 M HF
TWN4 MultiTech 2 M LF
TWN4 MultiTech 2 M LF HF
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWN4 MultiTech 2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elatec TWN4 MultiTech 2 Series

Summary of Contents for Elatec TWN4 MultiTech 2 Series

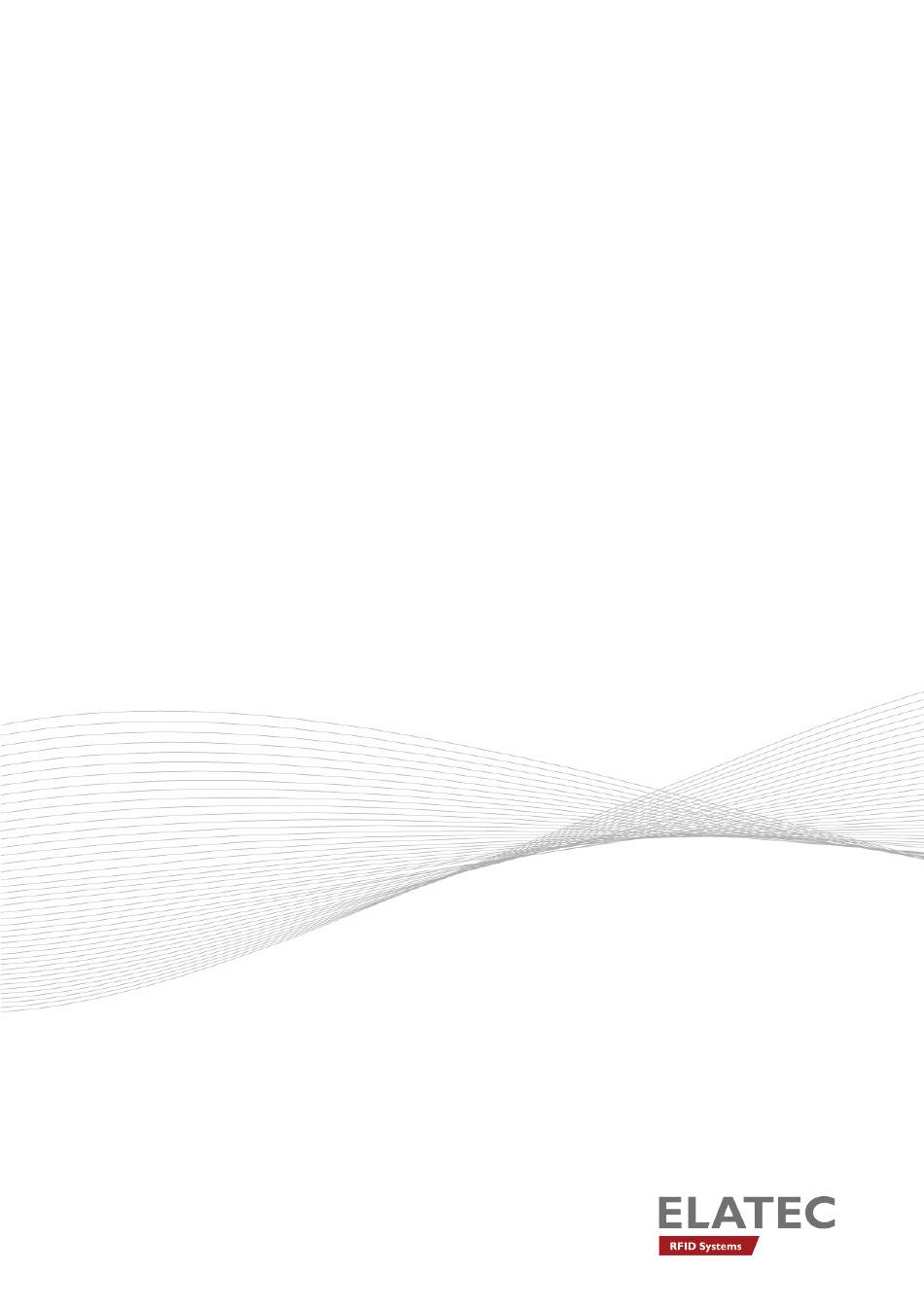

  • Page 1 TWN4 MultiTech 2 family TWN4 MultiTech 2 TWN4 MultiTech 2 HF TWN4 MultiTech 2 HF PCSC TWN4 MultiTech 2 LEGIC TWN4 MultiTech 2 LEGIC LF HF TWN4 MultiTech 2 LEGIC M TWN4 MultiTech 2 LEGIC M LF HF TWN4 MultiTech 2 LF TWN4 MultiTech 2 LF HF TWN4 MultiTech 2 M TWN4 MultiTech 2 M HF...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ................................3 ABOUT THIS MANUAL ............................3 ELATEC SUPPORT ..............................3 SAFETY INFORMATION ............................4 PRODUCT DESCRIPTION ............................6 INTENDED USE ............................... 6 PRODUCT FAMILY ..............................6 FIRMWARE ................................14 LABELING ................................14 ACCESSORIES ............................... 14 INSTALLATION ................................
  • Page 3 TWN4 MULTITECH 2 M LF HF ........................53 6.14 APPENDIX ....................................58 A – RELEVANT DOCUMENTATION ........................... 58 B – TERMS AND ABBREVIATIONS ..........................58 C – REVISION HISTORY ..............................58...

  • Page 4: Introduction

    In case of questions regarding your product order, contact your Sales representative or ELATEC customer service at info-rfid@elatec.com © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 3 of 60...

  • Page 5: Safety Information

    ELATEC excludes any liability for damages or injuries resulting from the use of spare parts or accessories other than the ones sold or recommended by ELATEC. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 4 of 60...
  • Page 6 Any failure to comply with the safety information given in this document is considered improper use. ELATEC excludes any liability in case of improper use or faulty product installation. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 5 of 60...

  • Page 7: Product Description

    ELATEC excludes any liability in case of unauthorized product modification or improper use of the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 6 of 60...
  • Page 8 Up to 100 mm / 4 inch, depending on environment R/W distance and transponder MTBF 500,000 hours Weight Approx. 115 g / 4.06 oz (with cable) © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 7 of 60...
  • Page 9 ELATEC excludes any liability in case of unauthorized product modification or improper use of the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 8 of 60...
  • Page 10 R/W distance environment and transponder MTBF 500,000 hours Weight Approx. 115 g / 4.06 oz (with cable) © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 9 of 60...
  • Page 11 ELATEC excludes any liability in case of unauthorized product modification or improper use of the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 10 of 60...
  • Page 12 ELATEC excludes any liability in case of unauthorized product modification or improper use of the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 11 of 60...
  • Page 13 Up to 100 mm / 4 inch, depending on environment R/W distance and transponder MTBF 500,000 hours Weight Approx. 10 g / 0.35 oz (without cable) © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 12 of 60...
  • Page 14 Approx. 10 g / 0.35 oz (without cable) Refer to the data sheet of your product for additional technical specifications. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 13 of 60...

  • Page 15: Firmware

    IP65 plastic housing that can be used to install any RFID module of the TWN4 MultiTech 2 family outside. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 14 of 60...
  • Page 16 Refer to the ELATEC website for more information about the available cables and accessories. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 15 of 60...

  • Page 17: Installation

    Refer to the integration manual of your RFID module for more information about the installation and electrical connection to the host device. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 16 of 60...

  • Page 18: Mode Of Operation

    Turn off the green LED. • Blink the red LED for two seconds. • Turn on the green LED. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 17 of 60...

  • Page 19: Suspend Mode

    USB bus. Therefore, the reader will resume to normal operation too. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 18 of 60...

  • Page 20: Compliance Statements

    © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 19 of 60...
  • Page 21 要求”的具体条款和使用场景，采用的天线类型 short-range radio transmission equipment” as 和性能，控制、调整及开关等使用方法； well as the usage scenarios for the antenna type © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 20 of 60...
  • Page 22 工作温度-25℃~70℃， at airports, all applicable provisions of the 储存温度-40℃~75℃。 competent authorities as well as statutory © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 21 of 60...
  • Page 23 6.2.9 SINGAPORE Complies with IMDA Standard [DA 103787] 6.2.10 TAIWAN / 臺灣 注意! 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及 功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時 方得繼續使用。前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及 醫療用電波輻射性電機設備之干擾。 © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 22 of 60...

  • Page 24: Twn4 Multitech 2 Hf

    Hereby, ELATEC GmbH declares that TWN4 MultiTech 2 HF complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 23 of 60...
  • Page 25 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 24 of 60...
  • Page 26 机场等的电磁环境保护区域内使用微功率设备，应当遵 using the product again in order to eliminate said 守电磁环境保护及相关行业主管部门的规定； interference; © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 25 of 60...
  • Page 27 United Kingdom. • UKCA marking © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 26 of 60...

  • Page 28: Twn4 Multitech 2 Hf Pcsc

    Consult the dealer or an experienced radio/TV technician for help. 6.5.3 ISED / ISDE CANADA Contains IC: 7948A-TWN4F22 Contains IC: 5123A-BGM220S2 © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 27 of 60...
  • Page 29 Control system, regulation, and switches: The 此无线电发射功能 user cannot control, regulate, or switch over the radio transmission function of the antenna. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 28 of 60...
  • Page 30 4.3 V – 5.5 V (charging via USB), operating temperature: -25 °C – 70 °C, storage temperature: -40 °C – 75 °C. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 29 of 60...
  • Page 31 радіообладнання: Пристрій радіочастотної ідентифікації [RFID Reader/Writer 125 kHz, 13,56 MHz] т.м. «ELATEC» моделі TWN4 MultiTech 2 LEGIC відповідає Технічному регламенту радіообладнання. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 30 of 60...

  • Page 32: Twn4 Multitech 2 Legic Lf Hf

    However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 31 of 60...
  • Page 33 (10 米处场强， 准峰值) (field strength at 10 meters, standard max value) 天线：内置天线（不可拆卸） Antenna: built-in antenna (cannot be removed) © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 32 of 60...
  • Page 34 TWN4 MultiTech 2 LEGIC LF HF: 4.3 V – 5.5 V (charging via USB), operating temperature: -25 °C – 70 °C, © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 33 of 60...

  • Page 35: Twn4 Multitech 2 Legic M

    (2) this device must accept any interference received, including interference that may cause undesired operation. (except receivers associated with operation of a licensed radio service and stand-alone devices). © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 34 of 60...
  • Page 36 Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 35 of 60...

  • Page 37: Twn4 Multitech 2 Legic M Lf Hf

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 36 of 60...
  • Page 38 器），不得擅自更改发射天线； the transmission power (including installing additional transmission power amplifiers), as well © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 37 of 60...
  • Page 39 -40 °C – 75 °C. The user must strictly adhere to these temperature and voltage specifications when using the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 38 of 60...

  • Page 40: Twn4 Multitech 2 Lf

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 39 of 60...
  • Page 41 扰，也不得提出免受有害干扰保护； as the unauthorized modification of the transmission antenna are not allowed; © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 40 of 60...
  • Page 42 UK declaration of conformity. The importer is responsible for applying the following information to the packaging of the product: © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 41 of 60...

  • Page 43: Twn4 Multitech 2 Lf Hf

    Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 42 of 60...
  • Page 44 率范围、加大发射功率（包括额外加装射频功率放大 scenarios or the conditions of use, expansion of 器），不得擅自更改发射天线； the transmission frequency range, or increase of © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 43 of 60...
  • Page 45 -40 °C – 75 °C. The user must strictly adhere to these temperature and voltage specifications when using the product. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 44 of 60...
  • Page 46 Мінус 2,25 дБмкА/м, HF RFID 13,553 – 13,567 МГц Напруженість магнітного поля, виміряна на відстані 10 м © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 45 of 60...

  • Page 47: Twn4 Multitech 2 M

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 46 of 60...

  • Page 48: Twn4 Multitech 2 M Hf

    Hereby, ELATEC GmbH declares that TWN4 MultiTech 2 M HF complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 47 of 60...
  • Page 49 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 48 of 60...
  • Page 50 机场等的电磁环境保护区域内使用微功率设备，应当遵 using the product again in order to eliminate said 守电磁环境保护及相关行业主管部门的规定； interference; © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 49 of 60...

  • Page 51: Twn4 Multitech 2 M Lf

    Hereby, ELATEC GmbH declares that TWN4 MultiTech 2 M LF complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 50 of 60...
  • Page 52 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 51 of 60...
  • Page 53 机场等的电磁环境保护区域内使用微功率设备，应当遵 using the product again in order to eliminate said 守电磁环境保护及相关行业主管部门的规定； interference; © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 52 of 60...
  • Page 54 The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 53 of 60...
  • Page 55 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 6.14.4 ARGENTINA RAMATEL H-28225 © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 54 of 60...
  • Page 56 (ISM) devices which radiate high frequency energy or other legal interference from 时，应立即停止使用，并采取措施消除干扰后方可继续 radio transmitters (stations); 使用； © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 55 of 60...
  • Page 57 The user must strictly adhere to these temperature and voltage specifications when using the product. 6.14.7 SINGAPORE Complies with IMDA Standard [DA 103787] © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 56 of 60...
  • Page 58 United Kingdom. • UKCA marking © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 57 of 60...
  • Page 59 RFID radio frequency identification read/write (distance) C – REVISION HISTORY VERSION CHANGE DESCRIPTION EDITION First edition 05/2024 © 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024 Page 58 of 60...
  • Page 60 ELATEC reserves the right to change any information or data in this document without prior notice. ELATEC declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer themselves at their own responsibility.
