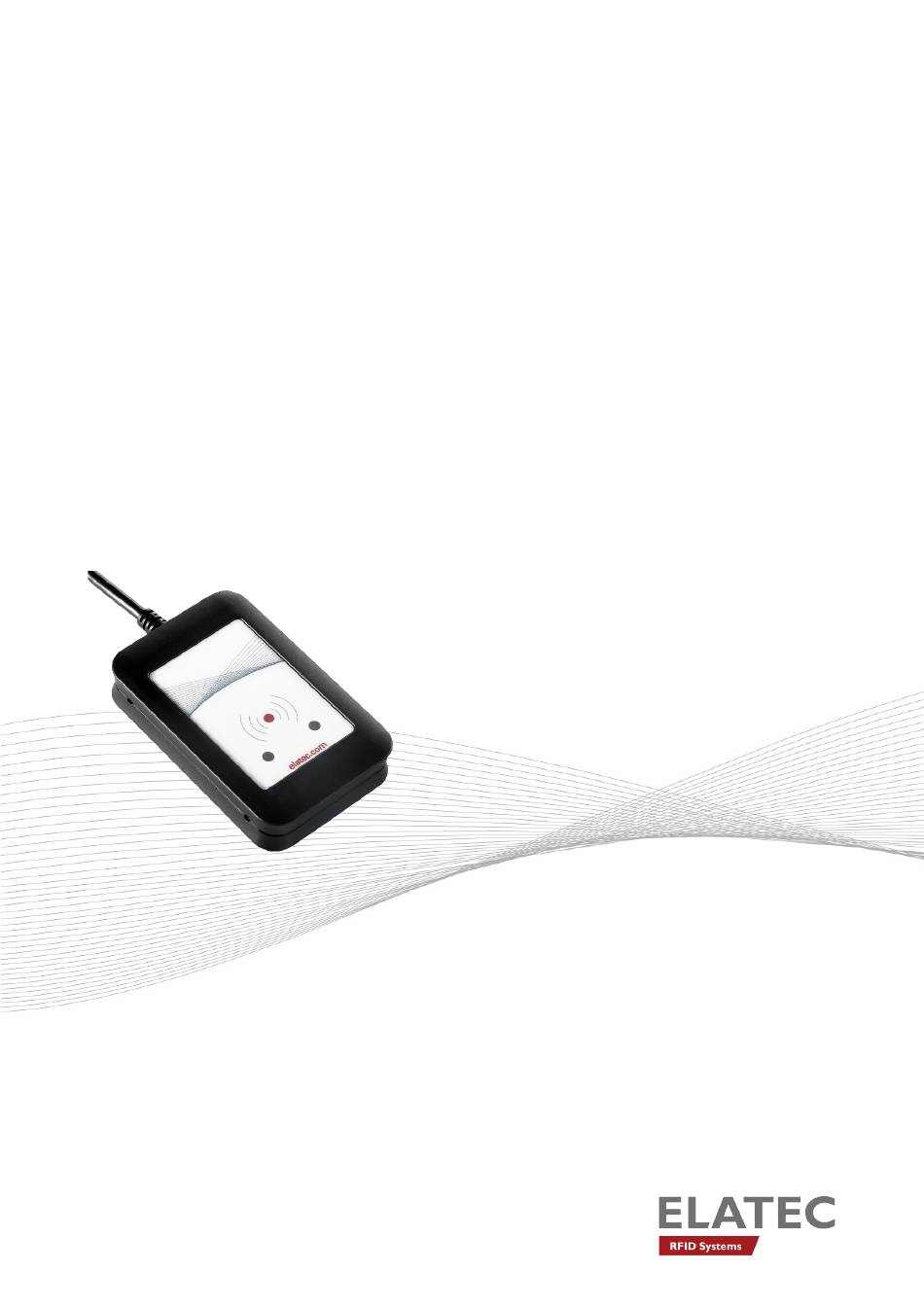

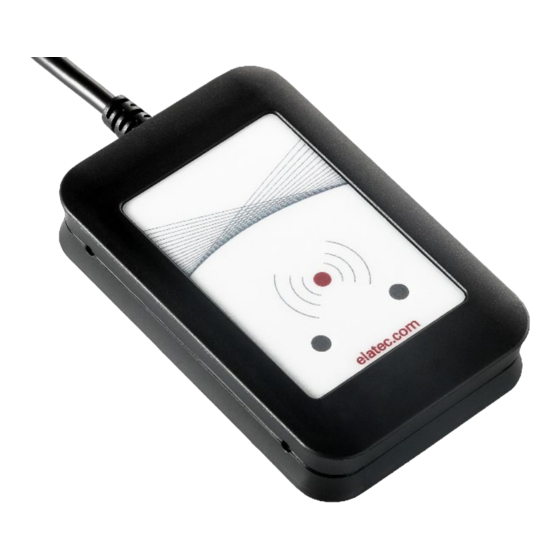

- Page 1 TWN4 MULTITECH 2 HF USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................................. 3 ABOUT THIS MANUAL ..............................3 SCOPE OF DELIVERY ..............................3 ELATEC SUPPORT ................................3 INTENDED USE .................................. 4 SAFETY INFORMATION ..............................5 TECHNICAL DATA ................................7 TECHNICAL SPECIFICATIONS .............................7 FIRMWARE ..................................7 ANTENNAS ..................................7 MODE OF OPERATION ..............................8 OPERATING MODE ...............................8... -
Page 3: Introduction
For more information about the delivered components and accessories, refer to your delivery note, consult the ELATEC website or contact ELATEC. ELATEC SUPPORT In case of any technical questions or product malfunction, refer to the ELATEC website (www.elatec.com) or contact ELATEC technical support at support-rfid@elatec.com In case of questions regarding your product order, contact your Sales representative or ELATEC customer service at info-rfid@elatec.com... -
Page 4: Intended Use
This broad range of product features makes the TWN4 MultiTech 2 family an excellent solution for almost every project. Key features of the TWN4 MultiTech 2 HF desktop reader include a powerful SDK for writing apps that are executed directly on the reader, the possibility to upgrade the firmware in the field and a direct chip-commands support. -
Page 5: Safety Information
The user is liable for the use of spare parts or accessories other than the ones sold or recommended by ELATEC. ELATEC excludes any liability for damages or injuries resulting from the use of spare parts or accessories other than the ones sold or recommended by ELATEC. - Page 6 If you are unsure about any part of the safety information above, contact ELATEC support. Any failure to comply with the safety information given in this document is considered improper use. ELATEC excludes any liability in case of improper use or faulty product installation.
-
Page 7: Technical Data
Dimensions: 42 x 44 mm / 1.65 x 1.73 inch Number of turns: 3 For more information, refer to the related product data sheet or other technical documents. © 2023 ELATEC GmbH – TWN4 MultiTech 2 HF user manual – DocRev03 – EN – 07/2023 Page 7 of 14... -
Page 8: Mode Of Operation
In order to start operating TWN4 MultiTech 2 HF, it simply has to be connected directly to a host device. POWER UP Once TWN4 MultiTech 2 HF is connected to the host device, it detects the type of communications cable (e.g. USB or RS-232), with which it is connected to the host. -
Page 9: Suspend Mode
Once the host is resuming to normal operation mode, this is also signaled via the USB bus. Therefore, the reader will resume to normal operation too. © 2023 ELATEC GmbH – TWN4 MultiTech 2 HF user manual – DocRev03 – EN – 07/2023 Page 9 of 14... -
Page 10: Compliance Statements
6 COMPLIANCE STATEMENTS Hereby, ELATEC GmbH declares that TWN4 MultiTech 2 HF is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elatec.com/approvals RF exposure statement TWN4 MultiTech 2 HF complies with EU radiation exposure limits set forth for an uncontrolled environment under the following conditions: The equipment should be installed and operated such that a minimum separation distance of 5 cm is maintained between the antenna and user’s/nearby person’s body at all times. -
Page 11: China (Prc) / 中华人民共和国
(6) When using micropower devices inside of an aircraft or radiometric observatories, or when using such devices in （八）微功率设备使用时温度和电压的环境条件。 meteorological radar stations, satellite ground stations (including © 2023 ELATEC GmbH – TWN4 MultiTech 2 HF user manual – DocRev03 – EN – 07/2023 Page 11 of 14... -
Page 12: Taiwan / 臺灣
UNITED KINGDOM TWN4 MultiTech 2 HF complies with the requirements of the UK legislations and other regulations as listed in the respective UK declaration of conformity. The importer is responsible for applying the following information to the packaging of the product: •... -
Page 13: Appendix
“Compliance Statements” updated First edition (replaces RFID Reader/Writer TWN4 MultiTech 2 HF Quick Start Guide, DocRev 7, dated 07/2021 08/2020) © 2023 ELATEC GmbH – TWN4 MultiTech 2 HF user manual – DocRev03 – EN – 07/2023 Page 13 of 14... - Page 14 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
