3 Connector and Pin-Out
3.1.2 Through-Hole Technology (THT)
Suggested connector for THT assembly is Samtec TMS-124-02-G-S.
In case a detachable connection is required, mating part (to be mounted on carrier board) is Samtec
SLM-124-01-G-S.
3.1.3 Surface Mount Technology (SMT)

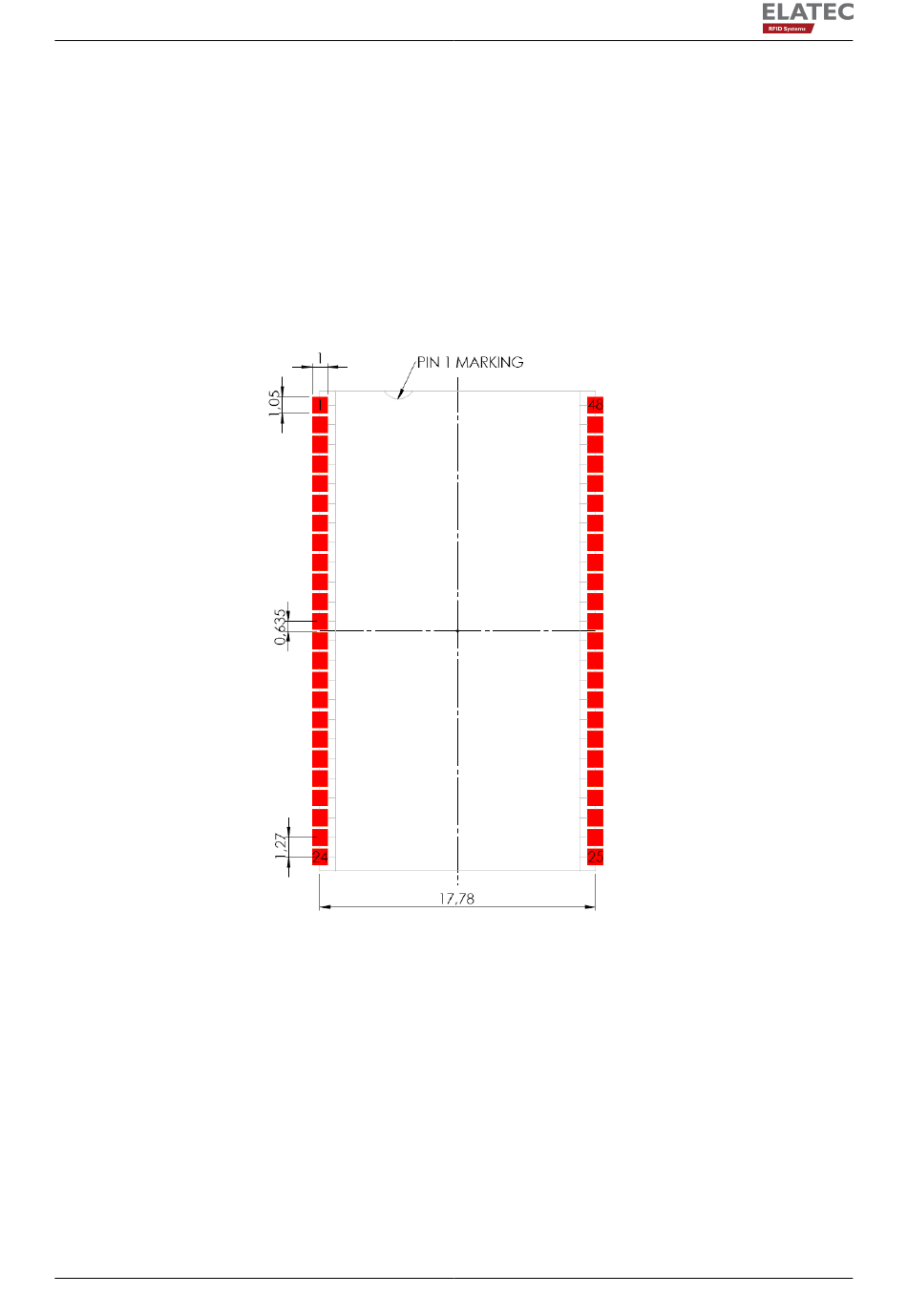

3.1.3.1 Footprint
Page 10 of 30
