8 Additional Hardware Requirements

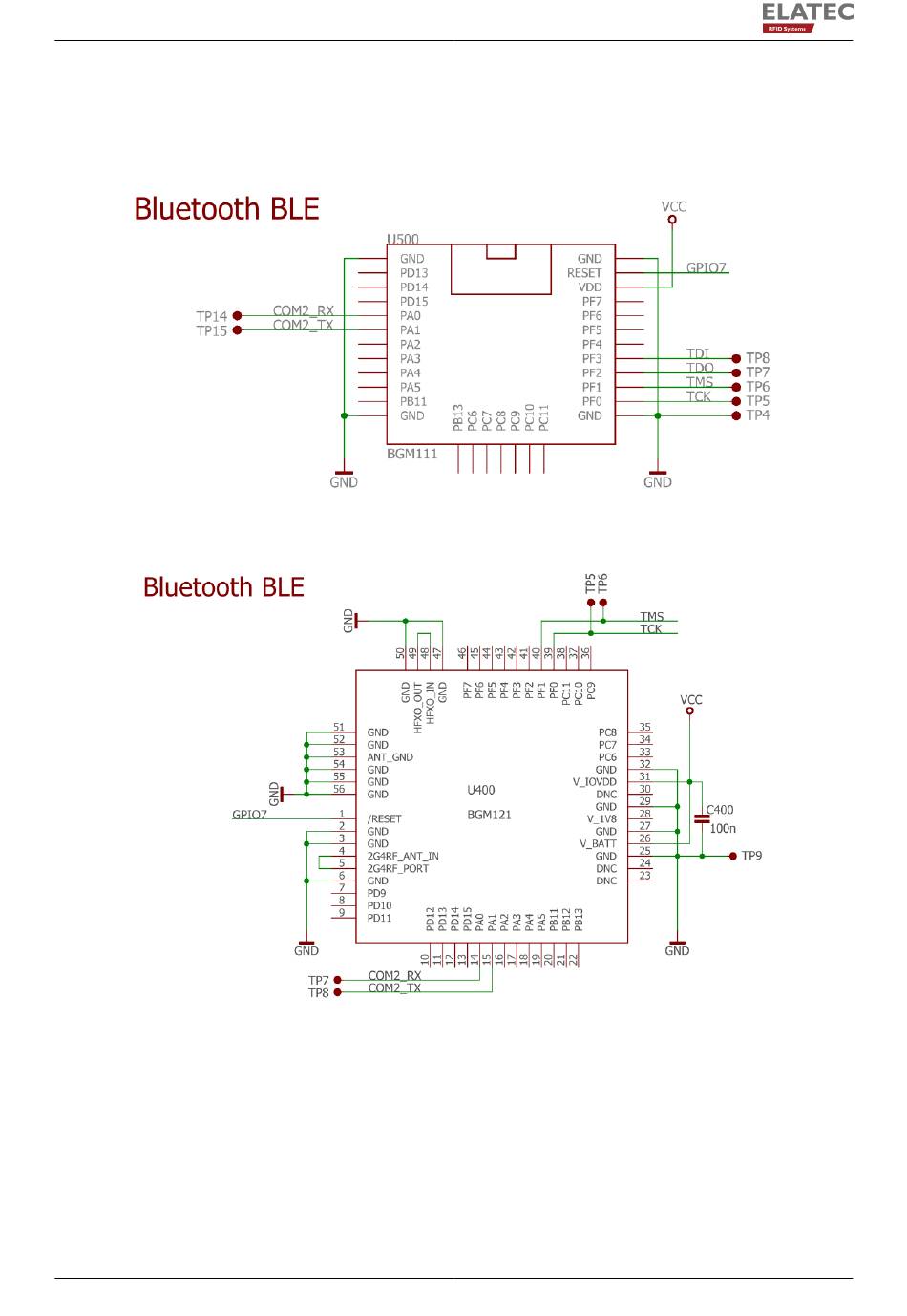

Following schematics are recommended:
BGM111
BGM121 / BGM11S

8.3.2 Initial Programming of BLE Module

All the BGM Bluetooth Modules from Silicon Labs must first be programmed.
With Silicon Labs Development Kit SLWSTK6101C all BGM modules can be programmed via the SWD
pins TMS and TCK. The Silicon Labs software Simplicity Studio is a universal development package which
can be used for the initial programming of the BGM modules. This software contains the tool "Flash Pro-
grammer" for programming the BGM Modules. The following part describes a possible way to programm
the BGM Modules.
Page 20 of 30
