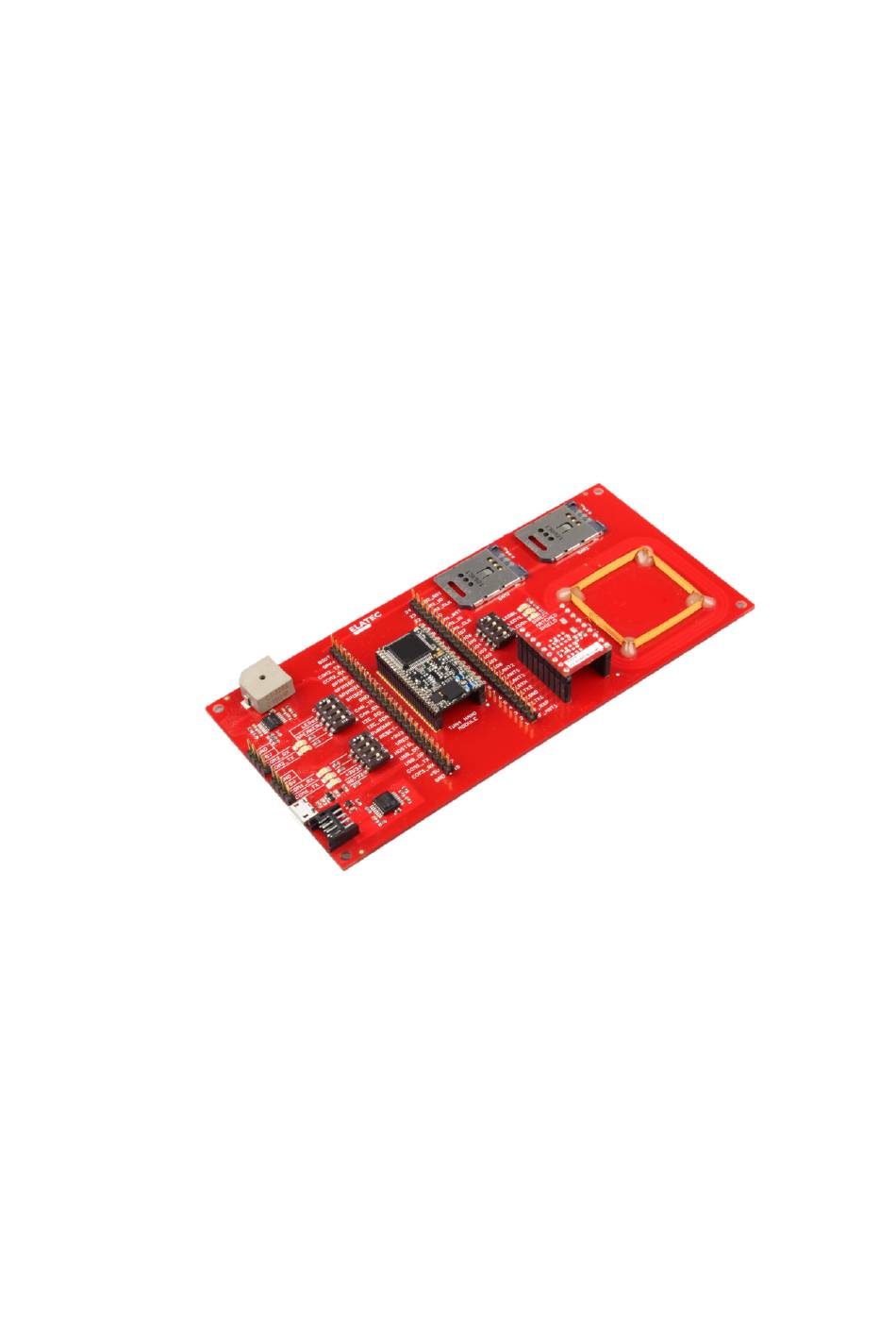

TWN4 MultiTech Nano Development Kit
Technical Handbook
DocRev5, February 5, 2019
Elatec GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWN4 MultiTech Nano and is the answer not in the manual?

Questions and answers

Related Manuals for Elatec TWN4 MultiTech Nano

Summary of Contents for Elatec TWN4 MultiTech Nano

  • Page 1 TWN4 MultiTech Nano Development Kit Technical Handbook DocRev5, February 5, 2019 Elatec GmbH...

  • Page 2: Table Of Contents

    Contents Contents 1. Introduction ..........2.

  • Page 3: Introduction

    1. Introduction 1. Introduction The TWN4 MultiTech Nano Module is a configurable Reader/Writer of RFID transponders. It provides ports that can be connected to antennas operating at low (125kHz, 134.2kHz) and high (13.56MHz) frequencies. The Module can be accessed via a set of interfaces including USB, I2C, SPI, SAM, CAN, GPIO and COM (x2).

  • Page 4: Getting Started

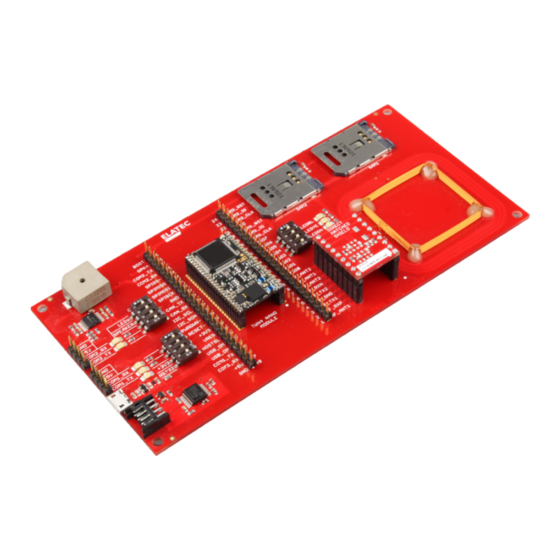

    2. Getting Started 2. Getting Started 2.1. Functional Overview The functional layout of the Development Board is shown on Figure 2.1. Main features of the Development Board are: • Ready-to-Use primary interfaces to the USB (8-pin DF11 or Micro USB) and UART (DF11) ports •...

  • Page 5: Replacing The Nano Module

    Once the board is connected to a host, a driver must be installed (in case of USB connection). Therefore install the driver included in TWN4 DevPack. When driver installation is finished, a new virtual COM port is available on the PC. Now you can set up a connection to the TWN4 MultiTech Nano using this COM port.

  • Page 6: Flashing Firmware And Application Code

    COM port. • Click the button Connect. • Enable the checkbox Cycle. This will make the TWN4 MultiTech Nano (LEGIC 42) search for transponders cyclically. • Optional: use the Select Tag Types drop-down menu to restrict the types of cards that can be detected.

  • Page 7: Using Peripherals

    These include Wiegand, RS485/422, CAN and Relais. An LCD Screen is also available to assist with application bring-up. The I/O Extender can be connected to the TWN4 MultiTech Nano Module via the Expansion slot on the Development Board. Please see the I/O Extender Technical Handbook for more information.

  • Page 8: Disclaimer

    4. Disclaimer 4. Disclaimer Elatec reserves the right to change any information or data in this document without prior notice. The distribution and the update of this document is not controlled. Elatec declines all responsibility for the use of product with any other specifications but the ones mentioned above. Any additional requirement for a specific custom application has to be validated by the customer himself at his own responsibility.

  • Page 9: Appendix: Dip Switch Settings Reference

    A. Appendix: DIP Switch Settings Reference A. Appendix: DIP Switch Settings Reference Function Connect TWN4 MultiTech Nano to COM1 RX and RX out of RS232 transceiver. These 2 sources are channeled to Nano Module through an AND-Gate. Unused port will be pulled up to 3.3V.

  • Page 10: Appendix: Connector Pinout Reference

    B. Appendix: Connector Pinout Reference B. Appendix: Connector Pinout Reference Pin Name Function UGND USB Ground. Fed to DevBoard Ground through noise-reduction circuit. USB_D+ USB Data + UVCC USB VCC (5V). When using RS232, connect this to external 5V supply. USB_D- USB Data - V24_RXD...
  • Page 11 B. Appendix: Connector Pinout Reference Pin Name Function Ground Supply Voltage COM2_RX Active-Low TTL input with internal pull-up resistor of asynchronous RXD to COM2. COM2_TX Active-Low TTL output (push/pull) of asynchronous TXD from COM2. Table B.4.: COM 2 Port (X220) Pin Configuration Page 11 of 11...
