3 Connector and Pin-Out

3.1.3.2 Placement

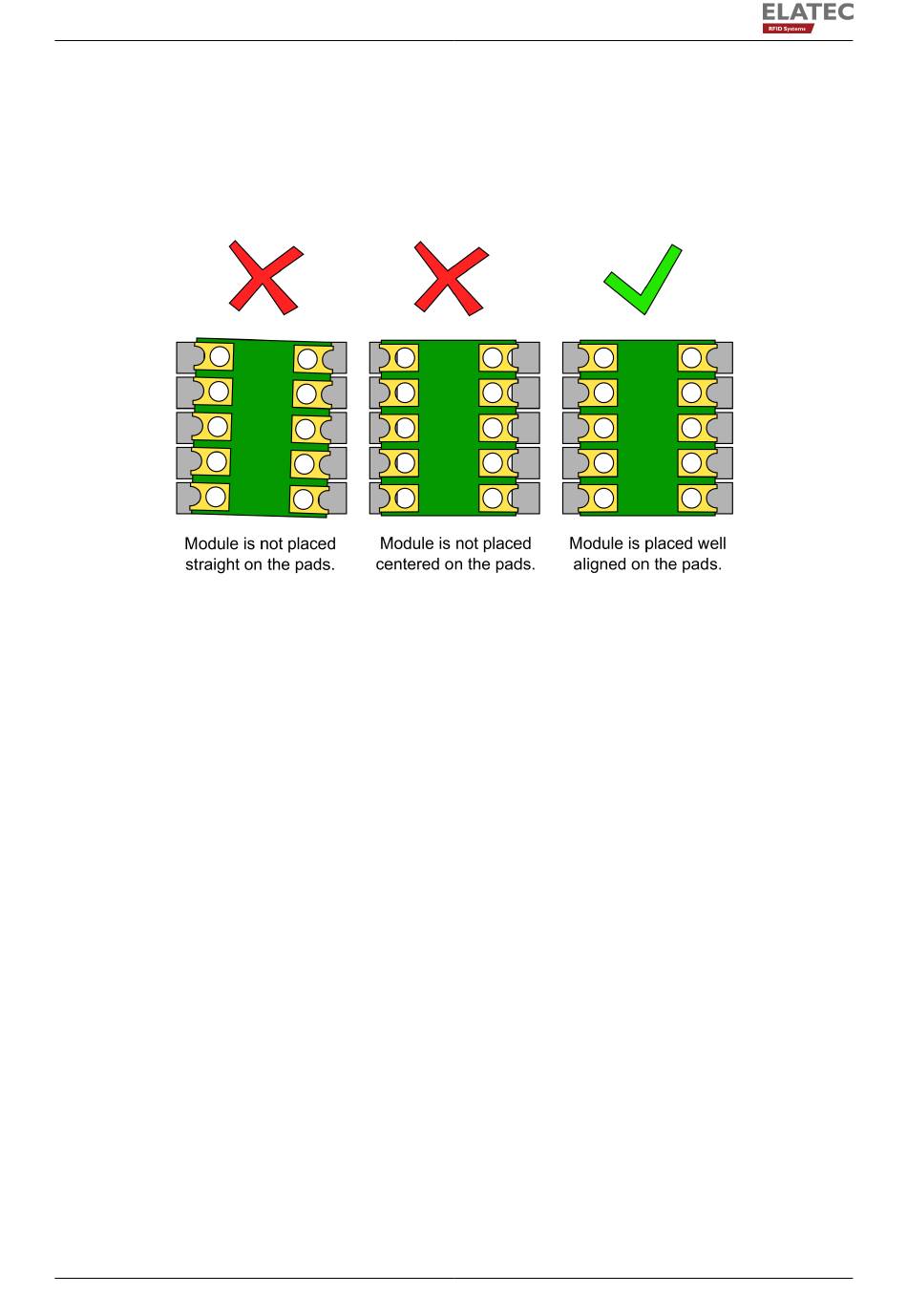

Please take special care about correct placement of TWN4 MultiTech Nano on the soldering pads. Wrong
placement might cause holes for THT assembly to absorb tin from the SMT pads. Please follow these
rules:
