Deep marking A deep marking is possible on many metals, but a general statement cannot be
made. see page 35.
1
2
Marking head for deep markings
Note
You don't need conductive net for deep marking.
1. Tailor green felt (3) so that it gets over approx. 15 mm at all sides of the
2. Place the felt onto the marking head.
3. Bend the O-ring seal (2) over the felt.
4. Attach the marking head to the EMP/MODULMAT (4, Fig. 10102, page 12).
5. Attach the stencil glued on stencil (5) to the stencil holder (3, Fig. 10102,
ÖSTLING Markiersysteme GmbH
Marking head
O-ring seal
marking head (1).
page 12).
3 Green felt
5 Stencil glued on stencil cover
B_EU_EMP_en.doc
Operation manual EMP

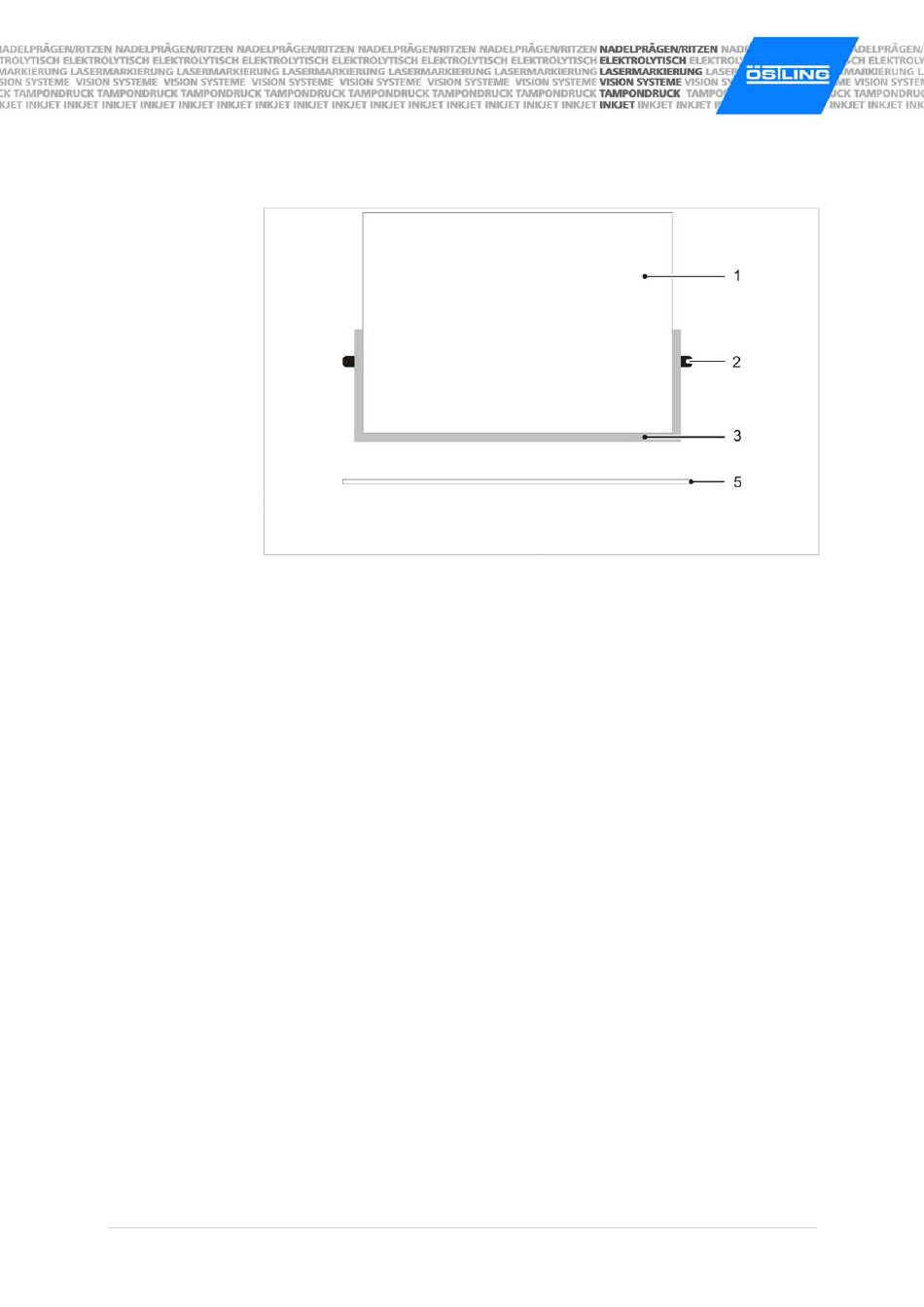

Fig. 10104
