MODULMAT

1
2
3

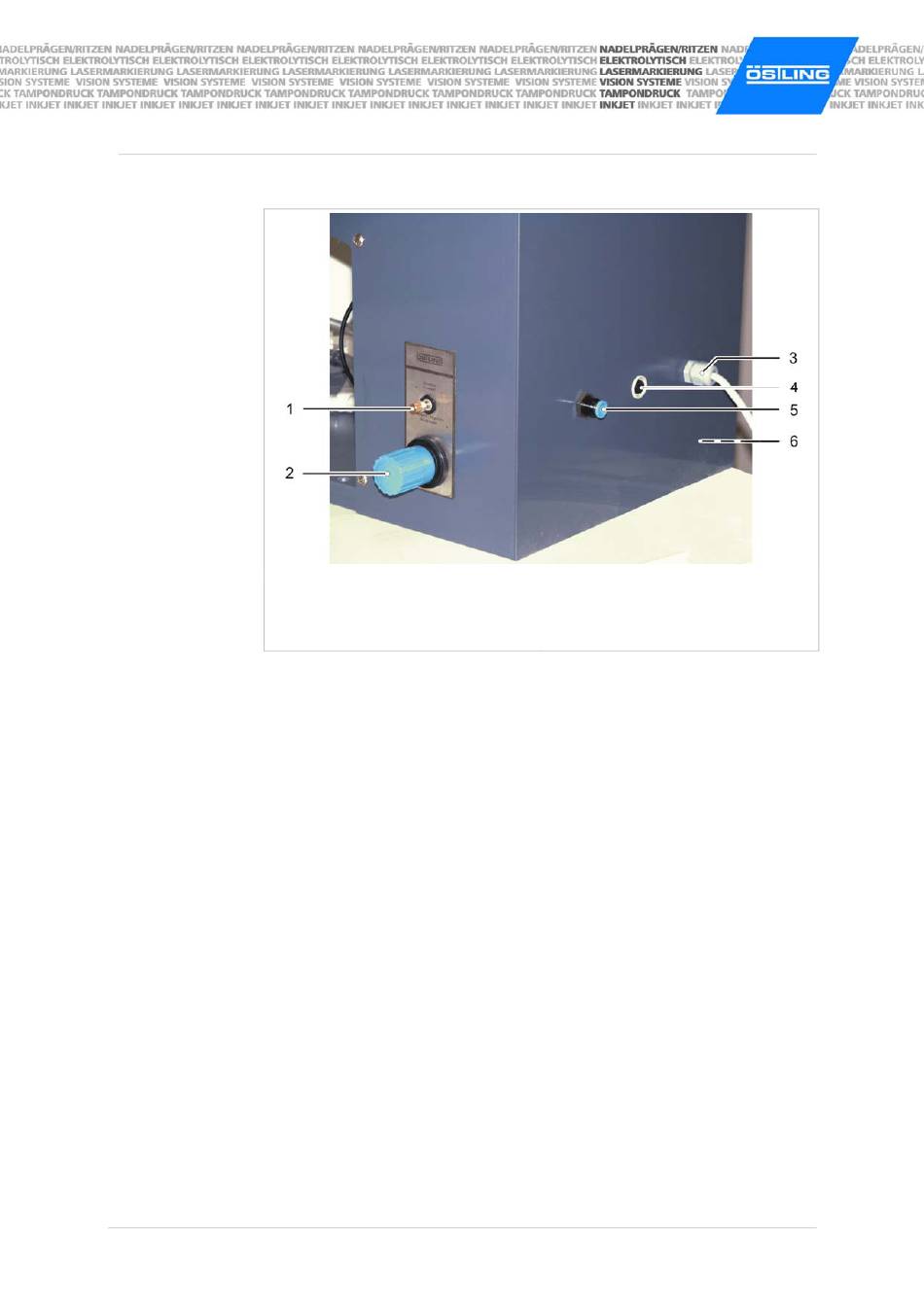

Connections MODULMAT
1. Plug in the line cord (3).
2. Tuck the plug of the electrolyte pump into the connection pump (6).
3. Plug in the foot switch (4).
4. To supply the MODULMAT with compressed air: Lead tube PUN 8 from the
5. Fill electrolyte into the electrolyte storage vessel (max. 250 ml).
ÖSTLING Markiersysteme GmbH
Throttle for cylinder speed
Pressure reducing valve
Line cord
internal compressed air supply to the compressed air connection (5) of the
MODULMAT.
The pressure must amount to 4.5 to 5 bar. With the pressure reducing valve
(2) the pressure can be set finely.
4 Connection foot switch
5 Compressed air connection
6 Connection pump (at the side)
B_EU_EMP_en.doc
Operation manual EMP
Fig. 10123
