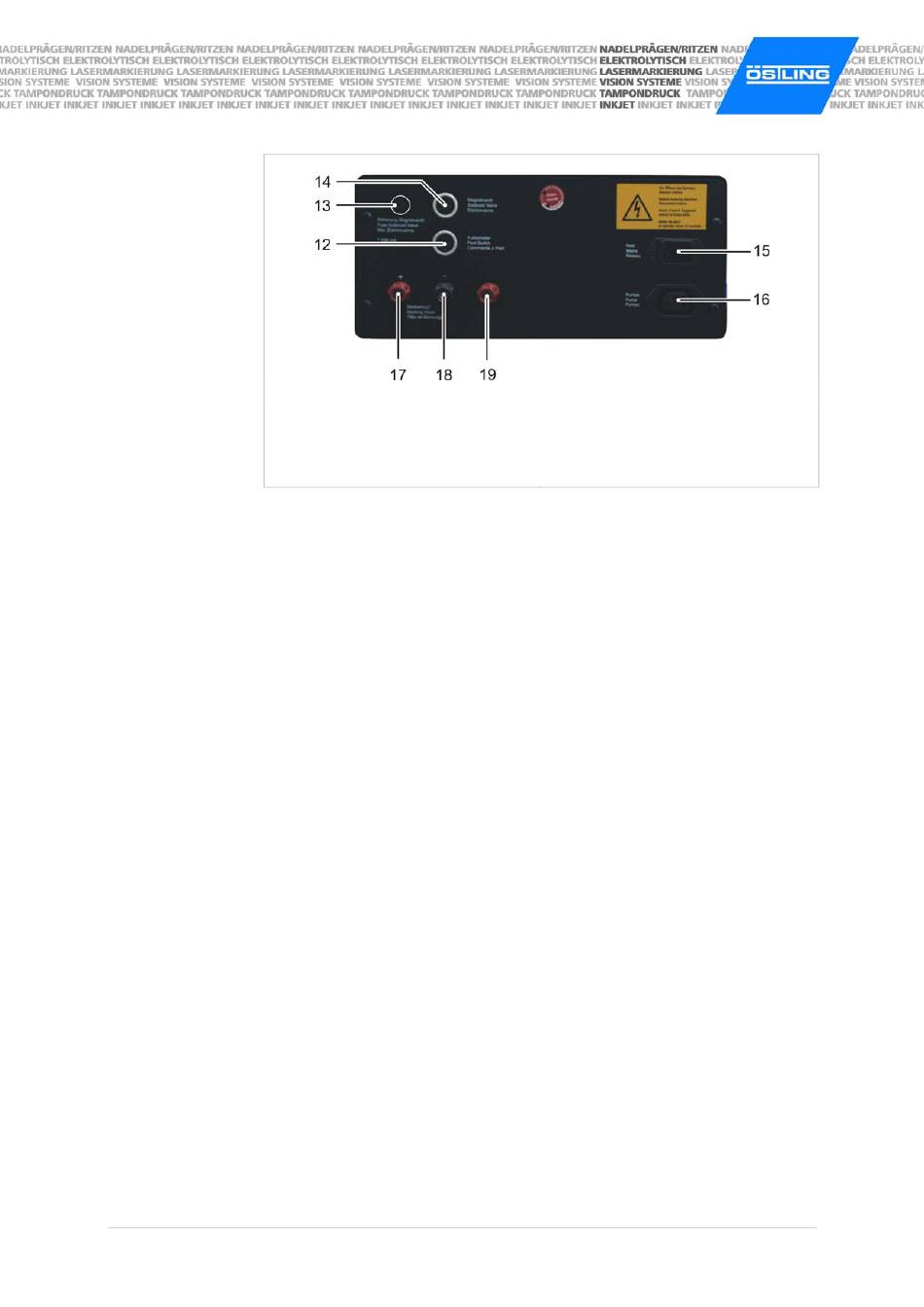

12 Connection foot switch
13 Fuse magnet valve
14 Output magnet valve
15 Connection line cord
Connections EU CLASSIC / EU EXPERT
1. Plug in the line cord (15).
2. Tuck the plug of the electrolyte pump into the connection pump (16).
3. Plug in the foot switch (12).
4. Tuck the plug magnet valve (8) into output magnet valve (14).
5. Tuck the plug of the red positive cable into the red connection (17) at the
6. Connect the connection negative cable (7) at the adjustment block via blue
7. To supply the EMP with compressed air: Lead tube PUN 8 from the internal
8. Fill electrolyte into the electrolyte storage vessel (11, max. 250 ml).
ÖSTLING Markiersysteme GmbH
control.
negative cable with the black connection (18) at the control.
compressed air supply to the compressed air connection (10) of the EMP.
The pressure must amount to 4.5 to 5 bar. With the pressure reducing valve
(9) the pressure can be set finely.
16 Connection pump
17 Connection positive cable
18 Connection negative cable
19 Hard metal output (option)
B_EU_EMP_en.doc
Operation manual EMP
Fig. 10005
