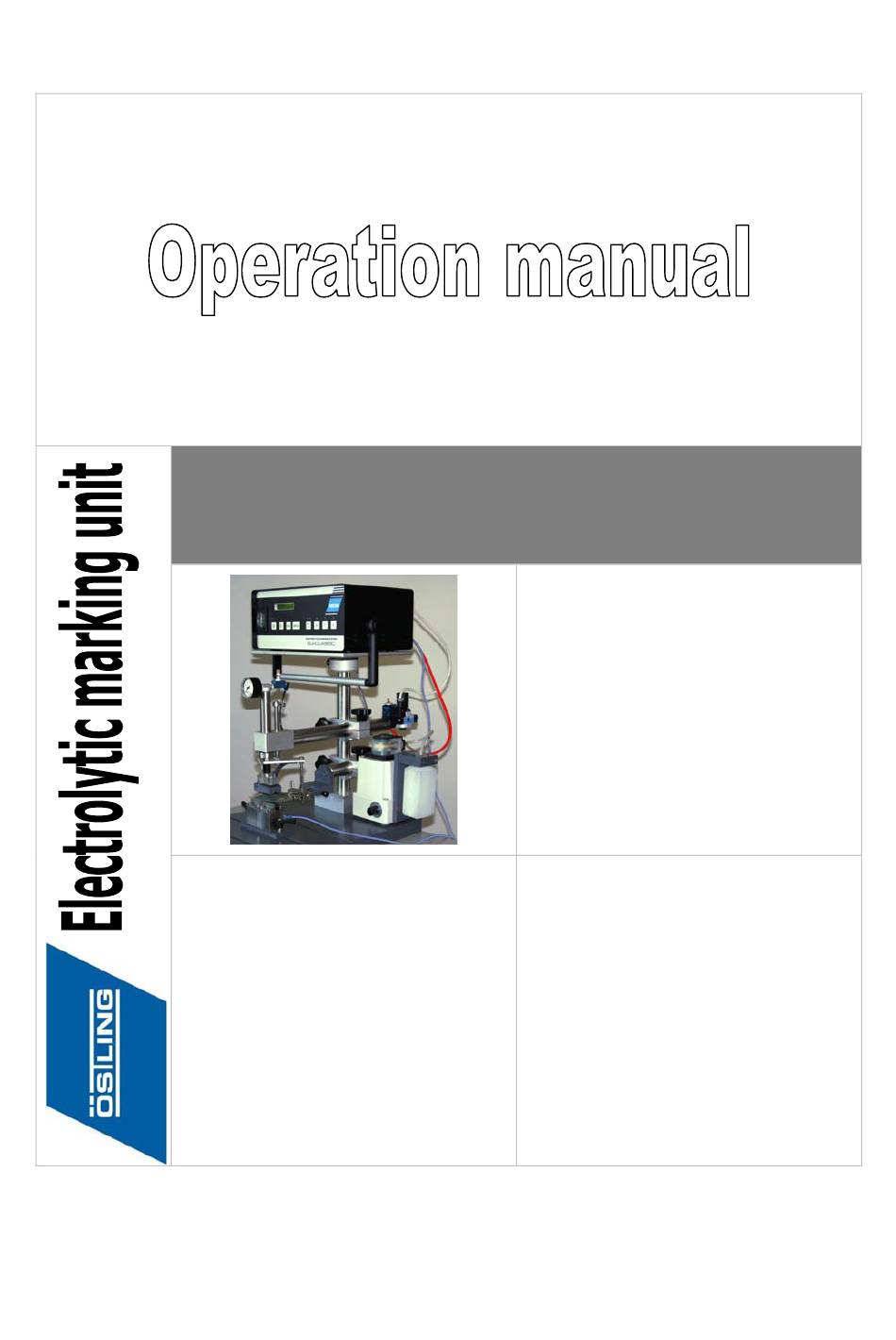

  • Page 1 Ö S T L I N G Markiersysteme GmbH Broßhauser Str. 27 42697 Solingen - Deutschland Tel.: +49 (0) 212 - 26 96 0 Fax.: +49 (0) 212 - 26 96 199 www.ostling.com Edition: 01/2005...
  • Page 2 The document was written in the Technical documentation department of the company ÖSTLING Markiersysteme GmbH. All rights at this documentation, in particular the right of the duplication and spreading as well as the translation are at ÖSTLING Markiersysteme GmbH, also for the case of patent right registrations.

  • Page 3: Table Of Contents

    Table of contents Safety......................4 Definitions....................4 Operational safety ..................5 Intended use of the marking equipment..........5 Measures taken by the user/operator ............6 Consider warning plates and references ..........6 Personnel instruction................6 Duty to care in handling the equipment........... 7 Use of intended spare parts and operational funds ........

  • Page 4: Safety

    Safety With the EMP/MODULMAT you have an electrolytic marking system, which is on the newest state of the art concerning safety and which is reliable in service. We confirm to you with the EEC conformity explanation and the CE-indication at the equipment that the EMP/MODULMAT corresponds to the fundamental safety and health requirements of the EEC machine guideline 98/37/EG.

  • Page 5: Operational Safety

    Impairment of the marking equipment and further real values of the user. • Impairment of the efficient work of the equipment. Intended use of the marking equipment The EMP/MODULMAT is an electrolytic marking system for marking products with electrically leading surface. Intended use means in addition: •...

  • Page 6: Measures Taken By The User/Operator

    1.3 Measures taken by the user/operator Consider warning plates and references With the operation of the marking equipment also actions are to be implemented, from which dangers can proceed. In this manual the instructions for implementing such actions warning references are placed in front. At the equipment are in addition appropriate warning plates.

  • Page 7: Duty To Care In Handling The Equipment

    Duty to care in handling the equipment Guarantee perfect condition of the equipment: • The user and/or the circle of acquaintances assigned by him may operate the equipment exclusively in the perfect condition. • The user must ensure cleanliness and clarity of the work place at the equipment by appropriate instructions and controls.

  • Page 8: Water Protection

    When using the intended operational funds the instructions for use must be kept. As far as a safety data sheet (European guideline 91/155/EWG) of the manufacturer for operational funds is prescribed, the references made there must be considered obligatorily, like e. g.: •...

  • Page 9: Measures Of The Manufacturer

    1.4 Measures of the manufacturer The marking equipment contains a transformer, which reduces the input voltage (AC) to max. 24V output voltage alternating current (AC) or direct current (DC). With intended use of the equipment therefore no voltage dangerous for humans is delivered by the equipment.

  • Page 10: Product Description

    The surface form of the product to be marked is arbitrary. The EMP/MODULMAT consists of the following building groups: • Marking control EU CLASSIC 300, EU CLASSIC 500, EU EXPERT 300 or EU EXPERT 500.

  • Page 11: Operating Devices And Components

    2.2 Operating devices and components MAIN SWITCH 11 PUMP Display 12 Connection foot switch LEDs AC and DC 13 Fuse magnet valve Pushbutton ↑ (increase values) 14 Output magnet valve Pushbutton ↓ (decrease values) 15 Connection line cord 16 Connection pump ENTER 17 Connection positive cable MENU...
  • Page 12 Throttle cylinder speed Connection negative cable Pressure gauge Cable and plug magnet valve Stencil holder X-Y-Z Pressure reducing valve Marking head 10 Compressed air connection Stencil glued on stencil cover 11 Electrolyte storage vessel Adjustment block 12 Electrolyte fine dosage Components EMP Fig.
  • Page 13 Pressure reducing valve Compressed air connection Line cord Connection pump (at the side) Deviant components MODULMAT Fig. 10123 Note Depending upon ordered design the appearance of the EMP/MODULMAT can deviate slightly from these illustrations. B_EU_EMP_en.doc ÖSTLING Markiersysteme GmbH Operation manual EMP...

  • Page 14: Accessories

    2.3 Accessories Hard metal The equipment can be supplied with an optional hard metal output. 10 V, AC output are impressed permanently on the hard metal output. This tension cannot be adjusted. A hard metal output is suitable for marking hardened materials e. g. tools. With the use of the hard metal output better results can be obtained on such materials as with the use of the standard connections.
  • Page 15 1. Loosen the 3 upper screws on both sides of the equipment. 2. Take off the cover of the equipment. Transformer appears: Fuse magnet valve Preset input voltage (here: 230 V) Sticker technical data Transformer Fig. 10014 3. Set the desired input voltage with the jumpers as shown on the sticker (2). The net frequency (50 or 60 Hz) is automatically detected by the equipment.

  • Page 16: Setting Up The Emp Or Modulmat

    3.2 Setting up the EMP or MODULMAT Note The connections for the cables on the back of the equipment are equipped with an isolating head. Both cables with plug can be tucked in and cables with suitable lugs can be tightened. Throttle cylinder speed Adjustment block Pressure gauge...
  • Page 17 12 Connection foot switch 16 Connection pump 13 Fuse magnet valve 17 Connection positive cable 14 Output magnet valve 18 Connection negative cable 15 Connection line cord 19 Hard metal output (option) Connections EU CLASSIC / EU EXPERT Fig. 10005 1.

  • Page 18: Modulmat

    MODULMAT Throttle for cylinder speed Connection foot switch Pressure reducing valve Compressed air connection Line cord Connection pump (at the side) Connections MODULMAT Fig. 10123 1. Plug in the line cord (3). 2. Tuck the plug of the electrolyte pump into the connection pump (6). 3.

  • Page 19: Preparing The Marking Head

    4. Lay the conductive net over the felt. 5. Clamp the felt and conductive net with the cartridge (3). 6. Attach the marking head to the EMP/MODULMAT (4, Fig. 10102, page 12). 7. Attach the stencil glued on stencil (5) to the stencil holder (3, Fig. 10102, page 12).
  • Page 20 2. Place the felt onto the marking head. 3. Bend the O-ring seal (2) over the felt. 4. Attach the marking head to the EMP/MODULMAT (4, Fig. 10102, page 12). 5. Attach the stencil glued on stencil (5) to the stencil holder (3, Fig. 10102, page 12).

  • Page 21: Operation

    Operation Electrolytes are oxidizing substances! Danger of poisoning. Do not swallow the electrolyte and do not bring it on the mucous mem- branes or eyes. Wash hands before pausing and after work. Open-end output voltage! Danger of life for persons with cardiac pacemaker. Work with the marking equipment is forbidden for persons with cardiac pacemaker.

  • Page 22: Programming A Marking With Eu Classic

    4.1 Programming a marking with EU CLASSIC After switching on the equipment is in the main menu. The last set values and settings remain also after switching off the equipment. 1. Switch on the equipment over MAIN SWITCH (1). Main menu appears, in the display (2) appears e. g. "MP=08.0 MT=04.0". In the main menu the pushbuttons AUTOMATIC, TIMER and PUMP have a function.
  • Page 23 Setting the During the pumping time the electrolyte pump runs. The pumping time begins at pumping time the same time as the marking time. 12. To increase the pumping time PT: press ↑ (4). Each press increases the pumping time in steps of 0.1 s. The maximum value is 10.0 s.

  • Page 24: Default Settings

    Default settings By pressing MENU when switching on the equipment all settings are put back to default setting: Marking power Marking time Pumping time off; 0.0 Retarding time off; 0.01 Current type LED AC = on LED DC = off TIMER LED T = off AUTOMATIC (Output magnet valve)

  • Page 25: Set The Adjustments

    Pushbutton Indication on display Function AUTOMATIC no A Output magnet valve is not available and not activated. inverted A Output magnet valve is available but not activated. Output magnet valve available and activated. TIMER no T Permanent function. Function timer, voltage is impressed when the foot switch is pressed.
  • Page 26 Setting the The marking power changes with the impressed voltage. In order to achieve a marking power long service life of the stencils, the marking power should be selected as small as possible. Increase the marking time with unsatisfactory marking results first, before the marking power is increased.
  • Page 27 Setting the During the pumping time the electrolyte pump runs. The pumping time begins at pumping time the same time as the marking time. 12. Press ↓ (5) until parameter "Pump time" appears. 13. Press ENTER (6). Arrow points at "PT = ...". 14.
  • Page 28 Note If the electrolyte designation is shorter than 5 digits, the last digits must be filled up with blanks. The blank is above the zero (reachable with ↑). 26. To reject the enter: press MENU (7). To assume the enter: press ENTER (6).

  • Page 29: Set The Marking Options For Pulse Marking

    Set the marking options for pulse marking In the menu "Mark options" parameters for a pulse marking are set. Generally the marking power should be selected as small as possible so that the template does not overheat. Increase the marking time with unsatisfactory marking results first, before the marking power is increased.
  • Page 30 Setting the During the off periode no current flows. The stencil does not continue to heat off periode itself. 10. Press ↓ (5) until parameter "Off periode" appears. 11. Press ENTER (6). 12. To increase the off periode: press ↑ (4). Each press increases the time of the off periode in steps of 0.1 s.

  • Page 31: Working With Files

    DC/AC marking Marking power during a pulse marking with direct (DC) and alternating current power (AC) that is impressed before shifting to the other current type. After shifting the marking power is impressed that is set in the menu "Adjustment" (see page 26). 24.

  • Page 32: Set The Language

    8. To load the data of a saved file: press ↓ (5) in menu "Files" until "Load file" appears. 9. Press ENTER (6). Arrow points at "No..". 10. Press ↑ (4) until desired file appears. 11. Press ENTER (6). All data of the file are loaded, the marking can be done.

  • Page 33: Query Of Service Data

    Query of service data In the menu "Service" important data for service technicians can be queried: • Operating hours: shows how long MAIN SWITCH was ON. • Item counter: shows how many markings are done overall. • Net frequency: shows the active net frequency. The information in the menu "Service"...

  • Page 34: Marking A Product

    4.3 Marking a product 1. Switch on the equipment over the MAIN SWITCH (1, Fig. 10008, page 21). 2. Program the marking (see paragraph 4.1 or 4.2). 3. Start the compressed air supply. 4. Press AUTOMATIC (9). 5. Press TIMER (10). Voltage drops to 0 V and is only impressed for the programmed marking time MT.

  • Page 35: Choice Of Electrolytes

    4.4 Choice of electrolytes With the electrolytes specified here you find a selection of the usually-used electrolytes. Electrolytes for special materials can be supplied after attempt markings in most cases. Number of Type of marking For marking of... electrolyte black/ deep white hard chrome plated metals...

  • Page 36: Trouble Shooting

    4.5 Trouble shooting Problem: No mark at all Check the following points: • Is the line cord plugged in? • Are all the other cables plugged in correctly? • Has been set a voltage? • Is the fuse on the backside of the control in order? •...

  • Page 37: Problem: Magnet Valve Does Not Operate

    Problem: Magnet valve does not operate Check the following points: • Is the magnet valve fuse (13, Fig. 10009, page 11) on the backside of the control in order? • Is the magnet valve fuse (1, Fig. 10014, page 15) on the transformer in order? To check this, the equipment must be opened.
  • Page 38 ÖSTLING - worldwide ÖSTLING Markiersysteme GmbH Broßhauser Str. 27 D-42697 Solingen Tel.: +49 - 212 - 26 96 0 Fax.: +49 - 212 - 26 96 199 Internet: http://www.ostling.com E-mail: info@ostling.com Switzerland France ÖSTLING ÖSTLING Markiersysteme AG Système de Marquage Eichenweg 16 Technopôle Metz 2000...
