2.2 Operating devices and components

1
2
3
4
5
6
7
8
9
10 TIMER

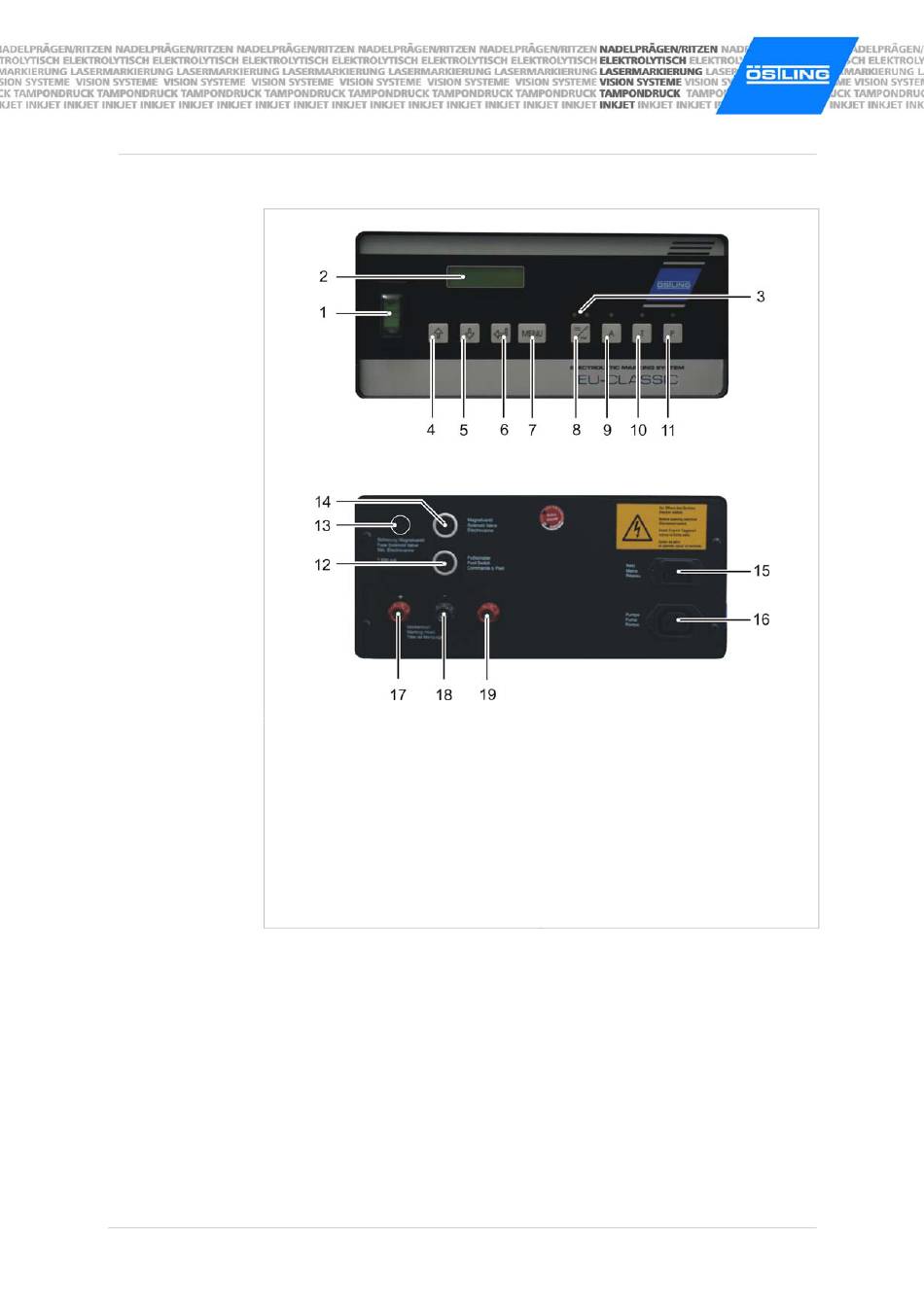

Operating devices EU CLASSIC / EU EXPERT
The grasp handle (not illustrated) serves for carrying and inclining/slanting the
equipment. With pressure on the two lateral pushbuttons the grasp handle can
be adjusted in 30°-steps.
ÖSTLING Markiersysteme GmbH
MAIN SWITCH
Display
LEDs AC and DC
Pushbutton ↑ (increase values)
Pushbutton ↓ (decrease values)
ENTER
MENU
Pushbutton AC/DC
AUTOMATIC
11 PUMP
12 Connection foot switch
13 Fuse magnet valve
14 Output magnet valve
15 Connection line cord
16 Connection pump
17 Connection positive cable
18 Connection negative cable
19 Hard metal output (option)
B_EU_EMP_en.doc
Operation manual EMP
Fig. 10009
