With MODULMAT, which is the compact design, control and mechanics are
integrated into a plastic housing. Most connections are already factory-installed
cabled. The connections at the back of the control are not accessible. The
connections, which you as a customer must reach, are shifted on the back of
the plastic housing:
1
2
3

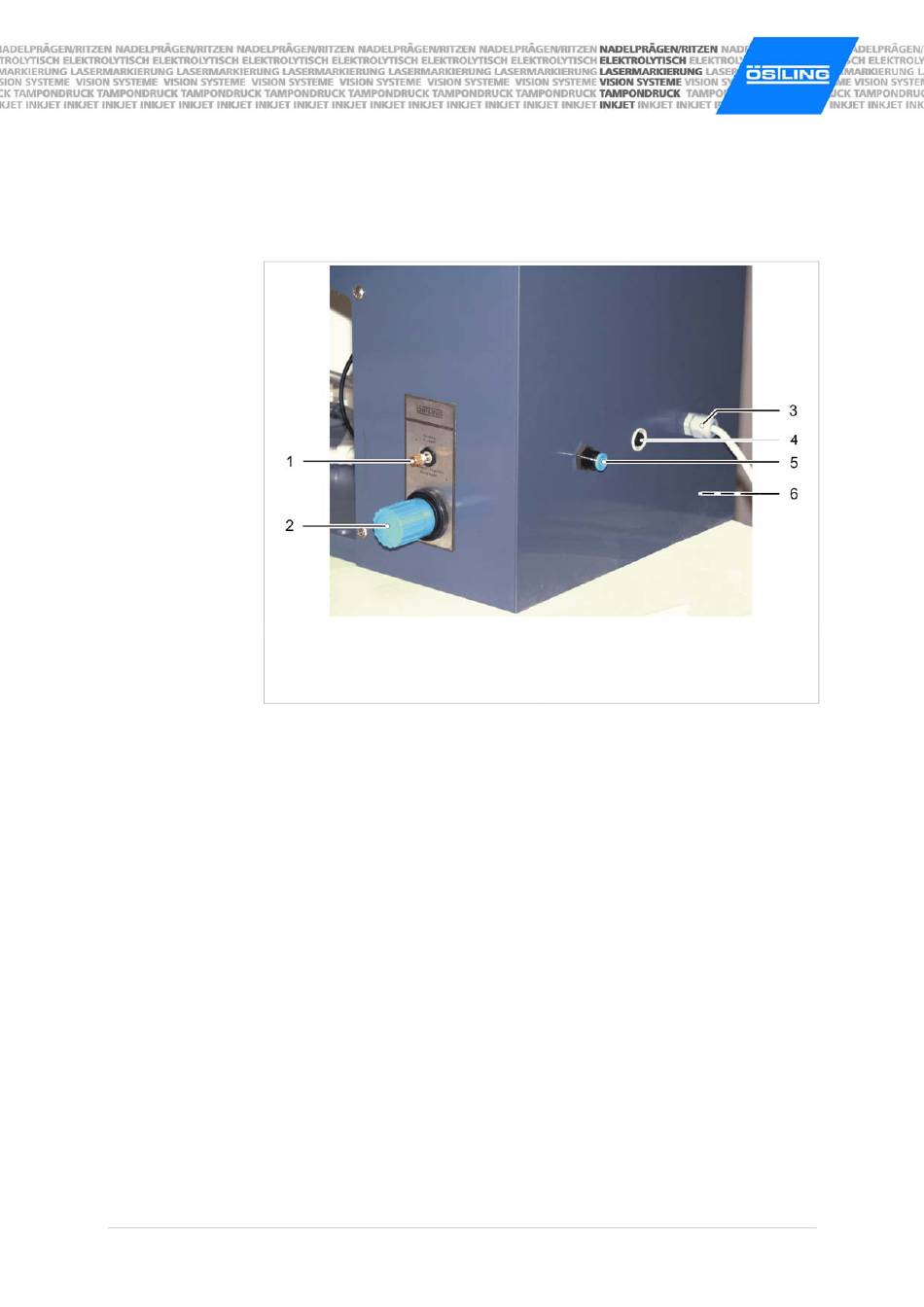

Deviant components MODULMAT
Note
Depending upon ordered design the appearance of the EMP/MODULMAT can
deviate slightly from these illustrations.
ÖSTLING Markiersysteme GmbH
Throttle for cylinder speed
Pressure reducing valve
Line cord
4 Connection foot switch
5 Compressed air connection
6 Connection pump (at the side)
