3.3 Preparing the marking head

Black/white A black/white marking is possible on most of the metals, see page 35.
marking
1
2
3

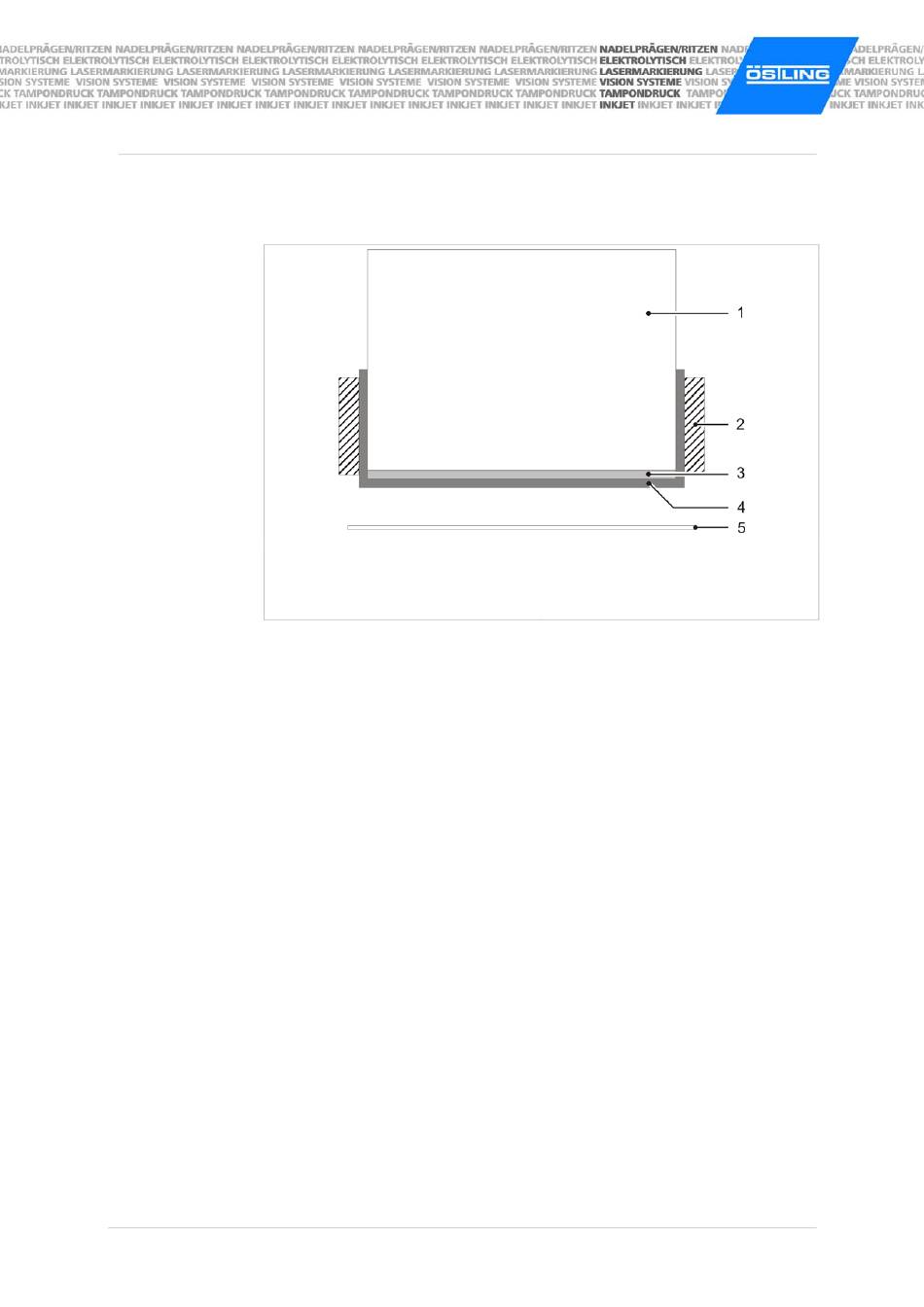

Marking head for black/white markings
1. Tailor black felt (3) to the size of the surface of the marking head (2).
2. Tailor conductive net (4) so that it gets over approx. 15 mm at all sides of
3. Place the felt onto the marking head.
4. Lay the conductive net over the felt.
5. Clamp the felt and conductive net with the cartridge (3).
6. Attach the marking head to the EMP/MODULMAT (4, Fig. 10102, page 12).
7. Attach the stencil glued on stencil (5) to the stencil holder (3, Fig. 10102,
ÖSTLING Markiersysteme GmbH
Marking head
Cartridge
Black felt
the marking head.
page 12).
4 Conductive net
5 Stencil glued on stencil cover
B_EU_EMP_en.doc
Operation manual EMP
Fig. 10103
