OSTLING EMP/MODULMAT Operating Manual page 15

Electrolytic marking system
Table of Contents

Advertisement

1. Loosen the 3 upper screws on both sides of the equipment.
2. Take off the cover of the equipment.
1
2
Transformer
3. Set the desired input voltage with the jumpers as shown on the sticker (2).
The net frequency (50 or 60 Hz) is automatically detected by the equipment.
Note
The 24V, DC output (output magnet valve) is secured with a second fuse (1)
additionally to the magnet valve fuse on the back of the equipment. This fuse
prevents the destruction of the internal jumper rectifier with a overcurrent
(>1 A), which can be caused e.g. by a short-circuit. The rated current intensity
of the fuse stands on the sticker (2).
ÖSTLING Markiersysteme GmbH

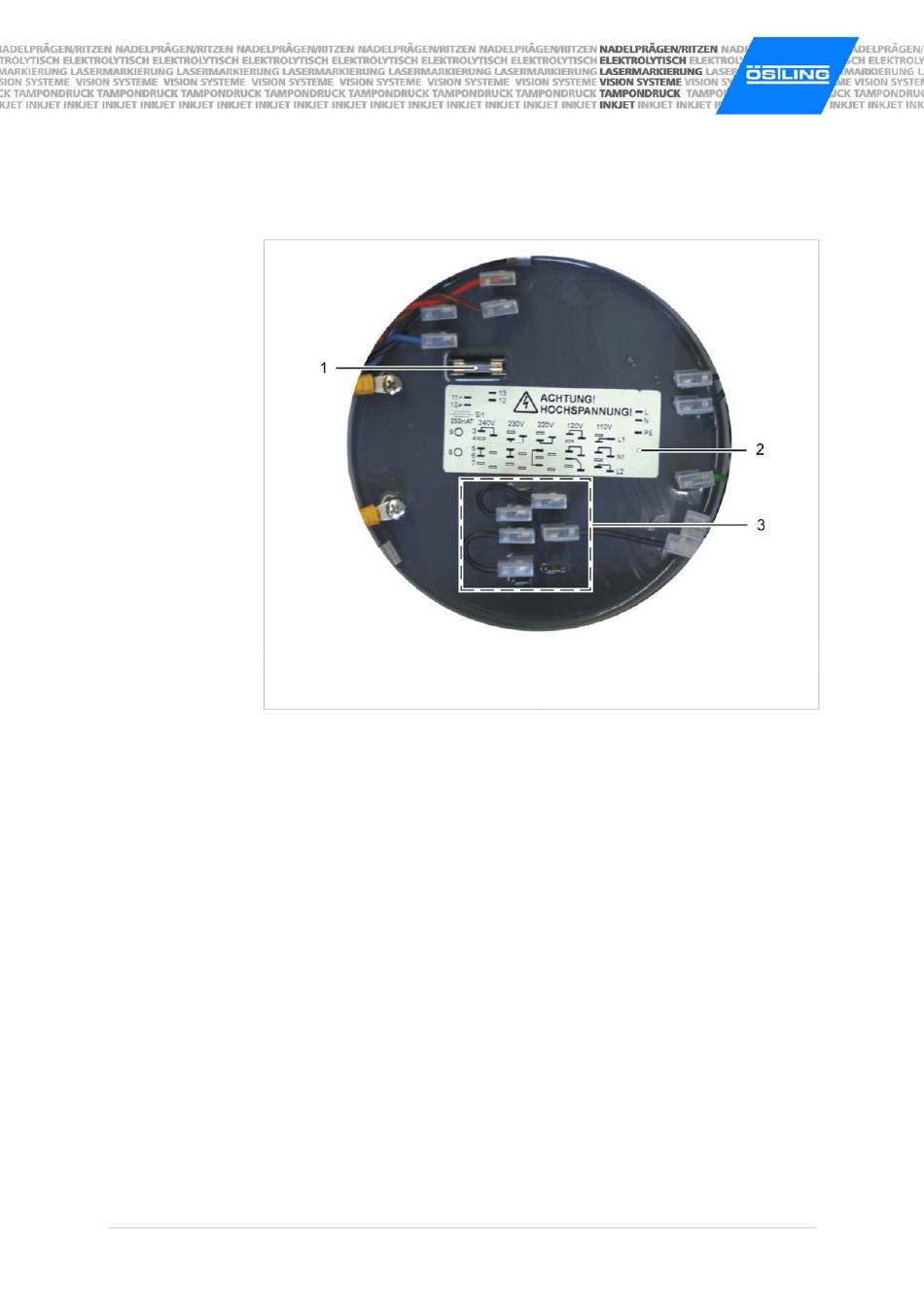

Transformer appears:
Fuse magnet valve
Sticker technical data
3
Preset input voltage (here: 230 V)
B_EU_EMP_en.doc
Operation manual EMP
Fig. 10014
15
