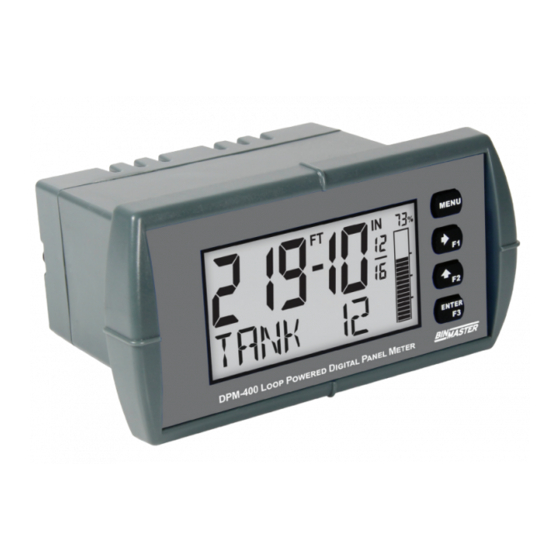

DPM-400
Loop-Powered Process Meter
Feet & Inches Display
FEATURES
•
4-20 mA Input
•
Loop-Powered Process Meter
•
1.5 Volt Drop (4.5 Volt Drop with Backlight)
•
Loop-Powered Backlight with Red Backlight for
Alarm Conditions
•
NEMA 4X, IP65 Front
•
- 40 to 167°F (-40 to 75°C) Safe Area Operating
Temperature Range
•
Free PC-Based USB Programming Software
•
5-Digit Alphanumeric Top Line
Decimal Display with Bargraph
•
8-Digit Alphanumeric Bottom Line
•
Displays Level in Feet & Inches up to 999 Feet,
11 & 15/16 Inches
•
20-Segment Bargraph with Numeric Percent Indication
•
Conformal Coated PCBs for Dust & Humidity Protection
•
Two Open Collector Outputs Standard
•
Optional Loop-Powered Solid-State Relays
•
Optional 4-20 mA Analog Output
•
Relay Pump Alternation Based on Level and Runtime
•
Display Relay Runtime and Cycle Count
www.binmaster.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPM-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BINMASTER DPM-400

Summary of Contents for BINMASTER DPM-400

  • Page 1 DPM-400 Loop-Powered Process Meter Feet & Inches Display Decimal Display with Bargraph FEATURES • • 4-20 mA Input 8-Digit Alphanumeric Bottom Line • • Loop-Powered Process Meter Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches •...
  • Page 2 Further enhancing the display on these instruments is a 20-segment bargraph available on the DPM-400 that also includes a numeric value of the percentage the bargraph represents. There is even a model that displays level in feet and inches for customers who prefer to see their levels represented that way rather than in decimal format.
  • Page 3 The DPM-400's display provides multiple ways to help users understand and keep track of their processes. The most obvious is There are DPM-400 models available for users that prefer to see the dual line which typically allows the user to display a numeric value their level displayed in feet &...

  • Page 4: Max/Min Display

    Loop-Powered Relay Alarm Trip programmed to reset the max & min readings. The DPM-400, with its two solid state relays, can be used as a loop- Predefined and Custom Units powered relay alarm trip in general purpose areas. The DPM-400’s two...

  • Page 5: Pump Control

    Timer Function Application Pump Alternation Application The DPM-400 can be used as a pump controller to alternate two Application Timers are used in everyday life; one of the most common pumps and provide high and low level alarm indication. The pumps can examples is the microwave oven.

  • Page 6: Multi-Point Linearization

    SIGNAL INPUT CONDITIONING Loop-Powered Isolator for General Purpose Areas The DPM-400 can be used as a loop-powered isolator for the 4-20 To satisfy applications that require scaling in ways other than the usual mA signal in general purpose areas with the added benefit of a digital 2-point linear method, the DPM-400 can also be scaled for square readout to display the process variable.

  • Page 7: Mounting Dimensions

    A digital input is standard on the meter. This digital input is connected (62mm) with a normally open contact across DI+ and DI-, or with an active low signal applied to DI+. DPM-400 LOOP POWERED DIGITAL PANEL METER DI+ DI- mA- mA+ 4.68" (119mm) ▲...

  • Page 8: Specifications

    Bottom line: 8 digits (-9,999,999 to 99,999,999; separated by commas) Thermoplastic and stainless steel NEMA 4X, and painted steel or 8 characters (all capital & most lower case letters) NEMA 4 enclosures for up to 10 DPM-400 meters are available. Bargraph: 20 segments, numeric percent indication at top PD6604-BM: Top line: 5 digits (-9999 to 99999) or 5 characters (all capital &...
  • Page 9 DPM-400 Loop-Powered Process Meter General Open Collector Outputs Environmental: Operating temperature range: Rating: Two NPN, Isolated open collector, 30 VDC @ 150 mA max -40 to 75°C for safe area products Output Assignment: Pulse, Alarm, Timer, Stopwatch on/off, or Disable Storage temperature range: -40 to 85°C...
  • Page 10 DPM-400 Loop-Powered Process Meter FREE SIMPLE-TO-USE METERVIEw XL PROGRAMMING SOFTwARE Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use.

  • Page 11: Ordering Information

    Disclaimer PD6603–L3N-BM 4-20 mA Analog Output The information contained in this document is subject to change without notice. BinMaster Corporation makes no representations or warranties with respect to the contents hereof, and Loop-Powered, General Purpose, Feet & Inches, specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
