3.9 Digital Zoom (ZOOM)

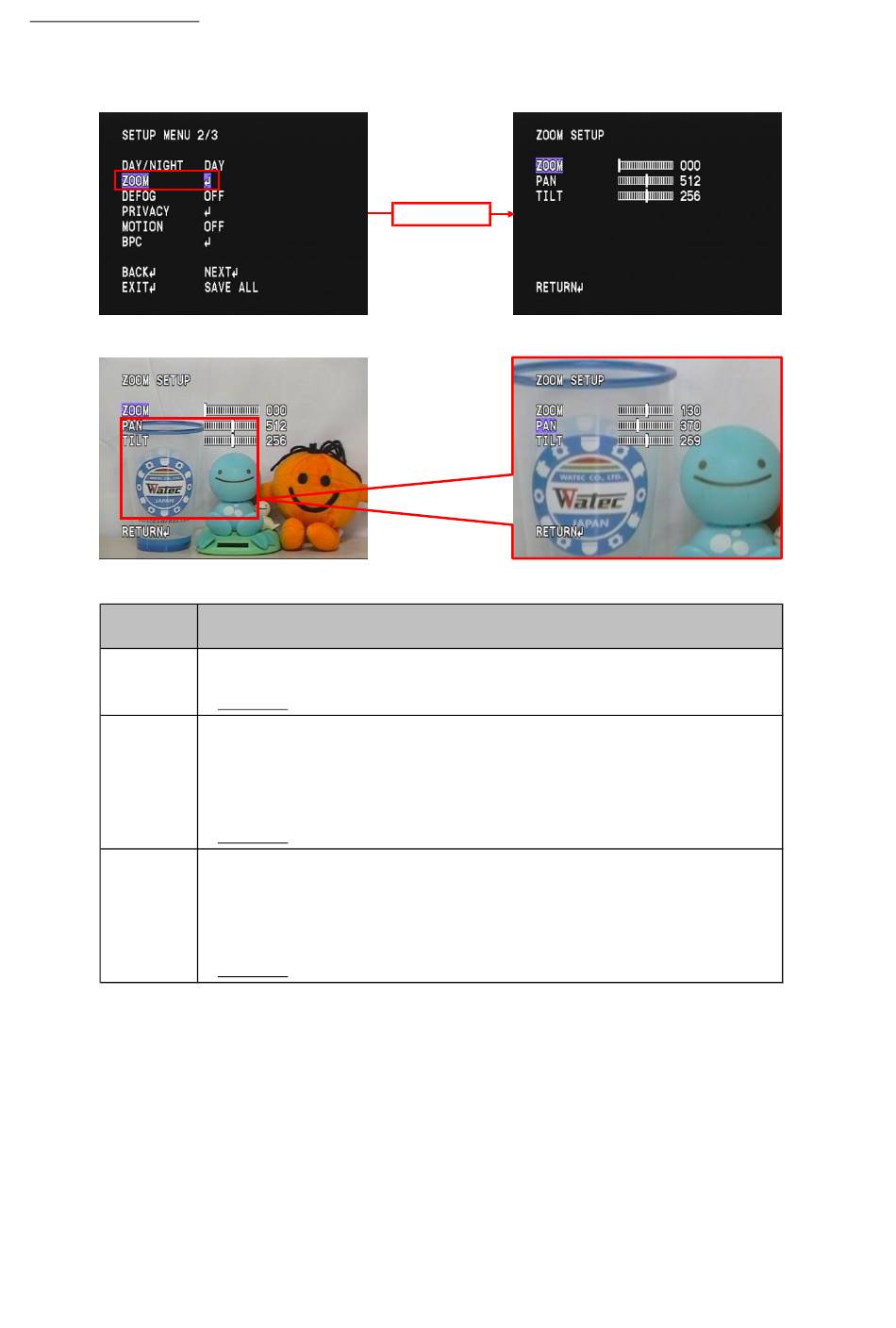

Set the digital zoom function (ZOOM). The function allows you to magnify and display a part of the screen. Place the cursor on ZOOM and press the
ENTER key to display the ZOOM SETUP menu. Move the cursor up and down and use the LEFT / RIGHT key to adjust the item you want to.
(ZOOM SETUP
MENU)
ZOOM
PAN
TILT
Before
Set the magnification of the digital zoom.
Set the magnification within the range from x1 to x256. Use the LEFT / RIGHT keys to set the magnification.
*Default: 000
Specify the image position in the horizontal direction (invalid when the magnification 1.0 is selected).
Set the imaging position within the range from 000 (left end) to 512 (middle) to 1023 (right end).
Use the LEFT / RIGHT keys to set the imaging position.
*PAN is a function that uses the surplus of the area enlarged with ZOOM, therefore the operation range
may vary depending on the magnification.
*Default: 512
Specify the image position in the vertical direction (invalid when the magnification 1.0 is selected).
Set the imaging position within the range from 000 (upper end) to 256 (middle) to 511 (lower end).
Use the LEFT / RIGHT keys to set the imaging position.
*TILT is a fuction that uses the surplus of the area enlarged with zoom, therefore the operation range may
vary depending on the magnification.
*Default: 256
ENTER
OPERATION
41
After
