2. OSD Menu Operation

The functions and parameter settings of WAT-233 can be changed by OSD (On Screen Display).
When operating OSD, Controller is used.
a)When using the Controller,vertically insert the connector fully until it clicks.
b)When disconnecting the Controller, pull the connector while pinching the Lock.
Controller has five buttons: UP/DOWN/LEFT/RIGHT/ENTER.
Use 5 buttons above to operate OSD Menu.
1)UP / 2)DOWN : Mainly to move the cursor up and down to select an item on the lists on OSD Menu.
3)LEFT / 4)RIGHT : Mainly to adjust and change the functions on each list on OSD Menu.
5)ENTER : Mainly to execute the selected list and function on OSD Menu.
The symbol "↵" will be on some lists on OSD Menu to indicate that there are Sub Menus or selectable options by pressing 5)Enter.

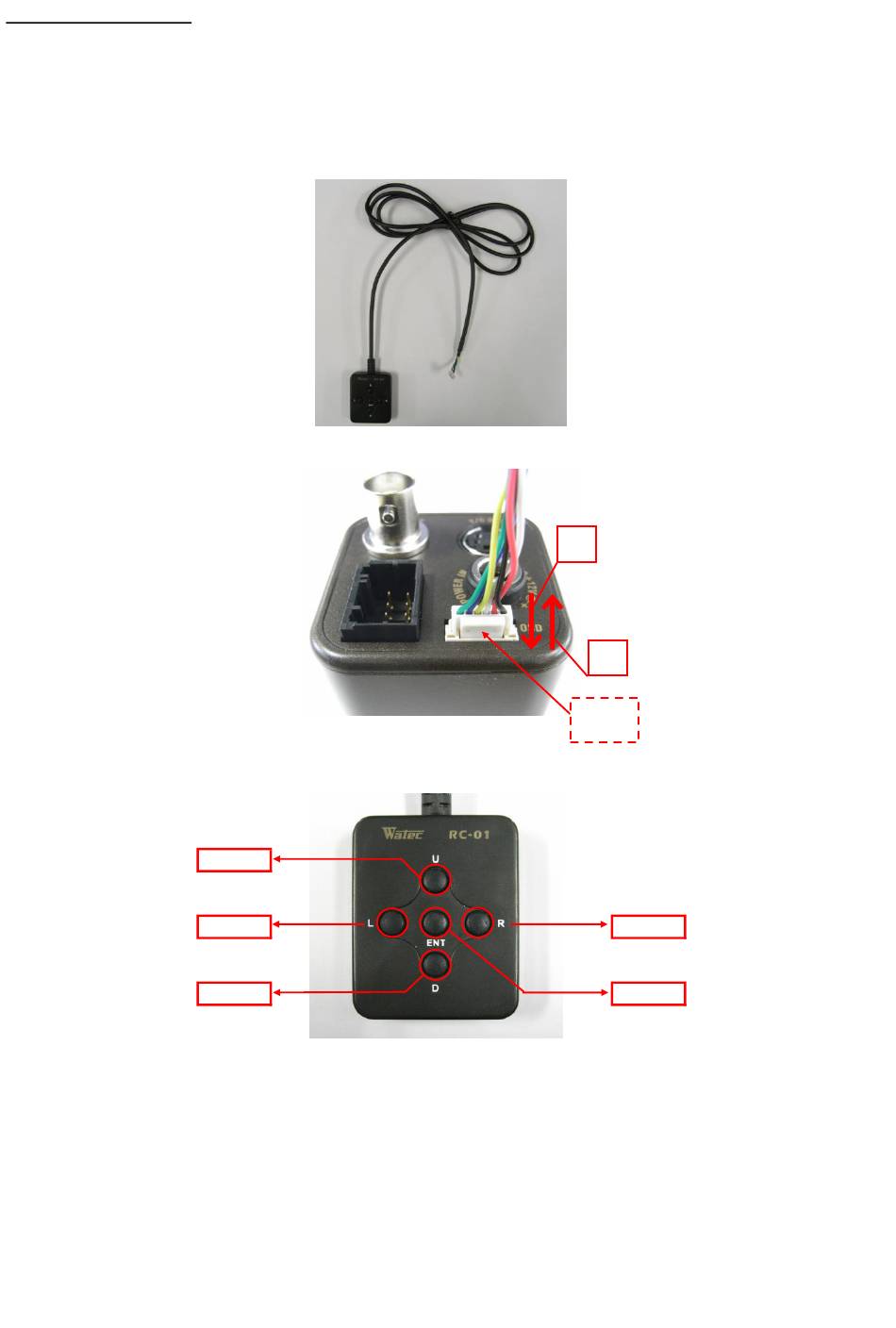

How to Connect a Controller
1)UP
3)LEFT
2)DOWN
The operation portion of the Controller
Controller Overview
6
a)
b)
Lock
4)RIGHT
5)ENTER
