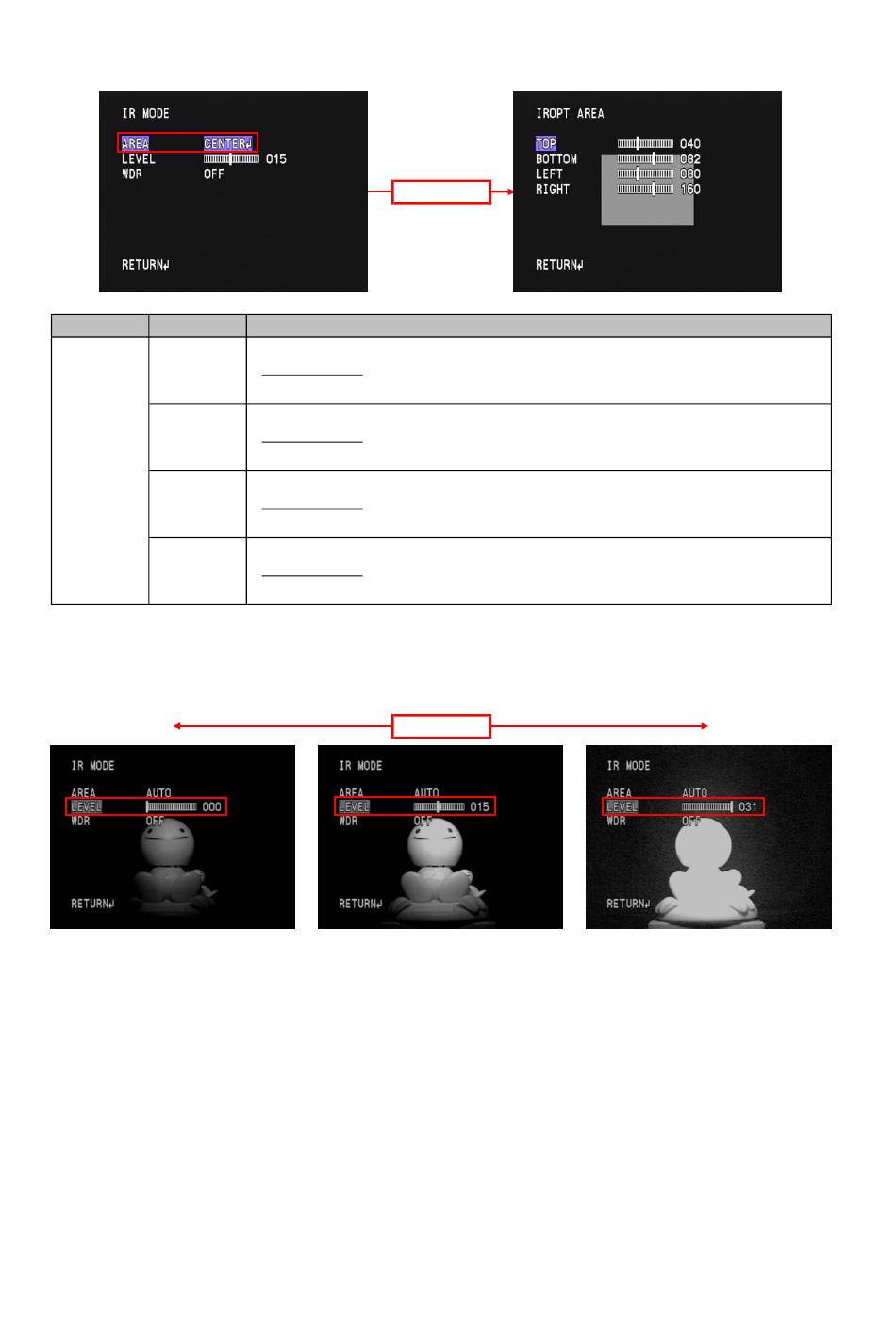

○Fixed frame emphasis mode area setting
When CENTER is selected, pressingthe ENTER key displays the IROPT AREA menu. Use the UP / DOWN keys to move the cursor up or down and select the
item you want to adjust. Use the LEFT / RIGHT/key to make the adjustment.
AREA
(IROPT AREA MENU)
TOP
BOTTOM
CENTER
LEFT
RIGHT
○LEVEL Settings
If the setting value is decreased too much, the gain value will fall below the set value of from NIGHT to DAY. Therefore, there is a possibility that hunting
may occur, so please make thprough evaluation in the use environment. In case of hunting, increase the set value of LEVEL, or lower the illuminance
of the infrared projector.
LEVEL = 000
Sets the upper position of the area. TOP can be set within the range of 001-114(136).
*Default : 040(048)
*( ): the setting values of PAL
Sets the lower position of the area. BOTTOM can be set within the range of 009-122 (144).
*Default : 082(096)
*( ): the setting values of PAL
Sets the left position of the area. BOTTOM can be set within the range of 001-223.
*Default : 080(082)
*( ): the setting values of PAL
Sets the right position of the area. BOTTOM can be set within the range of 017-239.
*Default : 160(156)
*( ): the setting values of PAL
LEFT/RIGHT
LEVEL = 015
ENTER
OPERATION
39
LEVEL = 031
