3.4 Picture Adjustment (ADJUST)

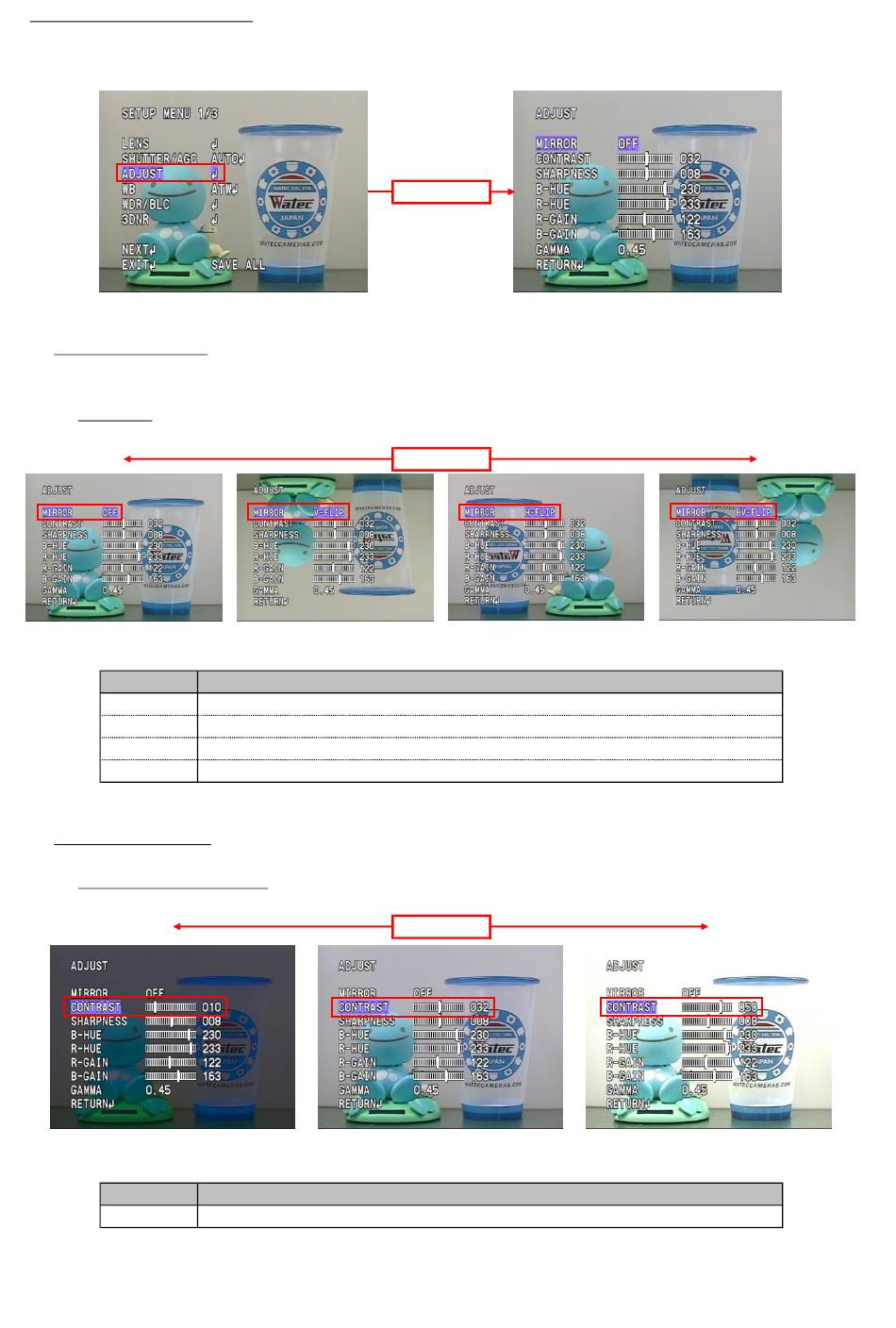

Adjust image quality. Move the cursor to ADJUST and press the ENTER key to display the ADJUST menu. Move the cursor up or down with UP / DOWN key
and select the item you want to adjust.

3.4.1 Image Flip (MIRROR)

Set the image flip processing (MIRROR) Use the LEFT / RIGHT key to select from normal (OFF), left / right inversion (H - FLIP), upside down (V - FLIP),
left / right up - down (HV - FLIP).
*Default : OFF
OFF
MIRROR
OFF
V-FLIP
H-FLIP
HV-FLIP

3.4.2 Contrast (CONTRAST)

Set the contrast (CONTRAST) settings. Use the LEFT/RIGHT key to adjust the contrast.
*The factory default value may vary.
CONTRAST = 10
CONTRAST
000-063
V-FLIP
Normal image
Horizontal image flip
Vertical image flip
Horizontal and vertical image flip. Rotating the image by 180 degrees.
The smaller the setting value, the lower the contrast. The larger the setting value, the higher the contrast.
ENTER
LEFT/RIGHT
H-FLIP
OPERATION
LEFT/RIGHT
CONTRAST = 32
OPERATION
20
HV-FLIP
CONTRAST = 50
