Line Keys

The IP 706 phone has 6 line keys, while the IP 712 phone has 12 line keys. These keys are located on either

side of the LCD display. See

each model.

Each line key is identified in the label area on the LCD located adjacent to the key. Each line key label can

contain a maximum of 17 characters.

The line keys can be programmed as a secondary extension, a speed dial entry, or as a shortcut to the do not

disturb (DND) feature. Each of these features require additional configuration and are explained in greater

detail later in this guide.

Line Keys

1 through 6

Soft Key

Options

4 Soft Keys

Soft Keys

There are four soft keys on both phone models, located at the bottom of the LCD screen. Soft key functions

change according to the LCD menus. As choices are made while navigating the phone's menu system,

different options become available and are displayed on the LCD screen directly above each soft key.

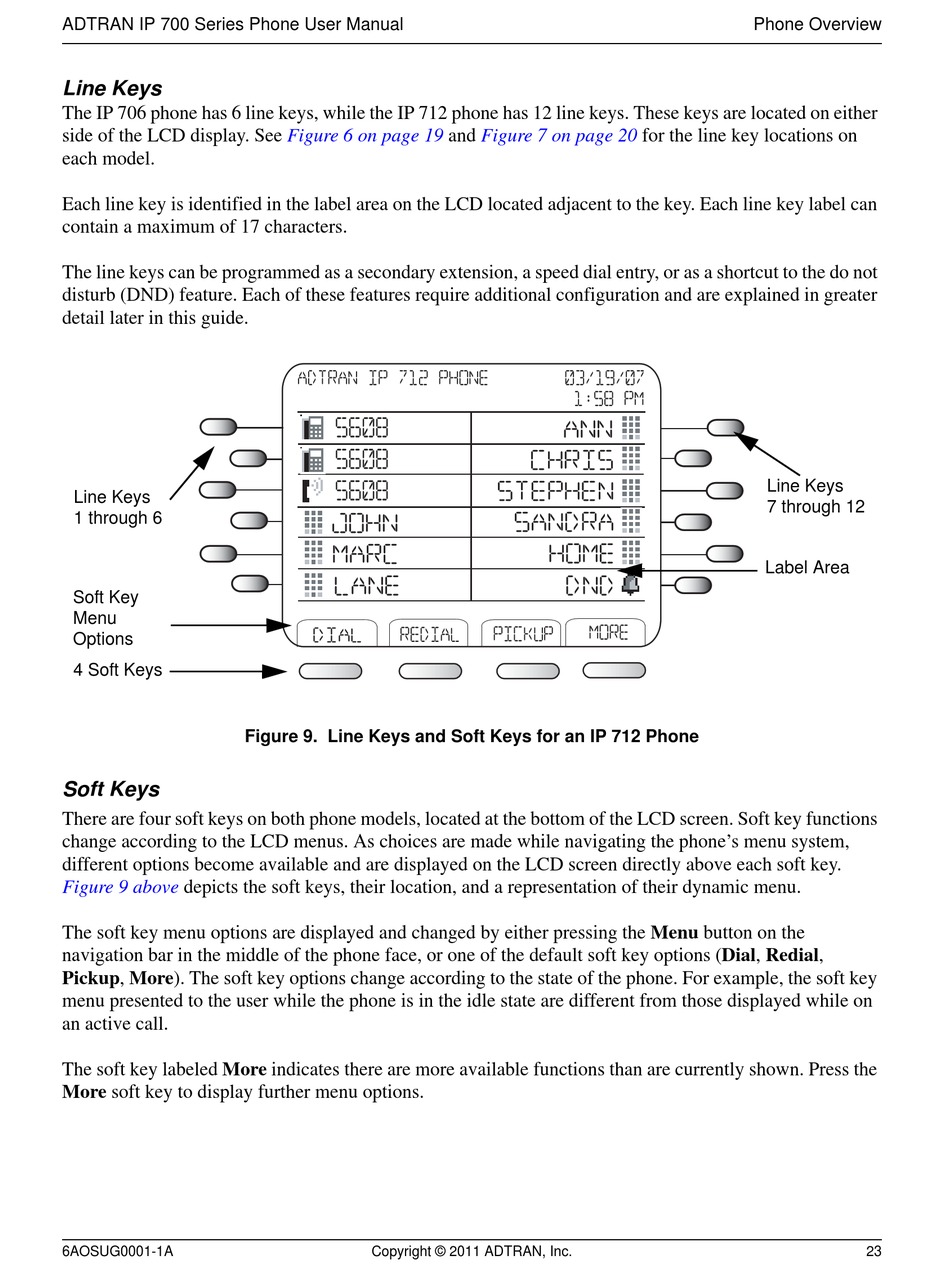

Figure 9 above

depicts the soft keys, their location, and a representation of their dynamic menu.

The soft key menu options are displayed and changed by either pressing the Menu button on the

navigation bar in the middle of the phone face, or one of the default soft key options (Dial, Redial,

Pickup, More). The soft key options change according to the state of the phone. For example, the soft key

menu presented to the user while the phone is in the idle state are different from those displayed while on

an active call.

The soft key labeled More indicates there are more available functions than are currently shown. Press the

More soft key to display further menu options.
