I/O Outlets

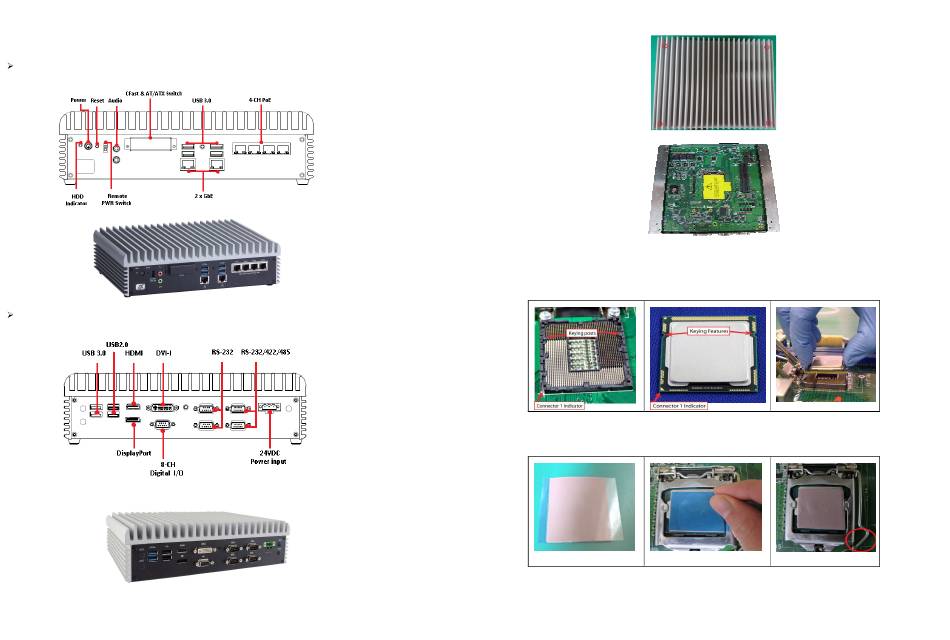

The following figures show you I/O outlets on front and rear panels of the

eBOX671-885-FL Series.

Front View

Rear View

Version A2 June 2017

Printed in Taiwan

9416K671010E

Installing the CPU processor

Step 1

There are four screws on the top heatsink.

Step 2

Loosen these screws to remove the top heatsink.

Step 3

Disengage load lever by releasing down and out on the hook.

Locate connection 1 indicator on the processor which

Step 4

aligns with connection 1 indicator chamfer on the

socket.

Step 5

Place the processor into the socket body vertically

then follow the below photos to set thermal pad.

Step 6

Fasten four screws to assemble top heatsink with main

chassis to finish installation.

Version A2 June 2017

Printed in Taiwan

9416K671010E
