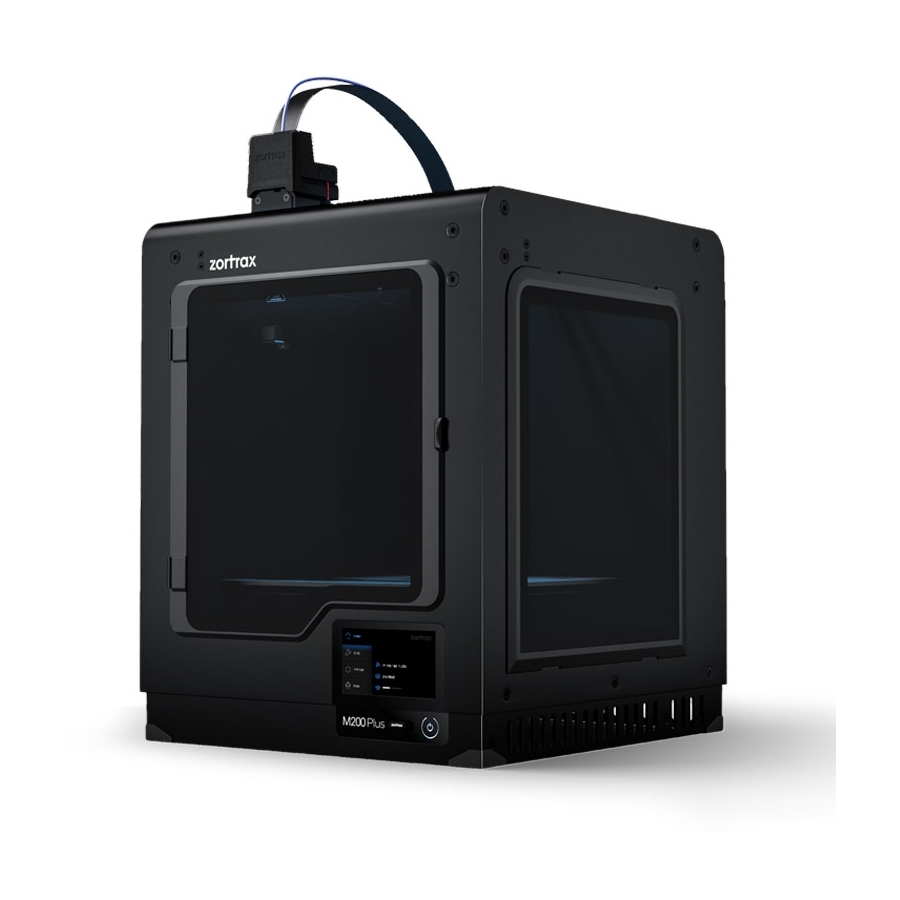

zortrax M200 Plus Faq

Knowledge base
Hide thumbs Also See for M200 Plus:

Advertisement

Quick Links

Download this manual
Knowledge Base
SOURCE:
https://support.zortrax.com/m200-plus-knowledge-base/

Advertisement

loading
Need help?

Need help?

Do you have a question about the M200 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for zortrax M200 Plus

Summary of Contents for zortrax M200 Plus

  • Page 1 Knowledge Base SOURCE: https://support.zortrax.com/m200-plus-knowledge-base/...
  • Page 2 Table Of Content Useful Terms General Questions Models General Notices...
  • Page 3 Useful Terms Here’s a short overview of technical terms which are most commonly used in the whole Zortrax experience. If you’re new to 3D printing technology, the list below organizes and helps to understand all the necessary terms. EXTRUDER the mechanism which ensures material feeding, heating and extruding as well as cooling of the print.
  • Page 4 The material guide in the Zortrax M200 Plus has to be attached to the extruder and to the material endstop placed at the back of the printer.
  • Page 5 the heatbed and the perforated plate. Both parts are connected together with the use of screws and Pogo pins. The heatbed provides proper platform heating, whereas the perforated plate increases adhesion of the model to the platform surface. The platform can easily be removed or put back in place.
  • Page 6 There are four stepper motors in each Zortrax printer: two that are responsible for the extruder’s motion, one which allows the platform’s vertical motion, and one which enables material loading.
  • Page 7 Z-SUITE the application created specifically for Zortrax devices. Z-SUITE prepares a model for 3D printing by generating the file in the .zcodex format. Z-SUITE allows the users to change and adjust the print settings, such as the size of the model, layer thickness, the type of infill, or how many support structures will be generated.
  • Page 8 Zortrax M200 Plus is equipped with a number of hardware and software improvements comparing with the standard M200. First of all, the M200 Plus has a touchscreen and a Wi-Fi module, which enable fast and intuitive operation of the device as well as wireless...
  • Page 9 How can I connect my printer to a network? Zortrax M200 Plus can be connected to a local network in two ways: via Wi-Fi or an Ethernet cable. Both methods allow you to manage the printer directly from Z-SUITE and make it possible to remotely transfer .zcodex files to the printer.
  • Page 10 First of all, place the printer on a flat and stable surface. Always provide adequate conditions: avoid drafts and ensure appropriate temperature (between 21 and 28 ?C / 70 – 82 ?F) in the print room. We also recommend that you use the Zortrax HEPA Cover as...
  • Page 11 While working with Zortrax M Series printers, follow the rules included in maintenance guides for each model: M200, M200 Plus and M300. Where can I find the Warranty Card for the Zortrax M200 Plus? What are the main warranty terms? The Warranty Card is available at the Support Center.
  • Page 12 does not operate as intended, the Manufacturer or the Authorized Reseller/Distributor will repair the machine or replace the defective parts. However, the Warranty does not cover any damage resulting from improper use of the printer as well as all consumable parts, such as cables, perforated plate, nozzle, etc.
  • Page 13 – from prototypes of equipment used outside and casing elements to architectural mock-ups and interior design elements. The Zortrax M200 Plus is compatible with all materials for the standard M200, but in addition, it has been adapted to work with Z-SEMIFLEX. It is a material with unique characteristics, including high elasticity and rubber-like properties.
  • Page 16 Zortrax M200 Plus 3D printer operates at high temperatures and has easily accessible movable components, therefore, you must be particularly careful when handling or operating the device. While operating the printer, it is extremely important to avoid situations that may lead to burns or interference in the device’s proper functioning.
