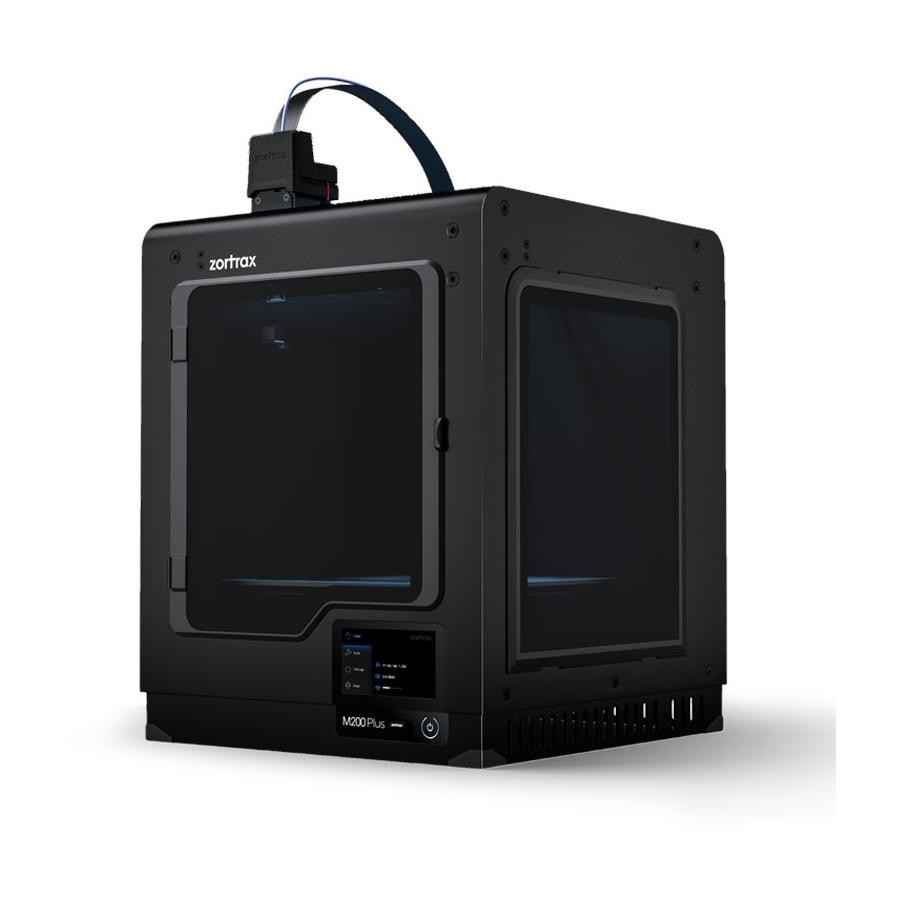

zortrax M200 Plus Replacement
Perforated plate replacement
Hide thumbs
Also See for M200 Plus:
- User manual (60 pages) ,
- First use preparations (20 pages) ,
- Packing (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for zortrax M200 Plus
Summary of Contents for zortrax M200 Plus
- Page 1 Perforated Plate Replacement SOURCE: https://support.zortrax.com/m200-plus-perforated-plate-replacement/...
-
Page 2: Table Of Contents
Table Of Content Unplugging the Power Cable Unplugging the Heatbed Cable (from the Z-axis Cover) Platform Removal Unplugging the Heatbed Cable (from the Platform) Unscrewing the Perforated Plate Cleaning the Heatbed Securing the Perforated Plate Platform Installation Plugging the Heatbed Cable (into the Z-axis Cover) Plugging the Power Cable... -
Page 3: Unplugging The Power Cable
Unplugging the Power Cable Turn off the printer and unplug the power cable. -
Page 4: Unplugging The Heatbed Cable (From The Z-Axis Cover)
Unplugging the Heatbed Cable (from the Z-axis Cover) Unplug the heatbed cable from the Z-axis cover. -
Page 5: Platform Removal
Platform Removal Remove the platform with the heatbed cable from the printer. -
Page 6: Unplugging The Heatbed Cable (From The Platform)
Unplugging the Heatbed Cable (from the Platform) Unplug the heatbed cable from the platform. -
Page 7: Unscrewing The Perforated Plate
Unscrewing the Perforated Plate Unscrew the screws to separate the perforated plate from the heatbed. -
Page 8: Cleaning The Heatbed
Cleaning the Heatbed Remove material remains from the heatbed using a piece of cloth or, if it is necessary, use a spatula. -
Page 9: Securing The Perforated Plate
Securing the Perforated Plate Secure the new perforated plate to the heatbed with the screws. -
Page 10: Platform Installation
Platform Installation Place the heatbed cable behind the heatbed mount and install the platform back in the printer. -
Page 11: Plugging The Heatbed Cable (Into The Z-Axis Cover)
Plugging the Heatbed Cable (into the Z-axis Cover) Plug the heatbed cable into the Z-axis cover. -
Page 12: Plugging The Power Cable
Plugging the Power Cable Plug the power cable in.
