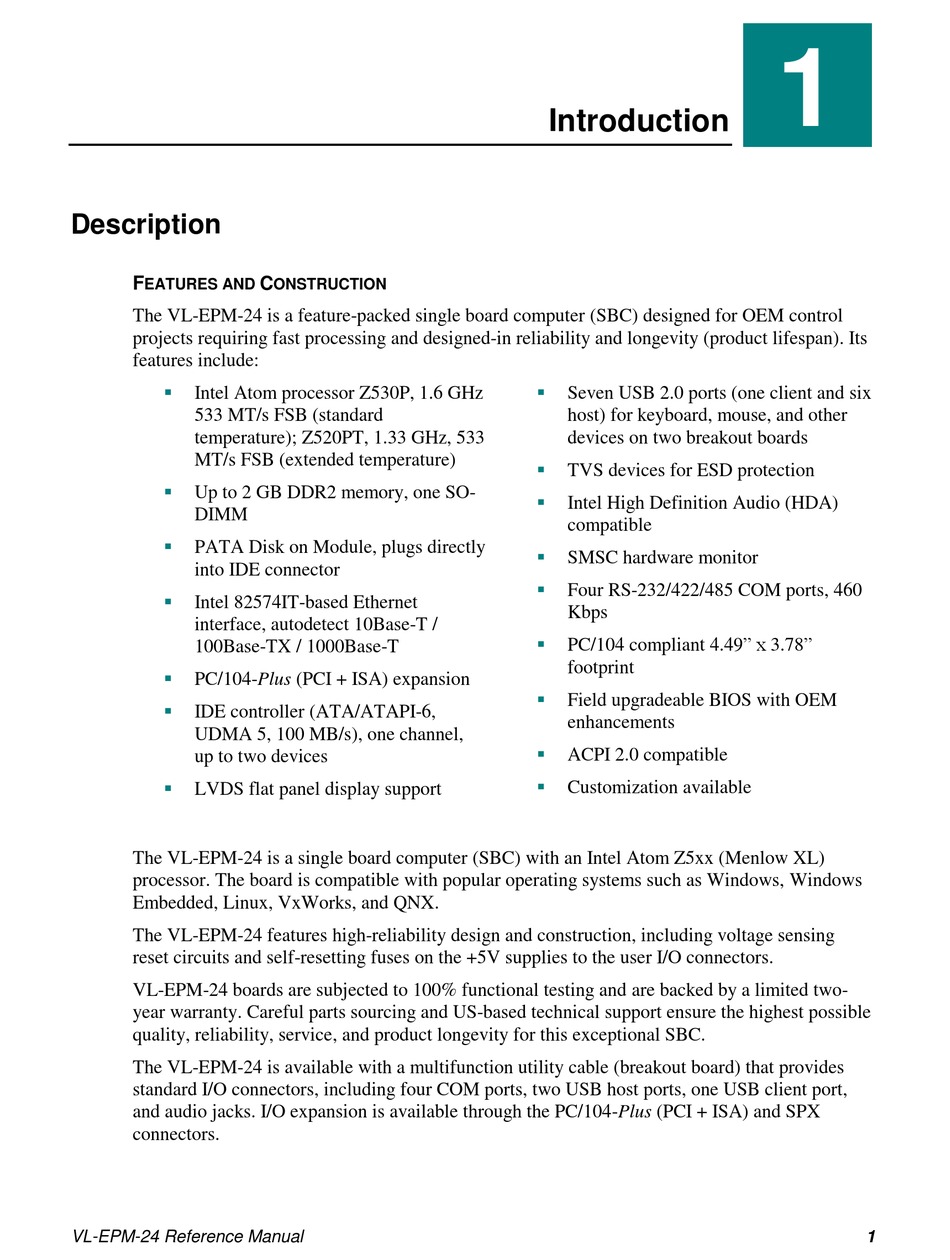

Description

F
EATURES AND
The VL-EPM-24 is a feature-packed single board computer (SBC) designed for OEM control
projects requiring fast processing and designed-in reliability and longevity (product lifespan). Its
features include:

Intel Atom processor Z530P, 1.6 GHz
533 MT/s FSB (standard
temperature); Z520PT, 1.33 GHz, 533
MT/s FSB (extended temperature)

Up to 2 GB DDR2 memory, one SO-
DIMM

PATA Disk on Module, plugs directly
into IDE connector

Intel 82574IT-based Ethernet
interface, autodetect 10Base-T /
100Base-TX / 1000Base-T

PC/104-Plus (PCI + ISA) expansion

IDE controller (ATA/ATAPI-6,
UDMA 5, 100 MB/s), one channel,
up to two devices

LVDS flat panel display support
The VL-EPM-24 is a single board computer (SBC) with an Intel Atom Z5xx (Menlow XL)
processor. The board is compatible with popular operating systems such as Windows, Windows
Embedded, Linux, VxWorks, and QNX.
The VL-EPM-24 features high-reliability design and construction, including voltage sensing
reset circuits and self-resetting fuses on the +5V supplies to the user I/O connectors.
VL-EPM-24 boards are subjected to 100% functional testing and are backed by a limited two-
year warranty. Careful parts sourcing and US-based technical support ensure the highest possible
quality, reliability, service, and product longevity for this exceptional SBC.
The VL-EPM-24 is available with a multifunction utility cable (breakout board) that provides
standard I/O connectors, including four COM ports, two USB host ports, one USB client port,
and audio jacks. I/O expansion is available through the PC/104-Plus (PCI + ISA) and SPX
connectors.
VL-EPM-24 Reference Manual
C
ONSTRUCTION

Introduction


Seven USB 2.0 ports (one client and six
host) for keyboard, mouse, and other
devices on two breakout boards

TVS devices for ESD protection

Intel High Definition Audio (HDA)
compatible

SMSC hardware monitor

Four RS-232/422/485 COM ports, 460
Kbps
 PC/104 compliant 4.49" x 3.78"
footprint

Field upgradeable BIOS with OEM
enhancements

ACPI 2.0 compatible

Customization available
