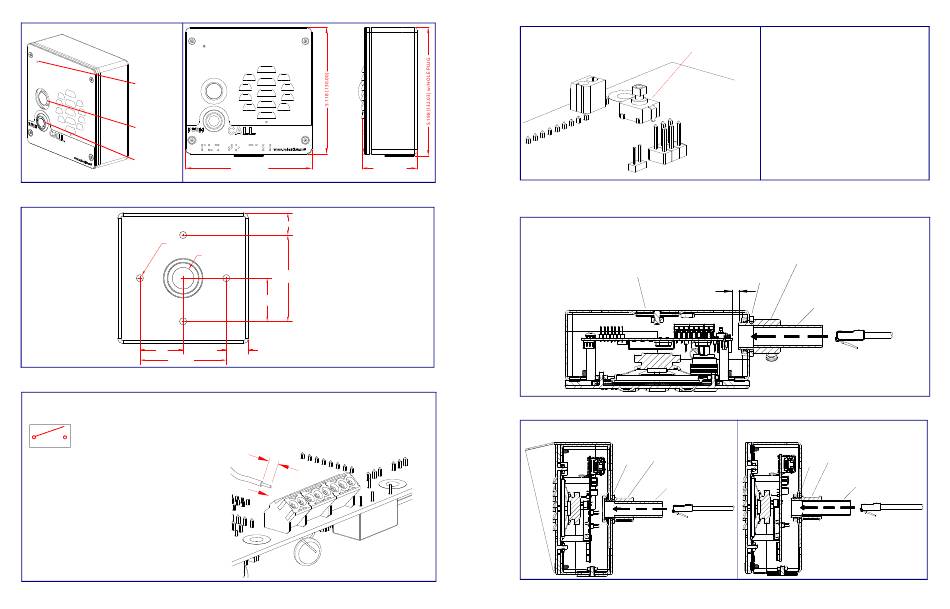

CyberData 011410 Installation Quick Reference page 2

Features Dimensions (Front and Side View)
Microphone
Hole
Camera
Call Button
DIMENSIONS ARE IN INCHES [MILLIMETER]
Dimensions (Rear View and Mounting Holes)
Dimensions are in Inches [Millimeter]
ø0.280 [ø7.11]
(4 Places)
1.690
[42.93]
3.380 [85.85]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
5.118 [130.00] 2.252 [57.21]
0.869 [22.07]
ø0.854 [ø21.69]
3.380
[85.85]
1.690
[42.93]
0.869 [22.07]
Terminal block can accept up to 16 AWG wire.
Tool required for terminal block screw:
Size #00 Phillip Drive Screwdriver
Wire(s) in
Tin Wire to 0.25 inch [6mm]
931332A Quick Reference
RTFM Button
RTFM Button (SW1)
Conduit Mounting Restrictions (Side Entry)
*More installation and mounting
information is illustrated in the
Operations Guide.
Hole Plug
Assembly
5/32"
Gap
Conduit Mounting Restrictions (Rear Entry)
With Shroud
1/2" Conduit
Add
Spacer Connector
Here (Not Provided)
1/2" Conduit
(Not Provided)
Network
(Not Provided)
Quick Reference
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
1/2" Set Screw
Connector
(Not Provided)
Spacer
1/2" Conduit
(Not Provided)
Network
Cable
(Not Provided)
Without Shroud
1/2" Conduit
Add
Spacer Connector
Here
(Not Provided)
1/2" Conduit
(Not Provided)
Cable
(Not Provided)
931332A © 2017, CyberData Corporation, ALL RIGHTS RESERVED
Network
Cable
