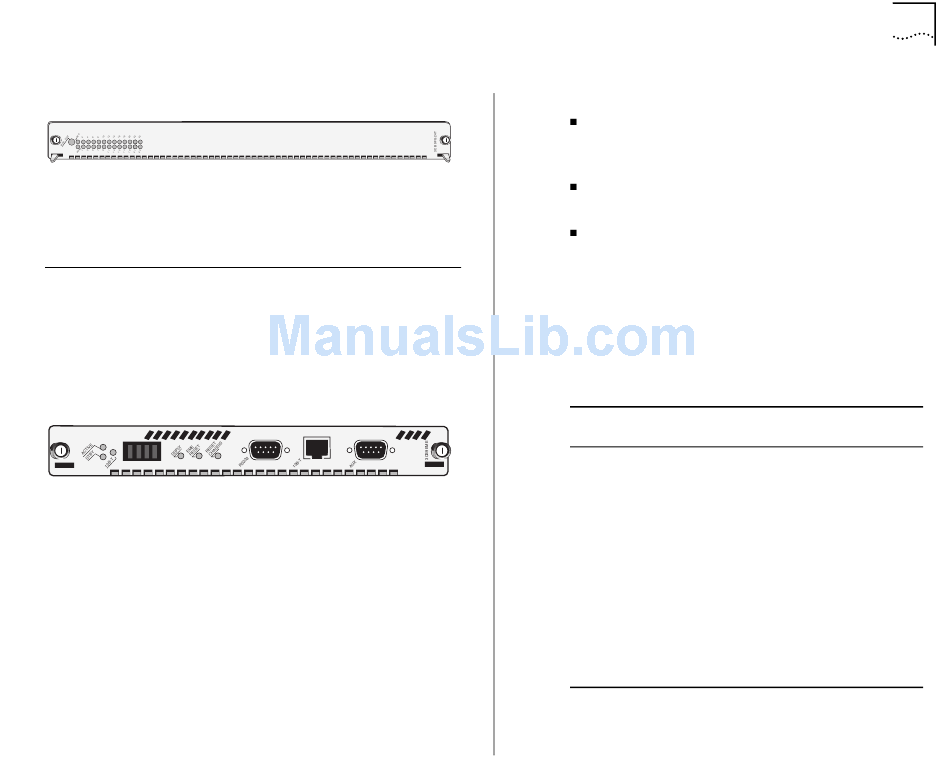

Figure 7 Front Panel of 24-port Switch Fabric Module
To learn more about this module, refer to the 24-Port
Gigabit Ethernet Switch Fabric Module Quick Start
Guide on the Online Manuals CD-ROM.

Management Modules

The Switch 4007 chassis contains two slots
(slots 8 and 9) for Management Modules
management modules. These modules do not occupy
module payload slots. Figure 8 shows the front panel.
Figure 8 Front Panel of EME Management Module
You can communicate through an RS-232 connector
(for connection to a terminal) or an RJ-45 port (for
connection to Ethernet networks) on the front panel
of the EME to configure and report on switch and
module operation.
The Switch 4007 EME is an SNMP-based network
management module that allows you to configure
and manage the Switch 4007 chassis and modules.
The EME backplane services generate, control, and
monitor the Switch. The management modules
provide power management functions.
You manage the switch through:
The EME command interface, which you access
through the serial port, or through SNMP (Simple
Network Management Protocol).
The Switch 4007 Web Management suite of
applications.
3Com Transcend Network Control Services.
An EME combines the functions of a management
module and a controller module. You can install a
second EME to provide standby management support
if the first EME is unavailable for any reason.
Table 3 describes the EME access mechanisms.
Table 3 EME Access Mechanisms
.
Access Allows you to
Mechanism
Terminal Connect directly to the
command interface.
Modem Access the command
interface from remote
sites.
IP Access the command
interface using the
rlogin or telnet
commands, or use an
external SNMP
management
application to
communicate with the
embedded SNMP agent.
Management Modules 21
Using
RS-232 serial
port
Auxiliary RS-232
serial port
10BASE-T
Ethernet port
assigned to an IP
interface
