TIMTER™ Multi-mode Digital Telemetry Transmitter

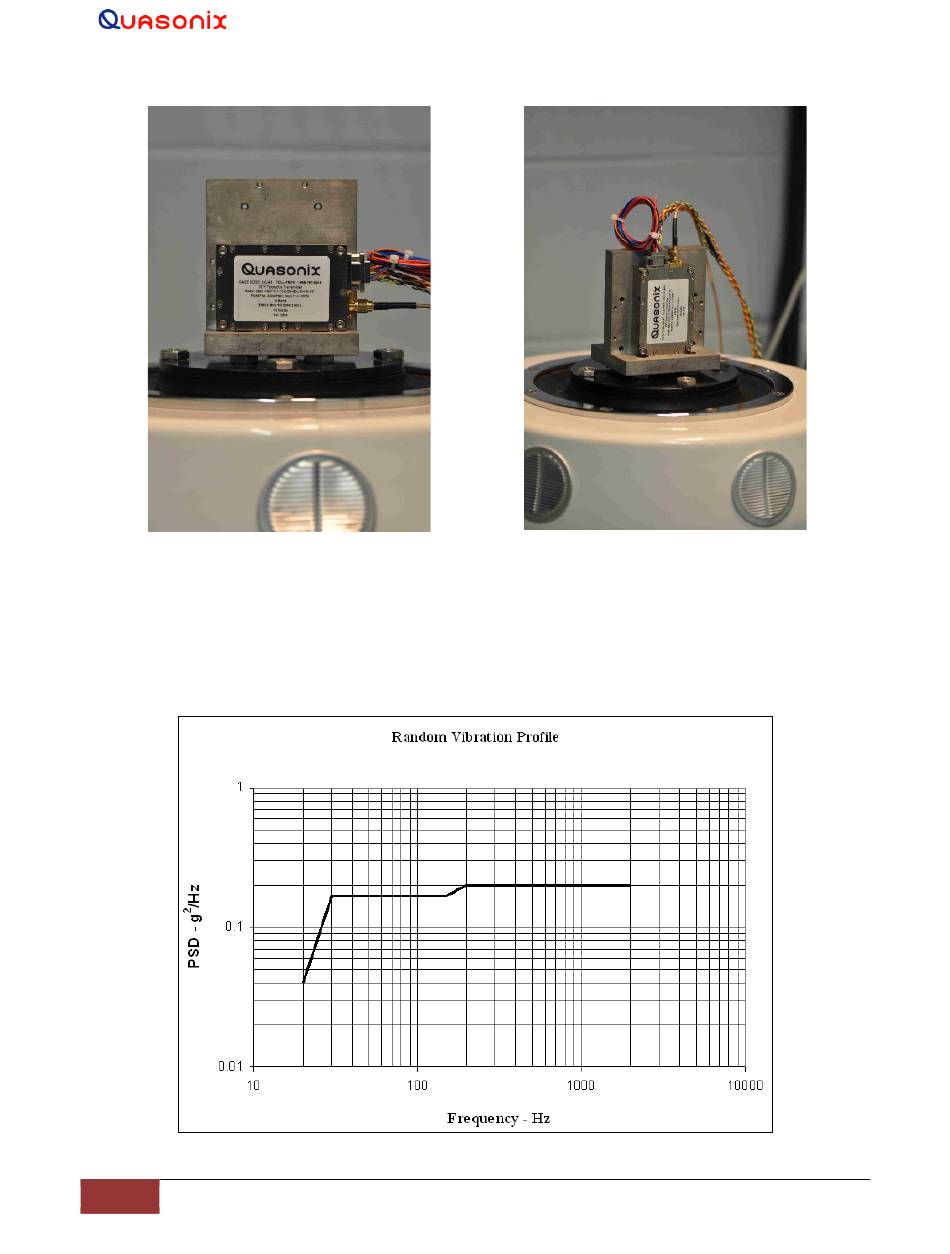

Figure 30: TIMTER™ Mounted for X-axis Testing
Figure 31: TIMTER™ Mounted for Y-axis Testing

6.10.1 Vibration Testing

Each transmitter is subjected to the random vibration spectrum depicted in Figure 32 and Table 20 prior to shipment.
Figure 32: TIMTER™ Vibration Profile
87
Quasonix, Inc.
