6.10.2 Shock Testing

In addition to vibration testing, the UUT was subjected to shock pulses, as follows:
•
Type:
•
Level:
•
Duration:
Application: Three (3) shocks in each direction of the three (3) orthogonal axes both positive and negative, for 18
shocks total
The plots of the positive and negative pulses in each of the three axes are shown in the following figures:
90 Quasonix, Inc.
TIMTER™ Multi-mode Digital Telemetry Transmitter
Half-sine
60 g
5 milliseconds

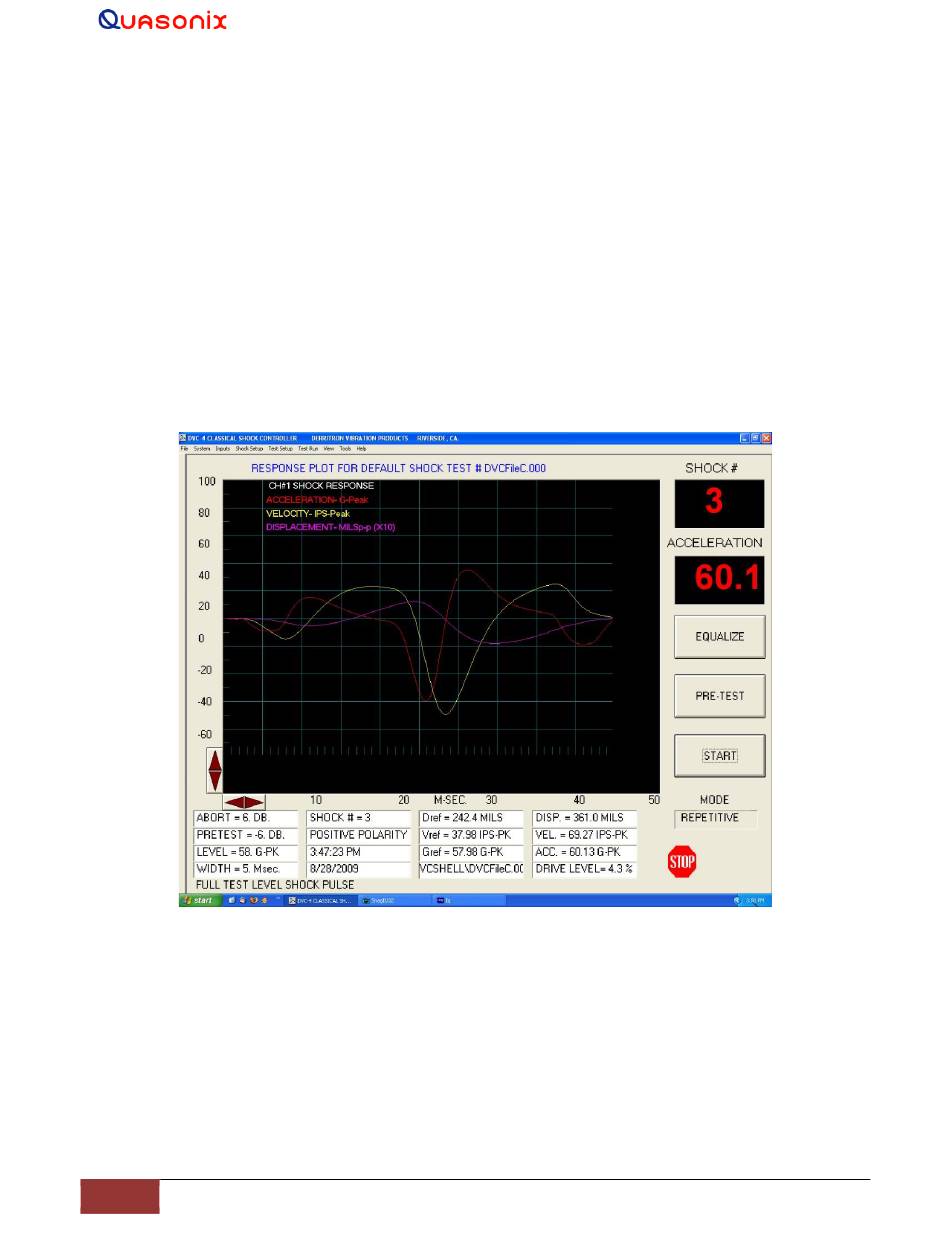

Figure 36: Shock Pulse, Z-axis Positive
