Scs Cloud - Bartec Syscom MR3000 Series User Manual

53
5.3.8.

SCS Cloud

The MR3000 can be connected to the SCS (Syscom Cloud Software) to easily visualize the data
coming from it. The web address of the cloud software is http://scs.bartec-syscom.com. The MR
must have internet connection to communicate with the SCS. Please see the related tutorial video
"LINK A MR3000 TO THE SCS" on the dedicated
peering MR3000-SCS.
In case of connection MR3000-SCS, the data are stored in a Swiss server.
NOTE: The Cloud option and the FTP send option (Section 5.3.7) can be activated in parallel.
NOTE: When using the SCS, please set the MR time to NTP (refer to Section 5.3.2).
In the Service subsection, it is possible to see if the connection to the SCS is enabled or not.
In the Peering subsection, a code generated from the SCS cloud must be inserted. This allows
connecting the MR3000 to the SCS cloud software. The command "Unpeering" allows eliminating
the connection.
In the Synchronization subsection, the user can
check the synchronization status with the SCS
•
check the last synchronization to the cloud software
•
select the interval between two synchronizations with the cloud software.
•

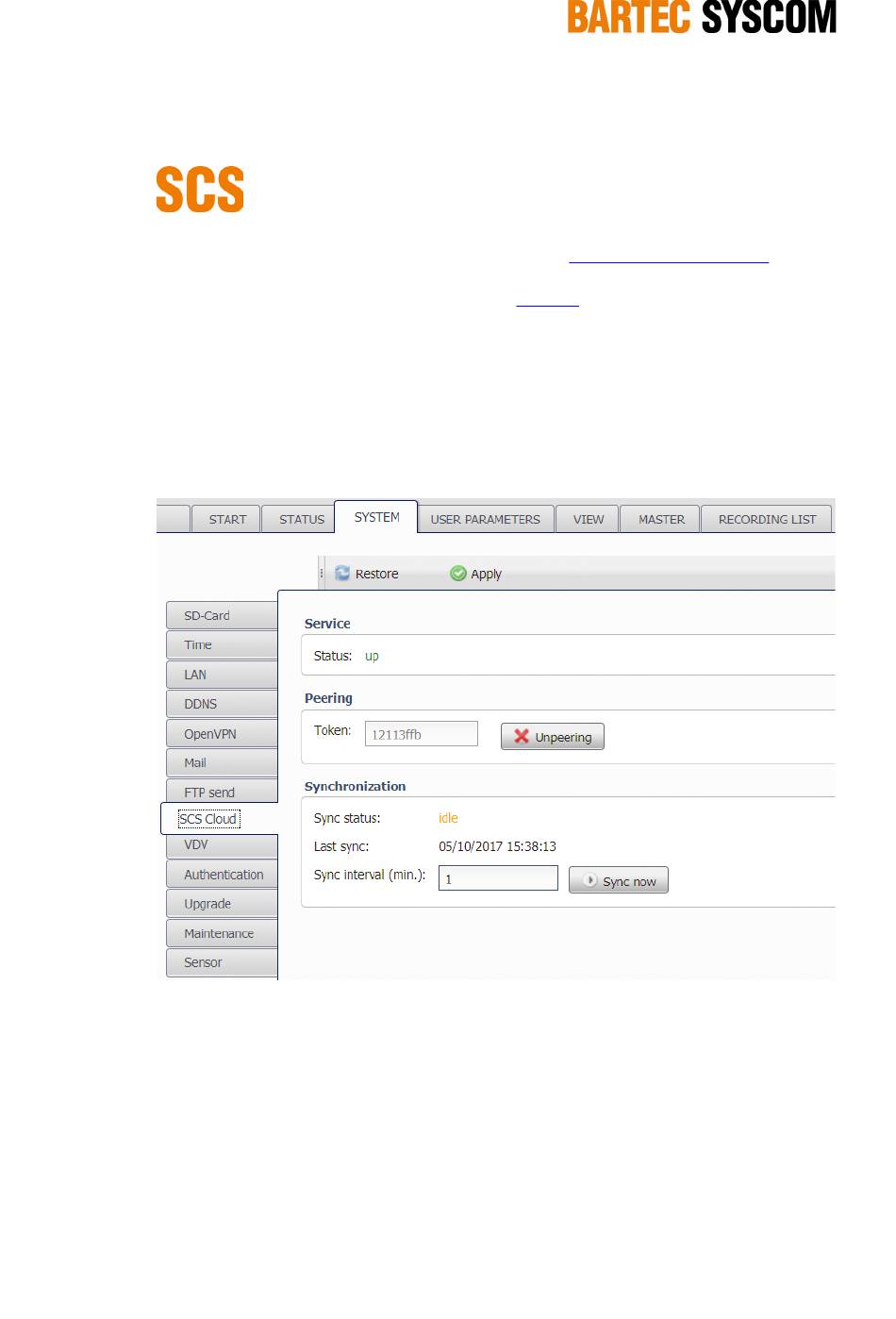

Figure 5.3.8. Subsection dedicated to the SCS Cloud software.
webpage to have more information about the
