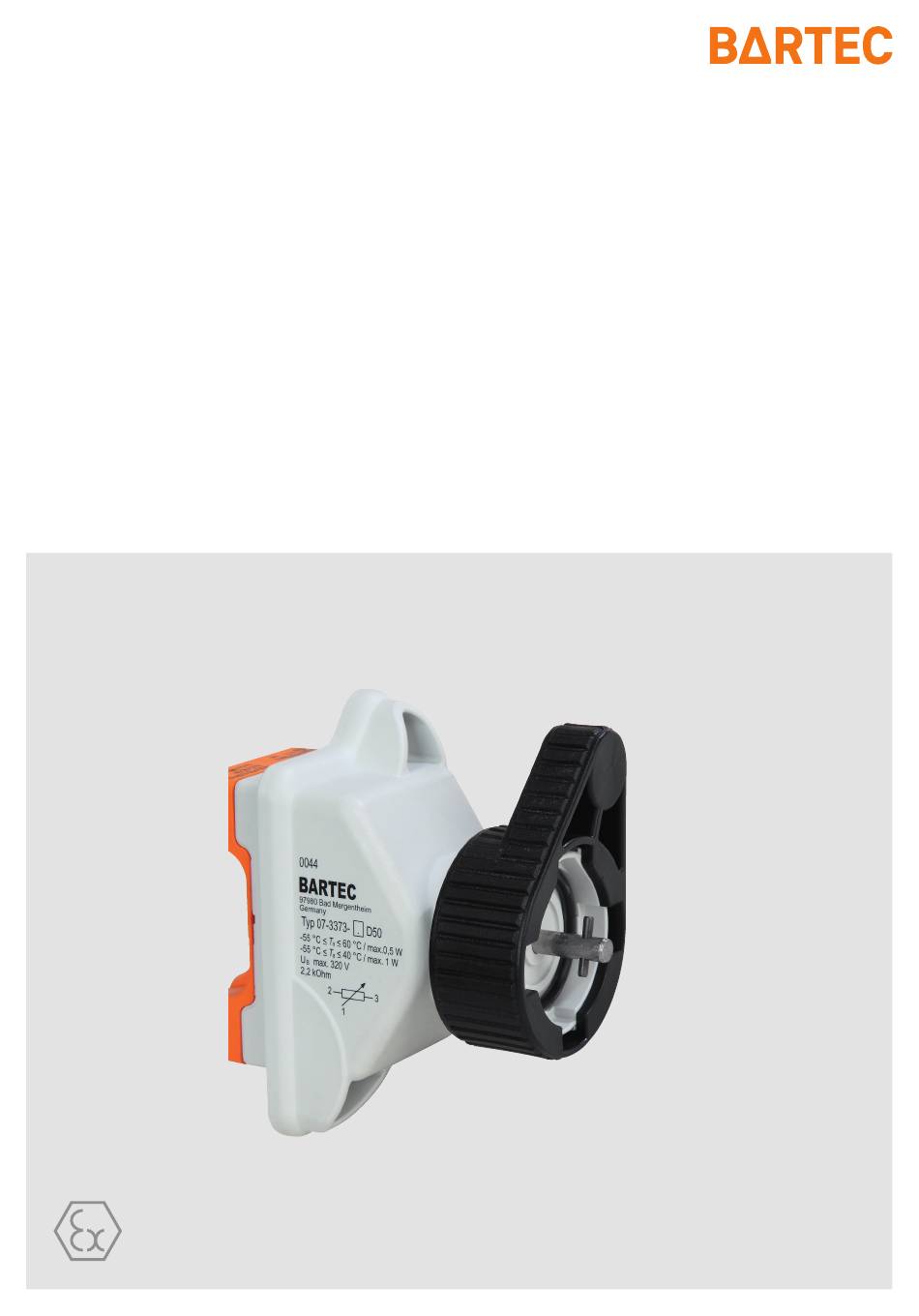

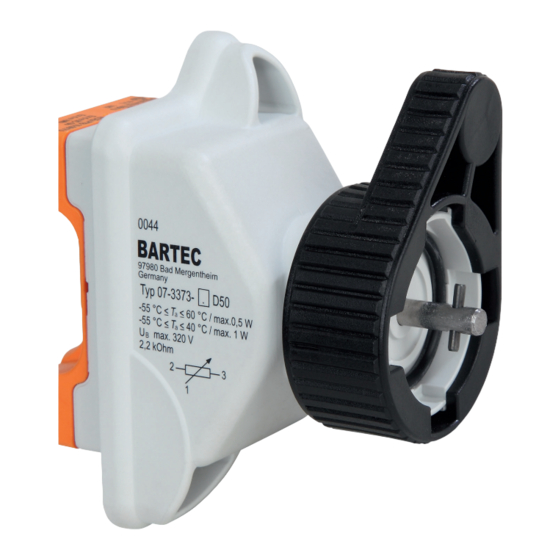

- Page 1 BARTEC OPERATIONAL INSTRUCTION ComEx Potentiometer flex For Local Control Stations and control Panels Type: 07-3373-4D*0 Technical data subject to change without notice. 01-3373-7D0003/A-08/2022-STVT-308487 Page 1/7...
- Page 2 BARTEC OPERATIONAL INSTRUCTION ComEx Potentiometer flex Explosion protection Notified Body Number 0044 For Local Control Stations Approved Body Number 2503 and control Panels Marking ATEX / UKEX II 2G Ex db eb IIC Gb I M2 Ex db eb I Mb...
- Page 3 • Store the ComEx flex potentiometer in a dry place. BARTEC from liability for defects or any further liability. Only service technicians who are authorized to work in potentially Assembly, Installation explosive atmospheres may do any of the assembly, disassembly,...
- Page 4 BARTEC OPERATIONAL INSTRUCTION Installation Terminal assignment: For fitting into enclosure In hazardous areas in groups I and II the ComEx potentiometer flex must be used: – In appropriate enclosures with “Ex e” increased safety type of protection. The clearances and creepage distances under IEC/EN 60079-7 Section 4.3, Section 4.4 and Table 1 must be...
- Page 5 A defective actuator can be taken off the potentiometer and replaced by a functioning actuator of the same type. NOTE For original parts, contact the firm of Bartec GmbH at the service address. Accessories, Spare Parts NOTE...
- Page 6 BARTEC OPERATIONAL INSTRUCTION Konformitätsbescheinigung Attestation of Conformity Attestation de conformité 01-3370-7C0001-F Nous BARTEC GmbH Max-Eyth-Straße 16 97980 Bad Mergentheim Germany erklären in alleiniger declare under our sole attestons sous notre seule Verantwortung, dass das Produkt responsibility that the product responsabilité que le produit...
- Page 7 BARTEC OPERATIONAL INSTRUCTION BARTEC BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Germany Tel.: +49 7931 597-0 info@bartec.com bartec.com Technical data subject to change without notice. 01-3373-7D0003/A-08/2022-STVT-308487 Page 7/7...
