- Page 1 TECH400...
-
Page 2: Table Of Contents
Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 TABLE OF CONTENTS QUICK REFERENCE GUIDE If necessary, charge by plugging in charger - the unit will power up and show charging status via the battery symbol and charger SPECIFICATION/ FUNCTIONALITY connected icon. - Page 3 Bartec supplied ‘Kings’ ‘plug top’ charging unit. The full capacity of the battery is reached only after a few charge/discharge cycles. This capacity reduces as the battery comes to the end of its life. Contact Bartec for advice on replacement.
-
Page 4: Specification/ Functionality

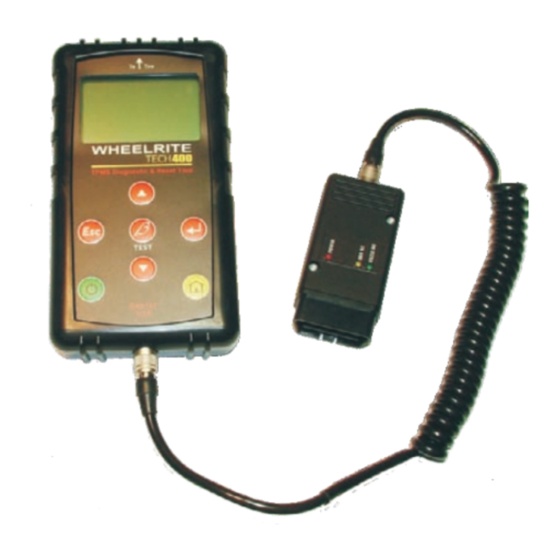

Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 To connect the cable, lightly grip the rubber boot as shown: SPECIFICATION/ FUNCTIONALITY The Tech 400 is a hand held tool to test wheel sensors used on automobile Tire Pressure monitoring systems. An LCD display and keypad allows rapid configuration of the tool to ensure compatibility with all TPM (Tire Pressure Monitor) types commonly experienced. -
Page 5: Part Names And Functions
TPM was at fault. On/ Off key Leaving Audit Mode connection To leave the Audit mode and re-enable the Bartec Tech 400 point simply remove the USB lead. Tech 400 AF-DSW-0001-01... -
Page 6: Power On/Off Sequence
POWER ON/OFF SEQUENCE The Bartec Tech 400 will produce a single file for each type of TPM The Tech400 is powered up using the ON/OFF key. Part that has been read, and a separate record within that file for To power the unit up press this key for approx 2 each unique TPM of that type. - Page 7 The first number- x- indicates the item number selected. The second- y- indicates the The Bartec Tech 400 can be connected to a pc for one of two total number of items available. purposes...
- Page 8 TPM Not Found Response USB Indicator If the search period expires without reading a TPM then the Bartec This status line indicator confirms the Tech 400 is connected to the Tech 400 will emit a single Audible Beep and indicate on the USB port of a personal computer.
- Page 9 This status line Indicator confirms that TPM data is available for viewing on the screen (using the View TPM Data command from the main menu) or via a PC when the Bartec Tech 400 is in its Mass Storage Device mode (See Audit System on page 23).
- Page 10 Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 In 4 wheel mode, TPM data is briefly displayed just prior to the Charger Connected Indicator arrow on the vehicle icon moving round to prompt that the next wheel should be tested.
-
Page 11: Results/ Test Display Area And Description
When the activation is aborted, the user will be returned to the previous menu. TPM Found Response If a TPM of the indicated type is found, then the Bartec Tech 400 will emit a series of tones that follows the pattern of received data. RF indicates... -
Page 12: Menu System
Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 MENU SYSTEM READING A TPM Once a test mode has been decided upon - ( see page 5), the The Tech 400’s menu system provides a hierarchy of instructions mechanics of testing a TPM are as follows:- and commands. - Page 13 Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 Main Menu Settings Menu This is the main screen- providing access to the main functional When this is selected, the next screen gives settings options items of the Tech 400. The options are as follows:- •...
- Page 14 Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 All the TPM data is available for examination or printing from a pc This is an information line stating the current operation via the USB port. See the PC connection section of this document mode –...
- Page 15 Tech 400 User Guide R5 4/1/08 Tech 400 User Guide R5 4/1/08 If the Tech 400 is in 4 wheel mode, results are displayed in the order Select by Year LF, RF, RR, and LR. E.g. View TPM Data (Results) Menu This menu- when selected- gives direct access to specific screens that display the TPM data.
