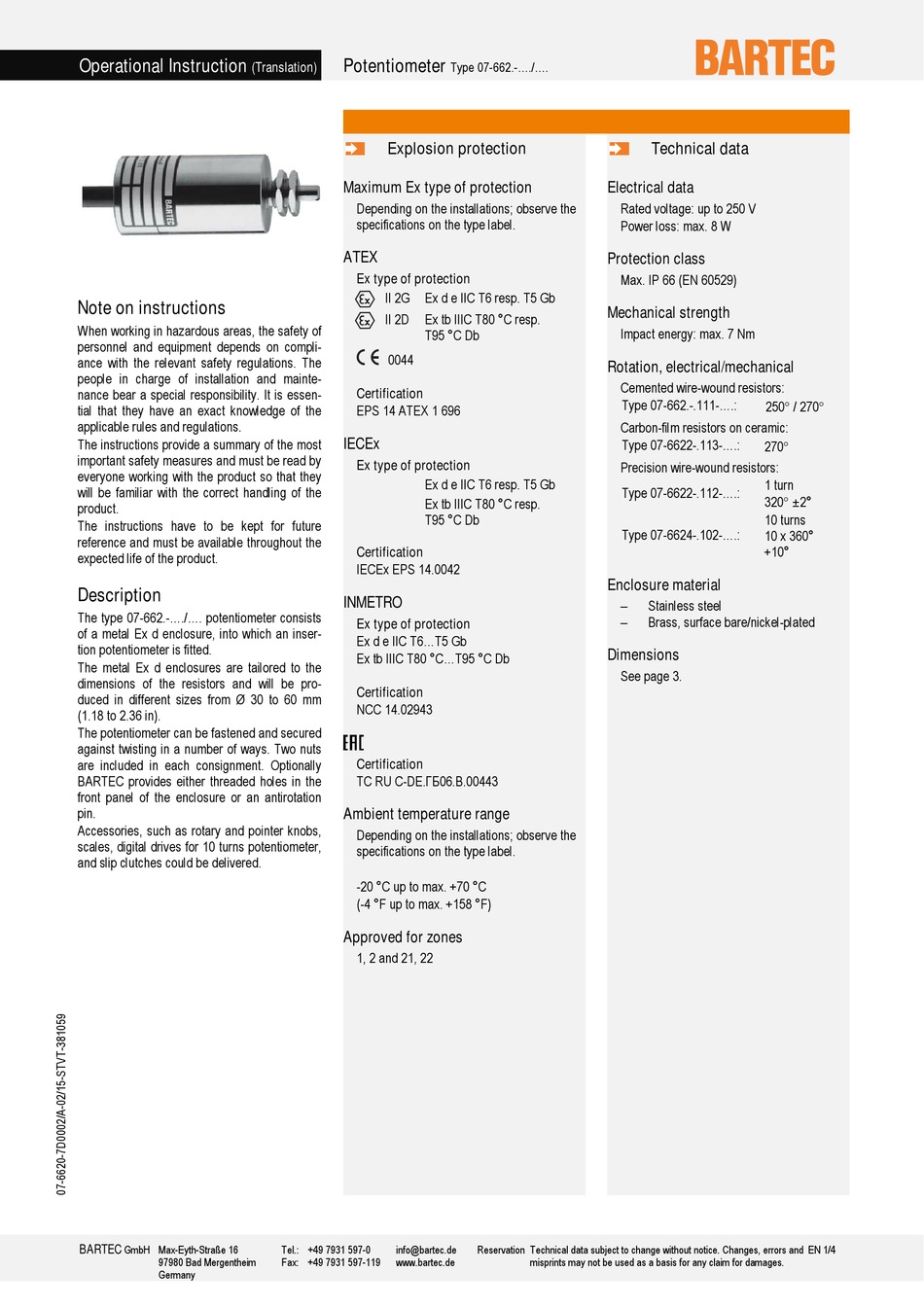

Bartec 07-662 Series Operational Instruction

Operational Instruction
(Translation)
Note on instructions
When working in hazardous areas, the safety of
personnel and equipment depends on compli-
ance with the relevant safety regulations. The
people in charge of installation and mainte-
nance bear a special responsibility. It is essen-
tial that they have an exact knowledge of the
applicable rules and regulations.
The instructions provide a summary of the most
important safety measures and must be read by
everyone working with the product so that they
will be familiar with the correct handling of the
product.
The instructions have to be kept for future
reference and must be available throughout the
expected life of the product.
Description

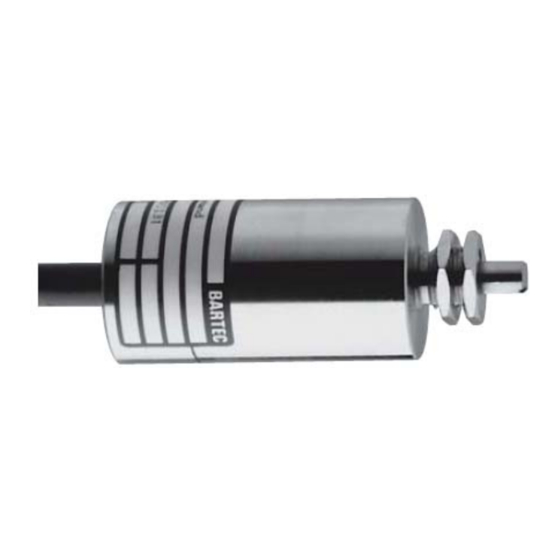

The type 07-662.-..../.... potentiometer consists
of a metal Ex d enclosure, into which an inser-
tion potentiometer is fitted.
The metal Ex d enclosures are tailored to the
dimensions of the resistors and will be pro-
duced in different sizes from Ø 30 to 60 mm
(1.18 to 2.36 in).
The potentiometer can be fastened and secured
against twisting in a number of ways. Two nuts
are included in each consignment. Optionally
BARTEC provides either threaded holes in the
front panel of the enclosure or an antirotation
pin.
Accessories, such as rotary and pointer knobs,
scales, digital drives for 10 turns potentiometer,
and slip clutches could be delivered.
BARTEC
GmbH Max-Eyth-Straße 16
97980 Bad Mergentheim
Germany
Potentiometer
Type 07-662.-..../....
Explosion protection
Maximum Ex type of protection
Depending on the installations; observe the
specifications on the type label.
ATEX
Ex type of protection
II 2G Ex d e IIC T6 resp. T5 Gb
II 2D Ex tb IIIC T80 °C resp.
T95 °C Db
0044
Certification
EPS 14 ATEX 1 696
IECEx
Ex type of protection
Ex d e IIC T6 resp. T5 Gb
Ex tb IIIC T80 °C resp.
T95 °C Db
Certification
IECEx EPS 14.0042
INMETRO
Ex type of protection
Ex d e IIC T6...T5 Gb
Ex tb IIIC T80 °C...T95 °C Db
Certification
NCC 14.02943
Certification
TC RU C-DE.ГБ06.В.00443
Ambient temperature range
Depending on the installations; observe the
specifications on the type label.
-20 °C up to max. +70 °C
(-4 °F up to max. +158 °F)
Approved for zones
1, 2 and 21, 22
Tel.: +49 7931 597-0 info@bartec.de
Fax: +49 7931 597-119 www.bartec.de
Technical data
Electrical data
Rated voltage: up to 250 V
Power loss: max. 8 W
Protection class
Max. IP 66 (EN 60529)
Mechanical strength
Impact energy: max. 7 Nm
Rotation, electrical/mechanical
Cemented wire-wound resistors:
Type 07-662.-.111-....:
Carbon-film resistors on ceramic:
Type 07-6622-.113-....:
Precision wire-wound resistors:
Type 07-6622-.112-....:
Type 07-6624-.102-....:
Enclosure material
Stainless steel
–
Brass, surface bare/nickel-plated
–
Dimensions
See page 3.
Reservation Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
250 / 270
270
1 turn
320 ±2°
10 turns
10 x 360°
+10°
EN 1/4
