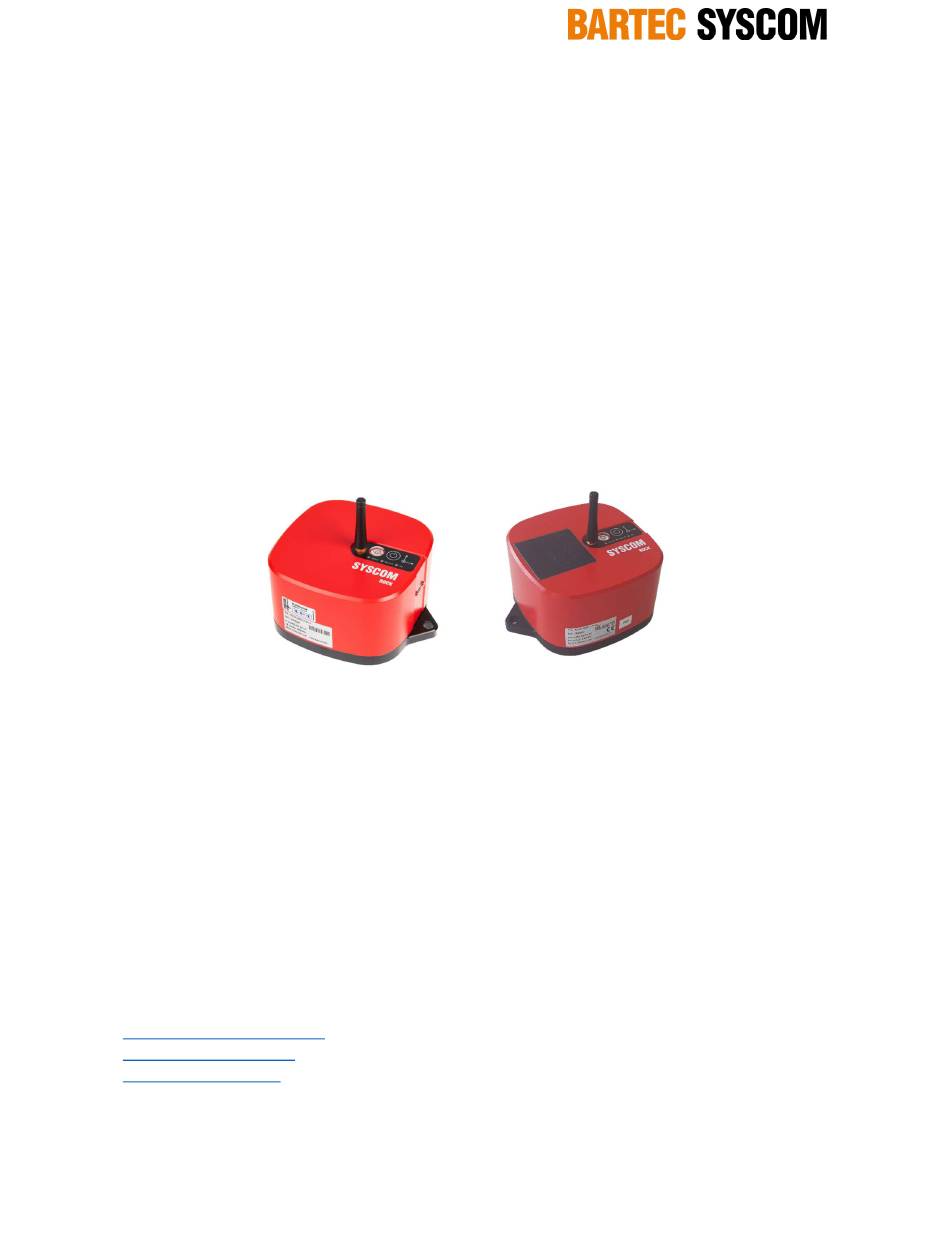

- Page 1 User Manual ROCK User manual V1.2, August 2019/bjt © SYSCOM Instruments SA Rue de l’Industrie 21 1450 Sainte-Croix Switzerland Phone : +41 24 455 44 11 support@bartec-syscom.com www.bartec-syscom.com https://rock.syscom.ch/ 1 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 2: Table Of Contents
3.4.1 Status / State of Health ....................18 3.4.2 General settings ......................18 3.4.3 Acquisition settings ....................... 19 3.4.4 Alarm settings ........................ 21 3.4.5 Advanced settings ......................22 Reporting ..........................23 2 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... - Page 3 BACKGROUND tab ......................... 27 Maintenance ..........................28 Monitoring with the ROCK & SCS ..................... 29 Safety instructions ........................30 Instructions ..........................30 Declaration of conformity for ROCK device ................33 Credentials ..........................34 3 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 4: Introduction
Fully managed by Syscom Cloud Software (SCS) Compliance to worldwide standard (refer to list in §1.3) Suitable for permanent monitoring Lowest cost of ownership Embedded solar panel in option Refer to ROCK datasheet for complete technical specifications. 4 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 5: Event Recording
This trigger level is setup in the SCS. An event length is defined as following: pre-event time + event time + post-event time. TRIGGER LINE PRE-EVENT EVENT POST-EVENT Figure 1: Event recording 5 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 6: Background Recording
Main markets for the ROCK are related to civil engineering applications, such as: Industrial vibrations Construction site monitoring Tunneling Truck and rail traffic Blasting monitoring Model verification Vibration compliance standards: Australia AS2187-2 Austria ÖNORM S 9020 6 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... - Page 7 Norway NS8176, NS8141 Portugal NP2074 Spain UNE22-381 Sweden SS 4604866, SS025211, SS4604861 Switzerland SN640312a The Netherland SBR A, B United Kingdom BS5228, BS7385-2 USA RI8507, OSMRE, ISEE (vibration only) User defined standards 7 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 8: Hardware
2 Hardware 2.1 Mechanical overview 2.1.1 ROCK Main ROCK features: Figure 3: ROCK general overview Refer to below chapters for more detailed information. 8 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 9: Rock Solar
The solar panel for ROCK is suitable for outdoor usage. Depending of the sunlight, it may increase the autonomy of the device by more than 6 months. Figure 5: ROCK with embedded solar panel 9 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 10: Accessories
Mounting plate with levelling screws Wall mounting plate, 1 fixation point 13100020 13100021 3 pointed screws for mounting plate 13100001 Carrying case for up to 4 ROCK 74710129 Anti-theft field cover 90001016 10 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... - Page 11 USB charger 5V DC (EU plug) without cable USB Charger (USA plug) without cable 87000317 87000318 Remote LTE – Cat M1 antenna with 2 m cable Micro USB 1.8 meter power cable 87000321 81000631 11 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 12: Keyboard
ROCK device have to be setup using the SCS, refer to §3.4. 2.3 Status LED Refer to Figure 6. 3 LEDs are available, giving important device conditions. 12 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 13: Record Led
A power bank 5V DC can also be Figure 7: USB connector Connected for extended autonomy. It is IP67 and protected by a plastic cap to avoid dust inside. Type micro USB AB. 13 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 14: Battery / Autonomy
Each ROCK is calibrated from factory in a lab using reference sensors traceable to national standards. Refer to country specific regulations and QA procedures for relevant guidelines. Syscom calibration center list can be found here: http://www.syscom.ch/services/calibration-form/ 14 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 15: Syscom Cloud Software
3 Syscom Cloud Software The SCS (https://scs.bartec-syscom.com/) is a cloud software able to process dynamic vibration data from any Syscom vibration device, especially the ROCK. Refer to the below main screens once logged in the software. HOME: homepage of an SCS account. From this screen, a global overview of the monitoring is available. -
Page 16: Pool Management
“IDLE POOL” ready for monitoring. Drag and drop the ROCK to a project or “Assign” it to a project. Refer to next chapter. Figure 10: Device assignment to a project 16 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 17: Project Management
SHARING field, where “Read / Write” or “View only” access can be given to some project stakeholders. An “FTP Forward” server can be setup for data backup and automated conversion into ASCII files. 17 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 18: Rock Parametrization
The following fields can be modified: Device name Device comments Once the setup is done, push on “Save” button to acknowledge the changes or “Cancel” to revert back to the original setup. 18 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 19: Acquisition Settings
Peak: user selectable The values for X, Y, Z axis during the given [Period] will be saved continuously and uploaded to the SCS based on the Synchronization parameter, refer to “Advanced settings”. 19 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... - Page 20 Refer to DIN 45669-1 standard for additional information on KBFTi mode. Refer to SBR A Dutch standard for more information as well. Figure 15: ROCK acquisition setting 20 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 21: Alarm Settings
User defined (based on trigger recording) Background based: (background mode “enable”) Vector Sum SBR A Alarm 2 (enable / disable) Same options as above, independent selection for Alarm 2 Figure 16: ROCK Alarms settings 21 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 22: Advanced Settings
Device configuration A configuration name should be given and this allows to “Save” or “Load” typical device configurations. It is then easier to setup multiple ROCK devices with always the same parameters. 22 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 23: Reporting
In case of notifications (refer to next chapter), the PDF report will be sent by Email to the relevant stakeholders. The process is quick and occurs after the post-event recording. 23 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... - Page 24 (daily, weekly, monthly periods) with all information using the active checkboxes in the below screen. In case of notifications (refer to next chapter), the PDF report will be sent per Email to the relevant stakeholders. Figure 19:Reporting 24 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 25: Notifications
A periodic PDF report will be sent per Email based on the background periodicity defined under Set reporting. Note: no SMS notification will be sent for the background reporting. Figure 20: Notifications 25 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 26: Data Visualisation
Filtering options, manual reporting and norm comparison, data exporting and event visualization are easily performed. Refer to the SCS user manual or the tutorials for more information. Note: ROCK and MR3000 can monitor in the same project. Figure 21: Event table 26 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 27: Background Tab
ASCII file to any third party software. A reporting button related to the selected period is also available. Refer to the SCS user manual or the tutorials for more information. Figure 22: Background continuous monitoring graph 27 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 28: Maintenance
2 years, your local partner should be contacted for inspection and recalibration Contact your local partner or Syscom for any trouble. A diag report (refer to §2.2) may be required for proper situation evaluation and assessment. 28 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 29: Monitoring With The Rock & Scs
The following example will highlight the steps required for a typical construction site monitoring: A) Create a free account into the SCS https://scs.bartec-syscom.com. B) Request a ROCK from Syscom or a local partner. It will be delivered quickly and automatically assigned to this SCS account. -
Page 30: Safety Instructions
7 Safety instructions 7.1 Instructions Thank you for choosing this Bartec Syscom product. Before operating it, please read this manual thoroughly and retain it for future reference. Note - Before operating the product, please read "Safety instructions". - Pictures and illustrations used in this manual are for reference only and may differ from actual product appearance. - Page 31 This product is a vibration monitoring instrument. It is equipped with a 4G LTE interface. The 4G LTE interface is mainly intended for data transfer. This product uses internationally harmonized frequencies. This product may be used in a domestic or industrial environment. 31 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
- Page 32 Hand the battery over the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product, please contact the company where you purchased the product. 32 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019...
-
Page 33: Declaration Of Conformity For Rock Device
7.2 Declaration of conformity for ROCK device 33 / 34 www.bartec-syscom.com Copyright © Bartec Syscom 2019... -
Page 34: Credentials
User manual electronic form can be found here: http://firmware.syscom- instruments.com/download/manuals/ Refer to Bartec General Terms and Conditions for Deliveries and Services. All information are subject to modification without notice. All information in this user manual are © SYSCOM INSTRUMENTS SA, registered under SWISS laws.
