2.4.8.

Relays

The relays (optional) can be configured in the software (see section 4.4.7). For an accurate electric
scheme, look Figure 2.4.8.
b)
2.4.9.

AC/DC converter

In Figure 2.4.9 it is possible to see the hardware structure and terminals related to the AC/DC
converter. If an external fuse is necessary or utilized, minimum requirements need to be considered
to avoid nuisance tripping of the circuit breaker. A minimum value of 10A B- or 6A C-Characteristic
breaker should be used.
a)

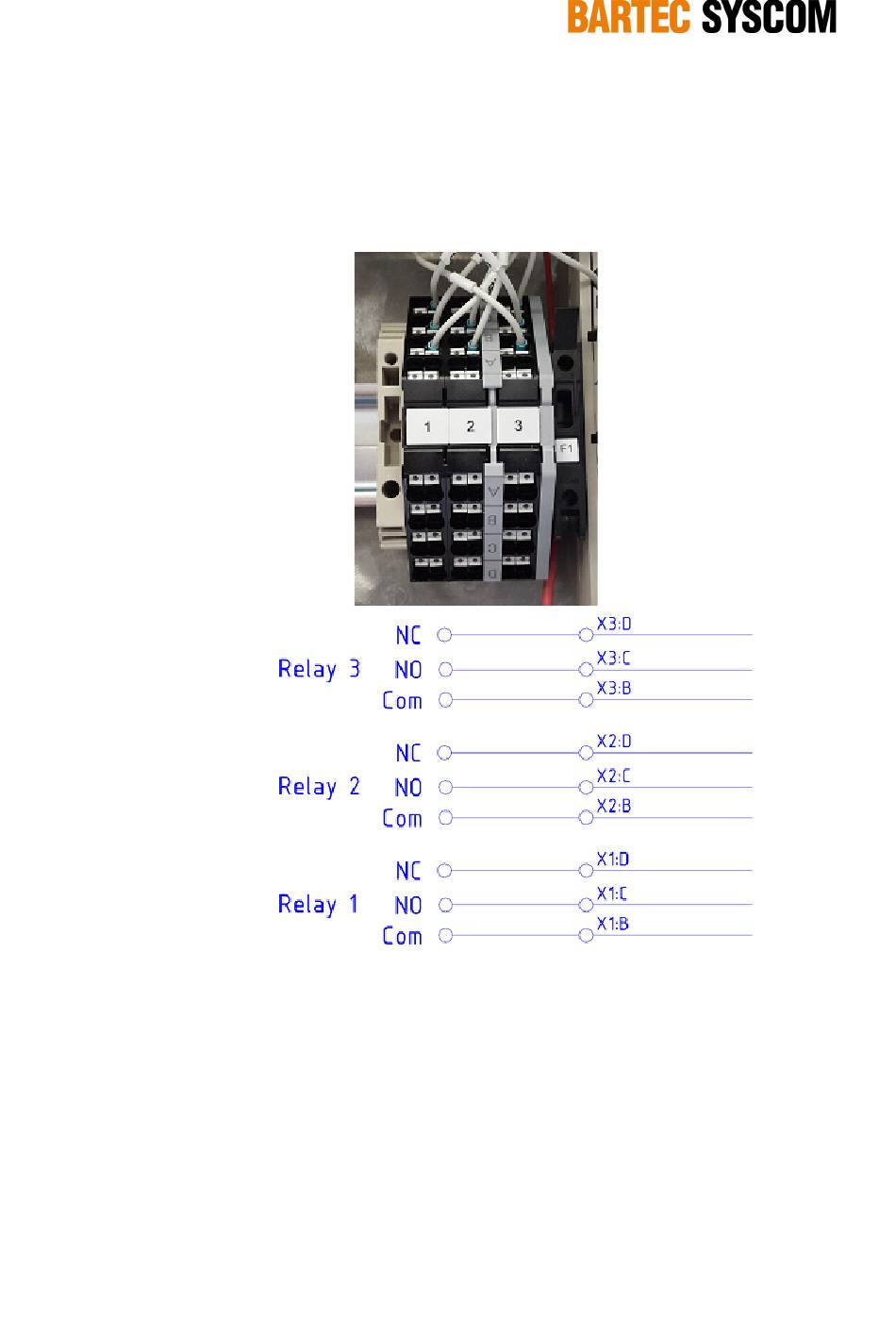

Figure 2.4.8. Terminal for relays (a) and electric scheme (b).
