7.1 INDICATOR LIGHT MOUNTING & WIRING
Many installations will use the DOWN relay for the MONITOR EXTENDED warning light or the
DOOR OPEN circuit.
1. Drill a 1/2" diameter hole in the dashboard for the panel light. Leave enough room for a
1-13/16" diameter label around the light or a 2" wide x 1-1/2" high label next to the light.
2. Apply one of the two warning labels and push the panel light through the hole in the
dash.
3. Remove the seal plugs from the DOWN relay normally closed (pin 3) and DOWN relay
common connection (pin 1) positions on the 6-position plug connected to the USER/
DOWN Relay cable.

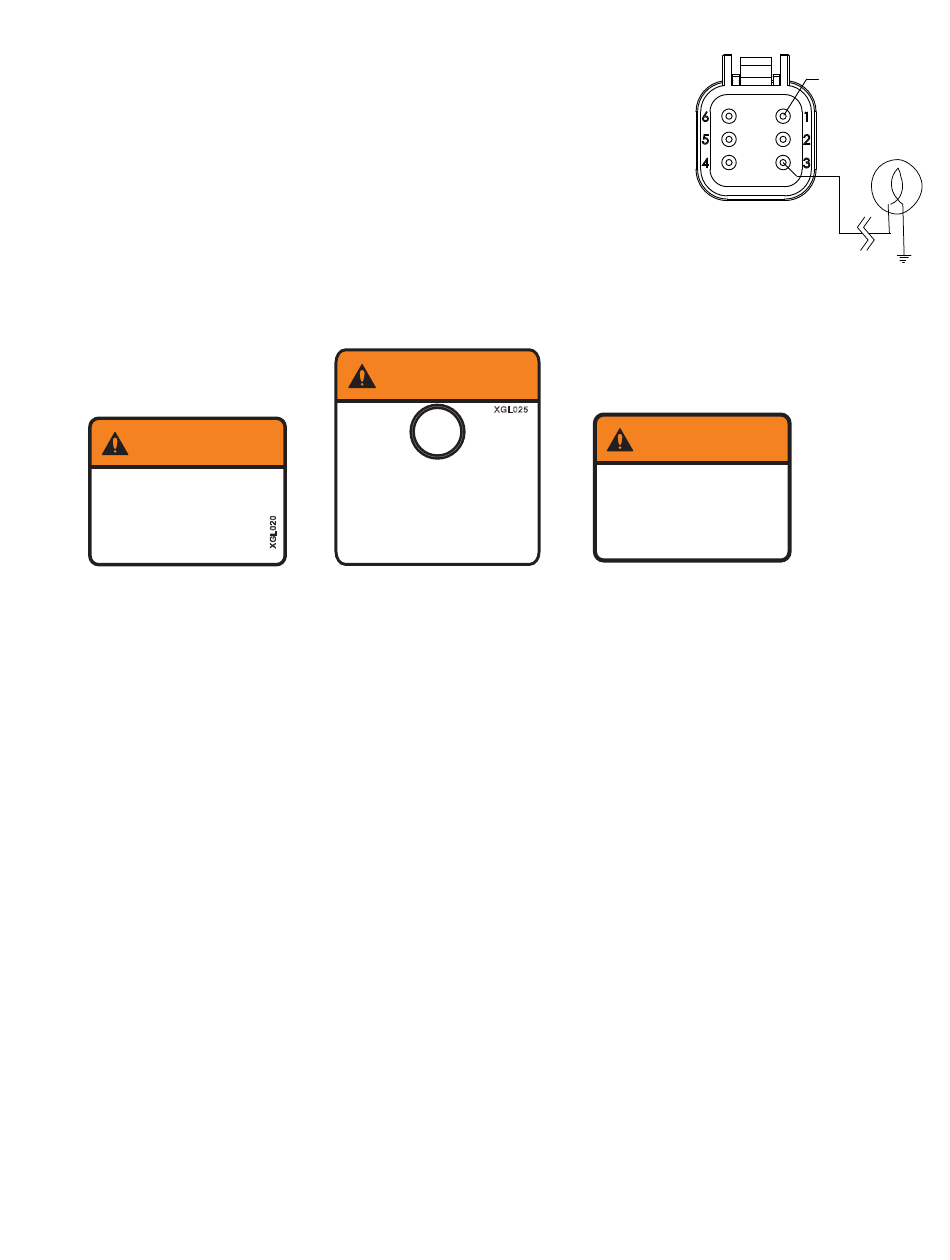

4. Connect the terminals on the panel light to DOWN normally closed position (pin 3) on
the 6-pin plug and chassis ground.
5. Connect a wire from the DOWN relay common connection (pin 1) position on the 6-pin
plug to the red voltage supply wire.
A set of warning labels is provided.
Attach the warning labels in the following areas:
WARNING
When Light is ON,
Deck Monitor is
EXTENDED.
Lower Before
Moving Vehicle.
Next to the indicator light
©Copyright Task Force Tips LLC 2004-2020
WARNING
XGL025
When Light is ON,
Deck Monitor is
EXTENDED.
Lower Before
Moving Vehicle.
Around the indicator light
Figure 7.0
21
MOUNT PANEL
LIGHT IN DASH
Figure 7.1
WARNING
Do Not Open Water Valve
Until Extend-A-Gun is Fully
EXTENDED.
Damage Will Occur.
XGL040
Near the water valve for the
deck monitor
LIX-530 March 17, 2020 Rev15
RED(+) FROM
VOLTAGE SUPPLY
