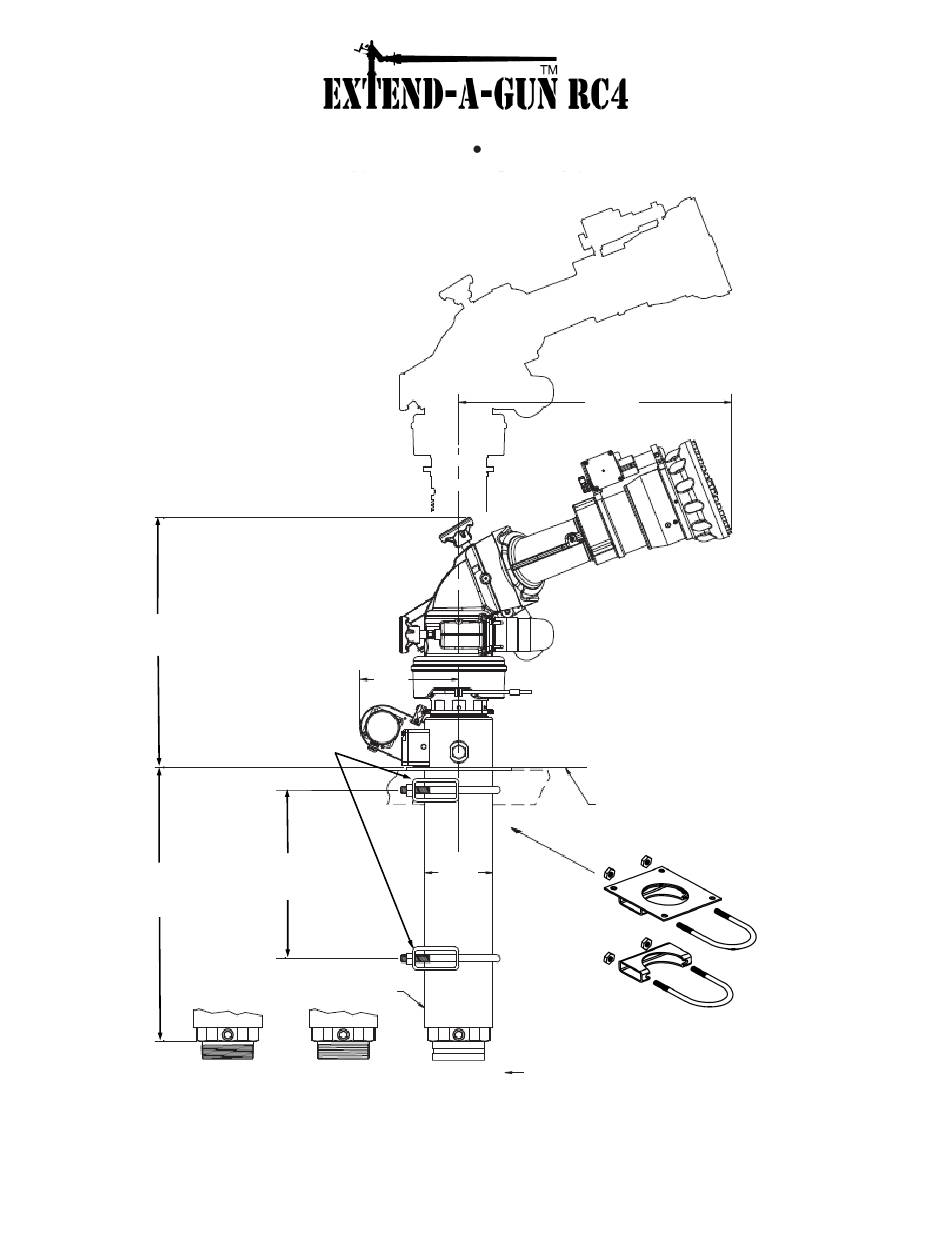

3.4 DIMENSIONS (CONTINUED)
SHOWN WITH TFT MASTER 2000 ERP
NOZZLE AND MONSOON RC MONITOR
21.7"
RETRACTED
*
17-3/4" (XGA42)
*
23-3/4" (XGA48)
*
- POSITION ADJUSTABLE BY U-BOLTS IN MOUNTING TUBE.
©Copyright Task Force Tips LLC 2004-2020
4" Remote Controlled Telescoping Waterway
XGA42: 12" Travel
8.5"
SADDLE BRACKET
TFT P/N XGB-53
SEE LOAD CHART
FOR DISTANCE
OUTER TUBE
4" NPTM 4" BSPM
XGA48: 18" Travel
EXTENDED
Ø 6"
4" VICTAULIC FROM PUMP
Figure 3.4B
8
23.6"
TRUCK SURFACE
ALTERNATE:
PLATE/SADDLE
TFT P/N XGB-43
