INSTALLATION

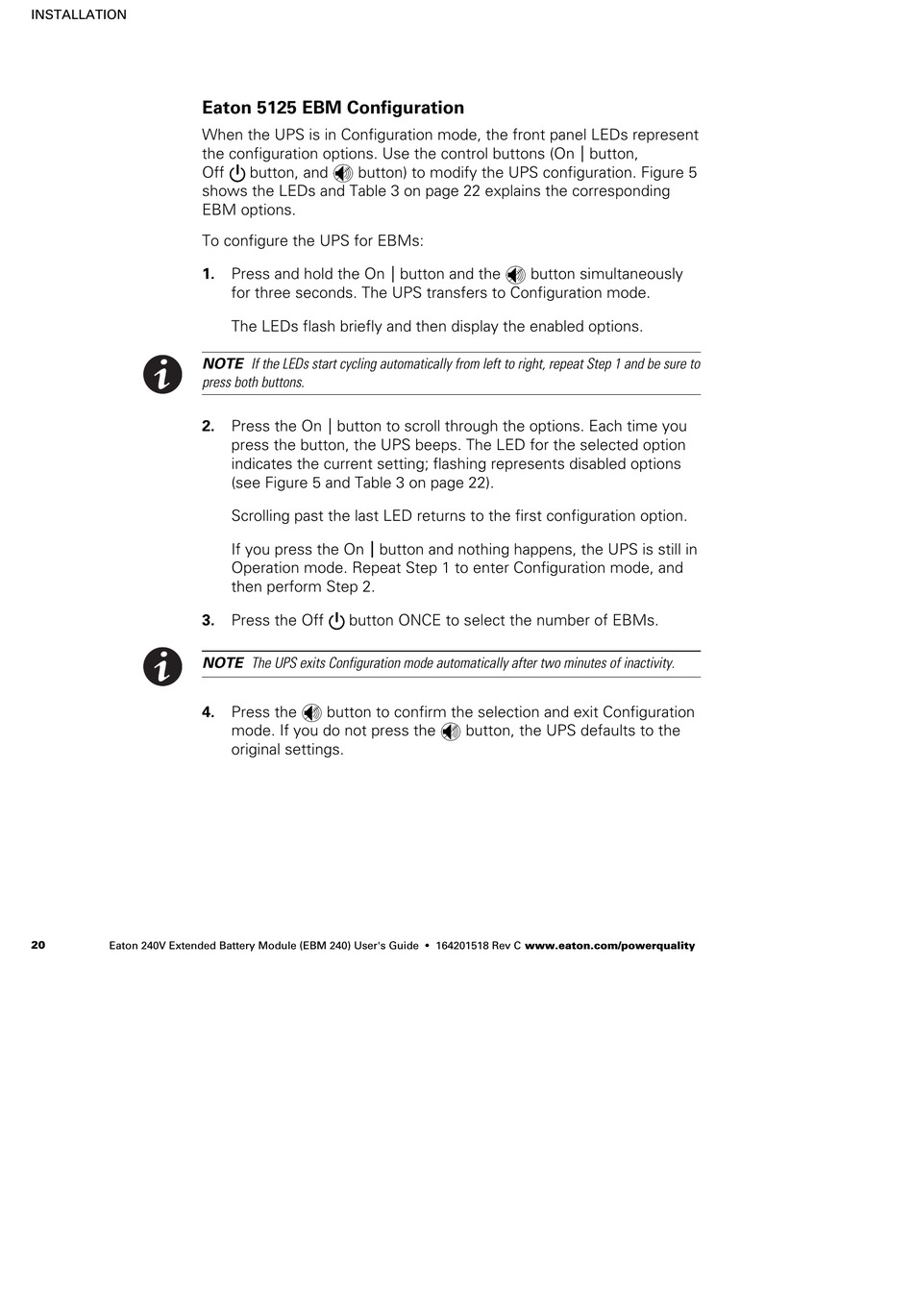

Eaton 5125 EBM Configuration

When the UPS is in Configuration mode, the front panel LEDs represent
the configuration options. Use the control buttons (On button,
Off
shows the LEDs and Table 3 on page 22 explains the corresponding
EBM options.
To configure the UPS for EBMs:
1.
NOTE If the LEDs start cycling automatically from left to right, repeat Step 1 and be sure to
press both buttons.
2.
3.
NOTE The UPS exits Configuration mode automatically after two minutes of inactivity.
4.
20 Eaton 240V Extended Battery Module (EBM 240) User's Guide
button, and button) to modify the UPS configuration. Figure 5
Press and hold the On button and the
for three seconds. The UPS transfers to Configuration mode.
The LEDs flash briefly and then display the enabled options.
Press the On button to scroll through the options. Each time you
press the button, the UPS beeps. The LED for the selected option
indicates the current setting; flashing represents disabled options
(see Figure 5 and Table 3 on page 22).
Scrolling past the last LED returns to the first configuration option.
If you press the On button and nothing happens, the UPS is still in
Operation mode. Repeat Step 1 to enter Configuration mode, and
then perform Step 2.
Press the Off button ONCE to select the number of EBMs.
Press the button to confirm the selection and exit Configuration
mode. If you do not press the
original settings.
button simultaneously
button, the UPS defaults to the
