Connecting Power Adaptor - GE Mini Telemetry Operation And Maintenance Manual

Chapter 4: Installation and Setup
Step

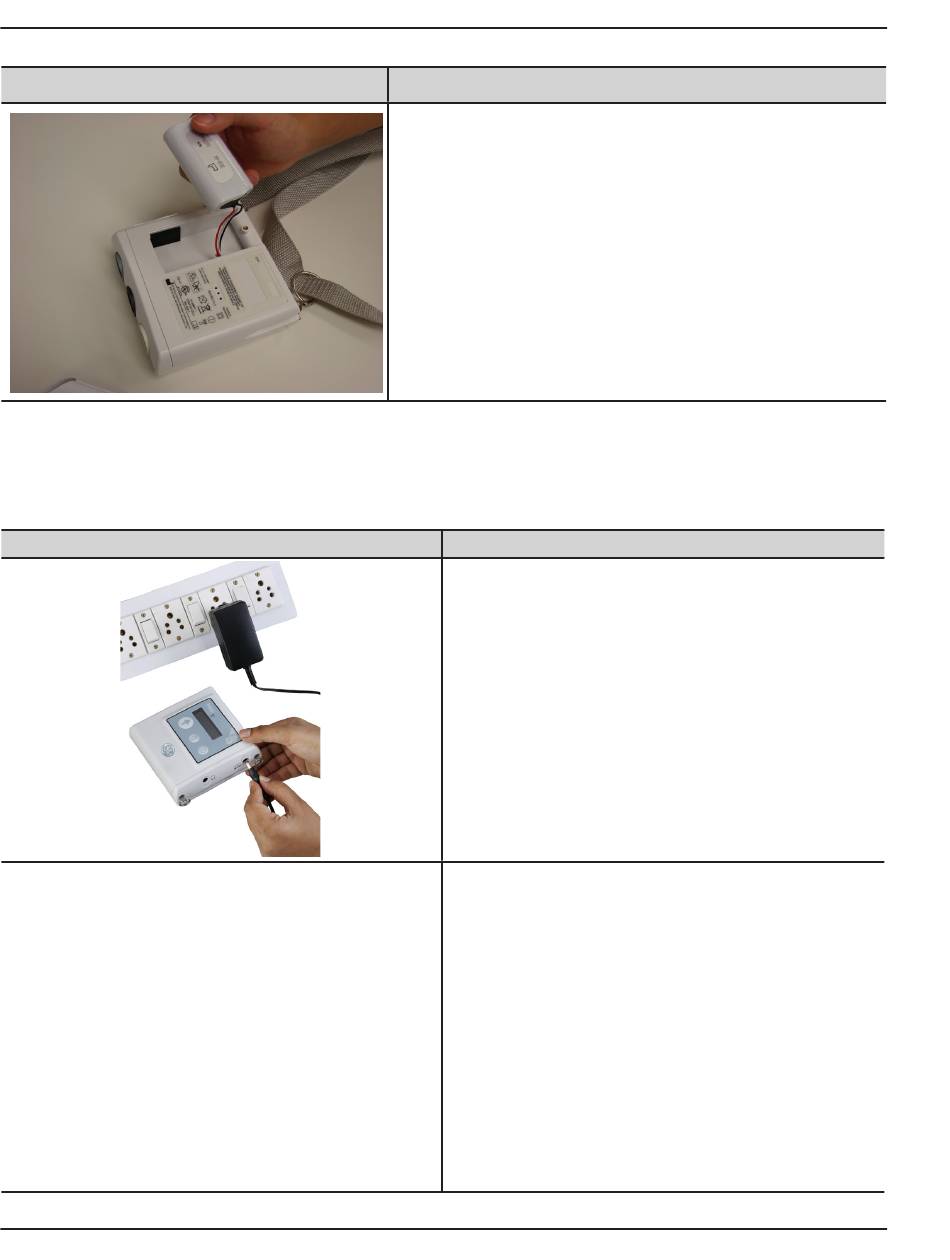

Connecting Power Adaptor

Perform the following steps to connect the power adaptor.
Step
22
2049809-001 Rev B
Instructions
3. Connect the battery to the Battery Connector on the
circuit board. Perform step 2 and 1 in reverse order to
complete the battery installation.
Instructions
Instructions to connect the power adaptor:
1. Turn off the transmitter.
2. Locate the DC inlet jack and connect the DC
adaptor and plug the adaptor to AC mains
socket.
3. Switch on the AC mains with specified AC voltage
indicated in the specifications. Charge the internal
battery for 4hrs before using the Transmitter.
Check for battery charge/full indication on the
display.
IMPORTANT : Power Adaptor —Use only the appropriate
country specific plug attachments to the Adaptor. The
Mini Telemetry system's Adaptor comes with global
plugin options.
